1852820
| Manufacturer | |
| Description | Heavy Duty Power Connectors VC-TFS 8 Conn Terminal Block F 8 POS 3.5mm Screw RA Cable Mount 10A CONN CONTACT 8POS SCREW CLAMP VC-TFS8 Phoenix Contact Variocon 系列 2行 8针 直角 插座 电源连接器 , 电缆安装 |
| Category |
Business
| Tradename | PLUSCON Device | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 8A |
| Voltage - Input (Min) | 160V | ||
Mechanical
| Depth | 21.7 | Pitch | 3.5 |
| Height | 26.6 | Weight | 0.258205 oz |
| Packaging | Bulk | Wire Gauge | 16-28 |
| Orientation | 直角 | Termination | Screw |
| Mounting Type | Cable Mount | Connector Type | Insert |
| Contact Finish | Tin | Number of Rows | 2 |
| Insertion Force | Female | Contact Material | Brass |
| Housing Material | Polyamide | Length - Overall | 15 |
| Termination Rows | 螺钉 | Termination Style | Screw |
| Number of Contacts | 8 | Number of Positions | 8 |
| Wire Gauge or Range - AWG | 28-16 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | Variocon | CAD Drawing | 3D CAD 模型 |
| Product Type | Inserts | ||
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
0803922
Phoenix Contact
Printers SK U/5 0 WH: UNBEDRUCKT UNPRINTED MARKER CARDS Connector Accessories Marker Card Polyester White Phoenix Contact SK 系列 标记标签

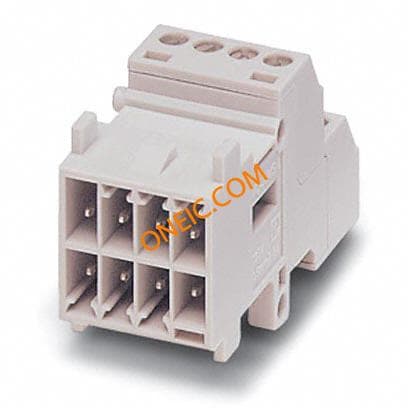

1854022
