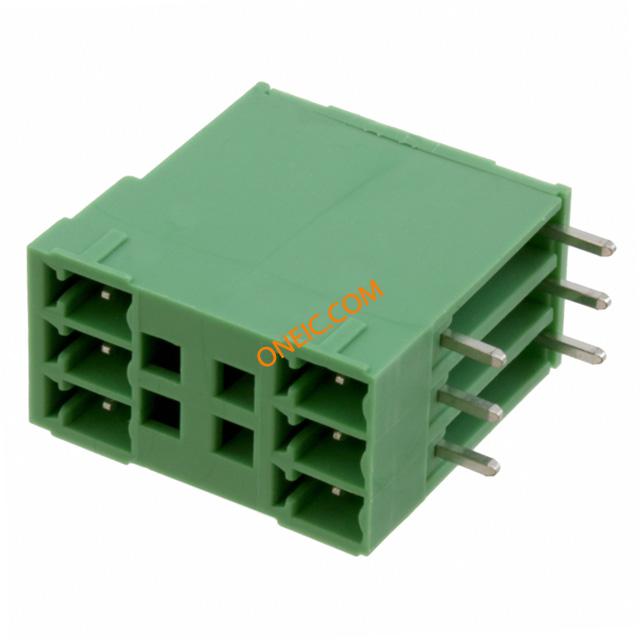

1843088
| Manufacturer | |
| Description | プラグ着脱可能ターミナルブロック 3.81mm 3P HDR DBL LV Conn Wire to Board HDR 6 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 3.81MM Header for PCB plug connector MCD 1,5/ 3-G1-3,81 Pluggable Terminal Blocks 3.81mm 3P HDR DBL LV MCD15/3-G1-381 Terminal block; socket; male; angled; screws; 3.81mm; THT; ways:3 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Headers | Tradename | COMBICON Control |
| Part # Aliases | 1,5/ 3-G1-3,81 MCD | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Number of Poles | 3 |
| Current Rating (Max) | 8 A | Voltage - Input (Min) | 160V |
| Voltage - Supply (Min) | 160V | ||
Mechanical
| Color | Green | Depth | 21.9 mm |
| Pitch | 0.150" (3.81mm) | Height | 22.7 mm |
| Weight | 4.127054 oz | Packaging | Bulk |
| Orientation | angled | Termination | Solder |
| Pitch - Post | 3.81mm | Housing Color | Green |
| Mounting Type | Right Angle | Connector Type | male |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 2 | Locking Feature | screws |
| Housing Material | Polyamide | Length - Overall | 12.82 mm |
| Package Quantity | 10 | Connector - Cable | socket |
| Termination Style | Through Hole | Header Orientation | 90°, Right Angle |
| Number of Contacts | 6 | Number of Positions | 6 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | ||
Product Info
| Spg | 10 | Type | Wire to Board |
| Gender | HDR | Series | MCD |
| Number of Units | 1 | Number of Levels | 2 |
| Positions Per Level | 3 | ||
Documents & Media
PDF Document
