1832811
| Manufacturer | |
| Description | Pluggable Terminal Blocks MCVK 1.5/10-G-3.81 Conn Terminal Block F 10 POS 3.81mm Screw 8A PLUG TERM BLOCK 10POS 3.81MM Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 10, Assembly: DIN rail MCVK1,5/10-G-3,81 |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 1 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 8A | Voltage - UL | 300V |
| Current - IEC | 8A | Voltage - IEC | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | ||
Mechanical
| Color | Green | Depth | 26.7 |
| Pitch | 3.81 mm | Height | 27.8 |
| Length | 1.555" (39.50mm) | Weight | 0.506111 oz |
| Termination | Screw | Height (Max) | 1.051" (26.70mm) |
| Housing Color | Green | Mounting Type | DIN Rail |
| Contact Finish | Tin | Mounting Style | DIN Rail |
| Number of Rows | 1 | Housing Material | Polyamide |
| Length - Overall | 39.49 | Stripping Length | 7mm |
| Terminal - Width | 27.8mm | Termination Style | Plug Receptacles, Screw |
| Number of Contacts | 10 | Number of Positions | 10 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm2 | 0.14-0.5mm² | ||
Product Info
| Type | Terminal Block | Gender | F |
| Number of Levels | 1 | ||
Similar Parts

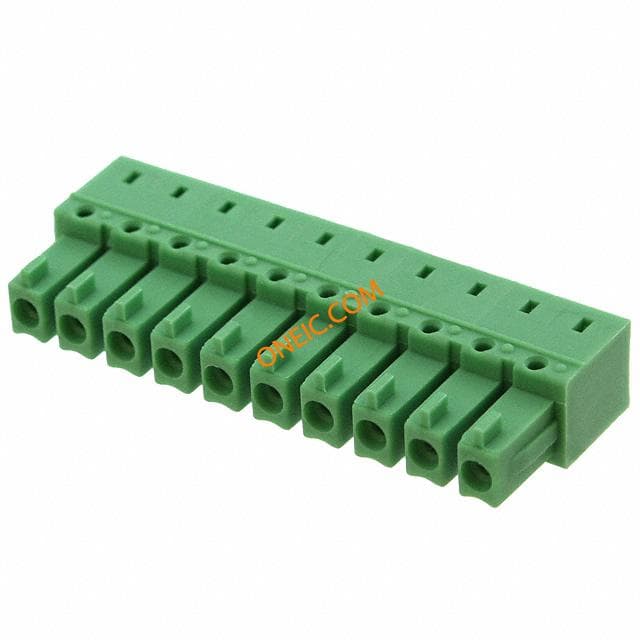

1862658
Phoenix Contact
Pluggable Terminal Blocks IMC 1.5/10-G-3.81 TERM BLOCK HDR 10POS R/A 3.81MM Header for PCB plug connector IMC 1,5/10-G-3,81 Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, ... Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, Metal surface: Sn, Assembly: Soldering HEADER,PITCH:3.81MM,POS10
1734634
Phoenix Contact
Terminal Block Tools & Accessories CODING SECTION CP-MSTB Connector Accessories Coding Section Is Inserted Into The Slot On The Plug Or Inverted Header Red TERM BLK PLUG CODE SECTION RED CP-MSTB KEYINGPROFILE,REDINSULATINGMATERIAL

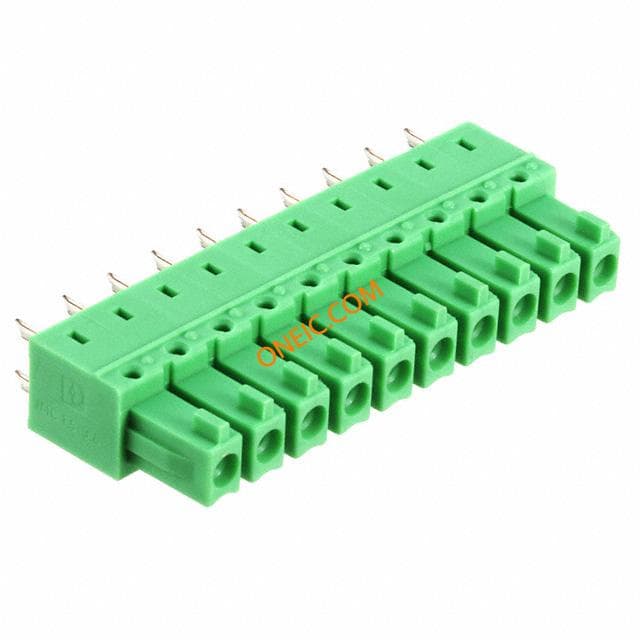

1875506
