点击放大查看
1830596
| Manufacturer | |
| Description | Pluggable Terminal Blocks 3.81mm 2P HDR W/FLG Conn Wire to Board HDR 2 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 2POS VERT 3.81MM Header for PCB plug connector MCV 1,5/ 2-GF-3,81 MCV15/2-GF-381 Phoenix Contact COMBICON MCV 系列 2路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A |
| Category |
Business
| Product | Headers | Tradename | COMBICON Control |
| Part # Aliases | 1,5/ 2-GF-3,81 MCV | Product Category | Pluggable Terminal Blocks |
| Standard Package | 250 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | Voltage - Supply (Min) | 160V |
Mechanical
| Color | Green | Depth | 7.25 mm |
| Pitch | 0.150" (3.81mm) | Height | 9.2 mm |
| Weight | 4 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Straight | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | 锡 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 18.01 mm | Termination Rows | 焊接 |
| Termination Style | Through Hole | Header Orientation | Vertical |
| Number of Contacts | 2 | Number of Positions | 2 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MCV | Features | Flange |
| Number of Levels | 1 | Positions Per Level | 2 |
Documents & Media
Similar Parts
1897542
Phoenix Contact
Pluggable Terminal Blocks QC 0 5/ 2-STF-3 81 Conn Terminal Block F 2 POS 3.81mm ST Panel Mount 6A TERM BLOCK PLUG 2POS STR 3.81MM Printed-circuit board connector QC 0,5/ 2-STF-3,81 QC05/2-STF-381 Phoenix Contact MINI COMBICON QC 系列 3.81mm 节距 2 路 母 绿色 插头, IDC端接
1845219
Phoenix Contact
Pluggable Terminal Blocks MC 1.5/2-STF-3.81 AU Plug Component, Pitch 3.81 mm TERM BLOCK PLUG 2POS STR 3.81MM MC15/2-STF-381AU
1759770
Phoenix Contact
プラグ着脱可能ターミナルブロック MC 1,5/ 2-ST F-3,81 BK Conn Terminal Block PL 2 POS 3.81mm Screw 8A TERM BLOCK PLUG 2POS STR 3.81MM Pluggable Terminal Blocks MC 1,5/ 2-ST F-3,81 BK MC15/2-STF-381BK

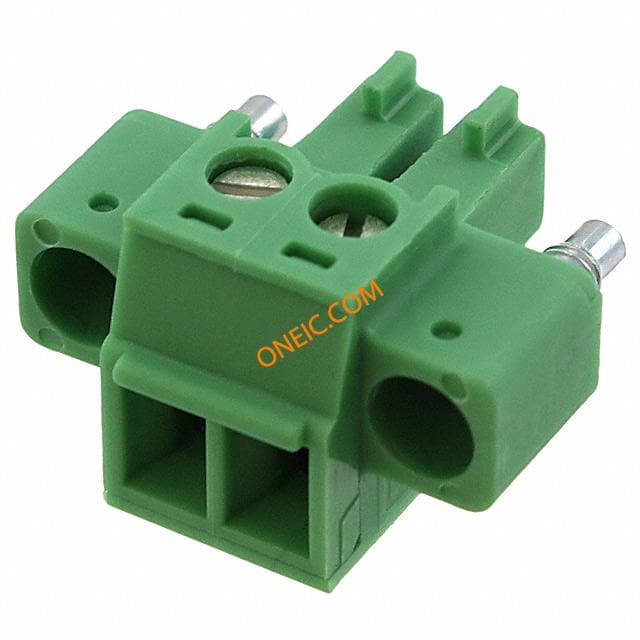

1827703
