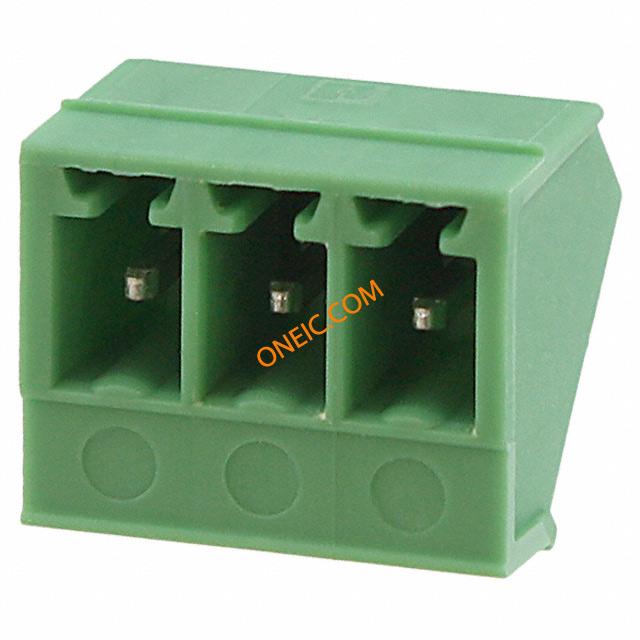

1827282
| Manufacturer | |
| Description | Pluggable Terminal Blocks 3.81 3P HEADER 45DEG Conn Wire to Board HDR 3 POS 3.81mm Solder Thru-Hole TERM BLOCK HDR 3POS 45DEG 3.81MM Header for PCB plug connector SMC 1,5/ 3-G-3,81 SMC15/3-G-381 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Headers | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | ||
Mechanical
| Color | Green | Depth | 13.1 |
| Pitch | 0.150" (3.81mm) | Height | 11 |
| Weight | 4.021232 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Through Hole | Contact Finish | Tin |
| Number of Rows | 1 | Housing Material | Polyamide |
| Length - Overall | 12.82 | Termination Style | Through Hole |
| Header Orientation | 45° | Number of Contacts | 3 |
| Number of Positions | 3 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | SMC | Number of Levels | 1 |
| Positions Per Level | 3 | ||
Documents & Media
PDF Document
