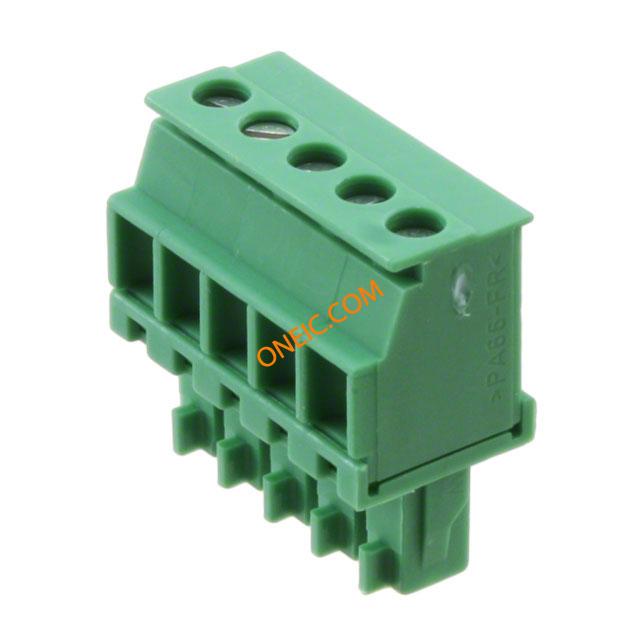

1827156
| Manufacturer | |
| Description | Pluggable Terminal Blocks 3.81 5P PLUG 90DEG Conn Terminal Block F 5 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 5POS 3.81MM Printed-circuit board connector MCVR 1,5/ 5-ST-3,81 Conn Terminal Blocks F 5 POS 3.81mm Screw ST Cable Mount 8A PLUG, FREE, R/A, 3.81MM, 5WAY Conn;TermBlk;Plug;Screw;5;3.81mm;30-14AWG;8A;300V;PA;M2 Phoenix Contact MINI COMBICON MCVR 系列 3.81mm 节距 5 路 母 绿色 直 插头, 电缆安装, 螺钉端接 |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
| Rad Hardened | No | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 8A | Voltage | 300V |
| Voltage Rating | 160 V | Current Rating (Max) | 8 A |
| Voltage - Input (Min) | 160V | Voltage - Supply (Min) | 160V |
Mechanical
| Color | Green | Depth | 10.4 mm |
| Pitch | 0.150" (3.81mm) | Height | 19.1 mm |
| Weight | 3.527396 oz | Packaging | Bulk |
| Wire Gauge | 14-30 AWG | Termination | Screw |
| Mounting Type | Cable Mount | Connector Type | :Rectangular Power |
| Contact Finish | Tin | Mounting Style | Cable |
| Number of Rows | 1 | Plug Wire Entry | 90° |
| Contact Material | :- | Housing Material | Polyamide |
| Length - Overall | 19.84 mm | Termination Style | Screw |
| Number of Contacts | 5 | Number of Positions | 5 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 28-16 |
| Wire Gauge or Range - mm2 | :1.5mm² | 1st Connector Mounting Type | :Cable |
Product Info
| Type | Terminal Block | Gender | F |
| Series | MCVR | Number of Levels | 1 |
| Positions Per Level | 5 | ||
