1806261
| Manufacturer | |
| Description | プラグ着脱可能ターミナルブロック GMSTB 2.5/ 6-GF-7.62 Conn Shrouded Header HDR 6 POS 7.62mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 7.62MM Header for PCB plug connector GMSTB 2,5/ 6-GF-7,62 Pluggable Terminal Blocks GMSTB 2.5/ 6-GF-7.62 GMSTB25/6-GF-762 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Headers | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 10A | Voltage | 300V |
| Voltage Rating | 400 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 630V | Voltage - Supply (Min) | 400V |
Mechanical
| Color | Green | Depth | 12 mm |
| Pitch | 0.300" (7.62mm) | Height | 8.6 mm |
| Weight | 6.172943 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Right Angle | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Housing Material | Polyamide | Length - Overall | 56.3 mm |
| Termination Style | Through Hole | Header Orientation | 90°, Right Angle |
| Number of Contacts | 6 | Number of Positions | 6 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | GMSTB | Features | Flange |
| Number of Levels | 1 | Positions Per Level | 6 |
Environmental
| Operating Temperature | -40C to 85C | ||
Documents & Media
Similar Parts
1973602
Phoenix Contact
Pluggable Terminal Blocks GMSTB 2.5/ 6-STF- 7.62BD:6-1QSO Misc Products TERM BLOCK PLUG 6POS STR 7.62MM GMSTB25/6-STF-762BD:6-1QSO
$66.0756
Details

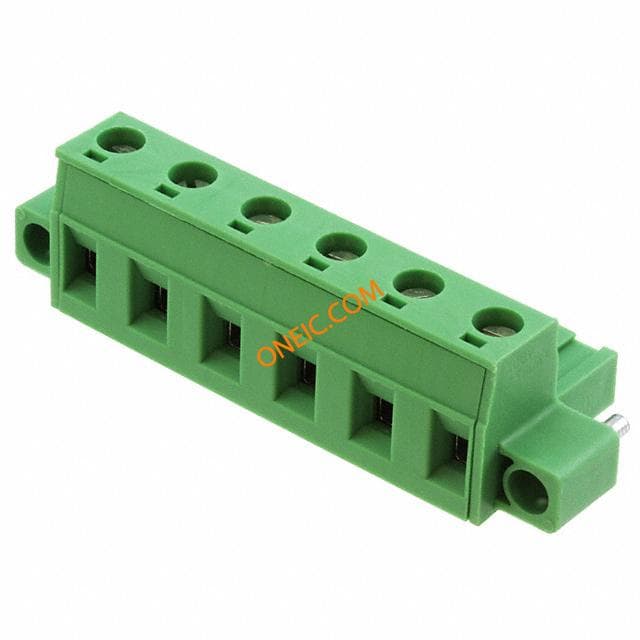

1858808
