点击放大查看
1804920
| Manufacturer | |
| Description | プラグ着脱可能ターミナルブロック 4P 7.62mm Conn Terminal Block F 4 POS 7.62mm Screw RA Cable Mount 20A TERM BLOCK PLUG 4POS STR 7.62MM Non-Fused Terminal Block Cable Mount 4 Way, Screw Down, 400V Pluggable Terminal Blocks 4P 7.62mm PC4/4-ST-762 Terminal block; plug; female; straight; 7.62mm; ways:4; 20A; 300V Phoenix Contact 4 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 400 V |
| Category |
Business
| Product | Plugs | Lead Time | 20 Days |
| Tradename | COMBICON Power | Subcategory | Connector Terminal Blocks |
| Part # Aliases | 4-ST-7,62 4/ PC | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 5A | Voltage | 600V |
| Voltage Rating | 400 V | Number of Poles | 4 |
| Current Rating (Max) | 20A | Voltage - Input (Min) | 630V |
Mechanical
| Color | Green | Depth | 30.7 |
| Pitch | 0.300" (7.62mm) | Height | 18.1 |
| Length | 7 mm | Weight | 2.646 lbs |
| Material | Nylon | Packaging | Bulk |
| Wire Gauge | 10-30 AWG | Orientation | straight |
| Termination | Screw | Pitch - Post | 7.62mm |
| Mounting Type | Cable Mount | Connector Type | female |
| Contact Finish | Tin | Number of Rows | 1 |
| Plug Wire Entry | 180° | Housing Material | Polyamide |
| Length - Overall | 30.46 | Package Quantity | 50 |
| Termination Rows | 螺钉拧紧 | Connector - Cable | plug |
| Termination Style | Screw | Number of Contacts | 4 |
| Number of Positions | 4 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 24-10 | Wire Gauge or Range - mm2 | 24 → 10 AWG |
| Number of Positions/Bay/Row | 4 | ||
Product Info
| Spg | 50 | Type | Terminal Block |
| Gender | F | Series | PC |
| Features | Retention Latches (Non-Wire Side) | CAD Drawing | 3D CAD Model |
| Number of Lines | 4 | Number of Units | 1 |
| Industry Aliases | PC 4/ 4-ST-7, 62 | Number of Levels | 1 |
| Positions Per Level | 4 | ||
Documents & Media
Similar Parts
1849998
Phoenix Contact
DINレール・ターミナルブロック PCVK 4-7 62 Conn Terminal Block F 1 POS Screw ST 20A PLUG TERM BLOCK 7.62MM 1POS Plug-in block for DIN rail mounting PCVK 4-7,62 DIN Rail Terminal Blocks PCVK 4-7 62 Din-Railterminalblock,Plug,20A,630V,1Position,ScrewConnection

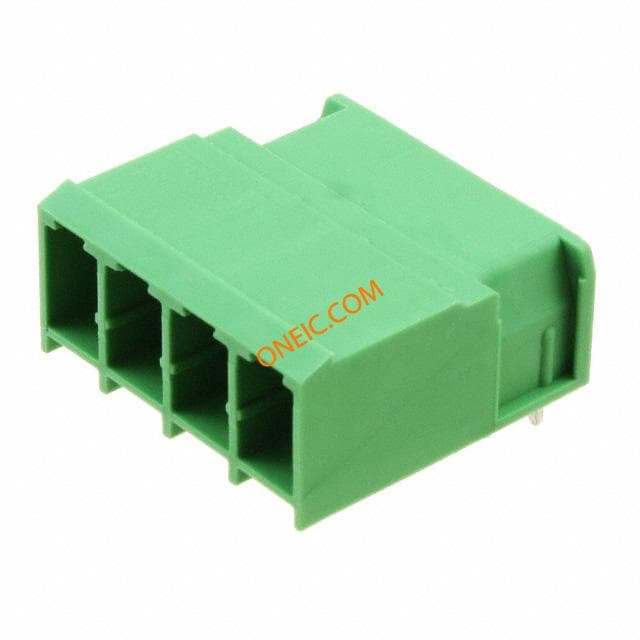

1804810
