1803015
| Manufacturer | |
| Description | Pluggable Terminal Blocks MSTBVK 2.5/ 8- GF-5,08 Conn Terminal Block F 8 POS 5.08mm Screw Panel Mount 12A CONN DIN RAIL 8POS 5.08MM MSTBVK25/8-GF-508 Phoenix Contact MSTBVK 系列 绿色 端子束夹 , 12A, 630 V |
| Category |
Business
| Product | Pluggable Terminal Blocks | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 30 |
| Factory Pack Quantity | 30 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-2 | ||
Electrical
| Current - UL | 12A | Voltage - UL | 300V |
| Current - IEC | 12A | Voltage - IEC | 300V |
| Voltage Rating | 320 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | 绿色 | Depth | 27.2 |
| Pitch | 5.08 mm | Height | 30 |
| Length | 2.046" (51.96mm) | Weight | 7.442806 oz |
| Wire Gauge | 12-24 | Termination | Screw |
| Height (Max) | 1.181" (30.00mm) | Housing Color | Green |
| Mounting Type | Panel Mount | Contact Finish | Tin |
| Mounting Style | DIN Rail | Number of Rows | 1 |
| Housing Material | Polyamide | Length - Overall | 51.96 |
| Stripping Length | 7mm | Terminal - Width | 27.2mm |
| Termination Rows | 螺钉 | Termination Style | Plug Receptacles, Screw |
| Number of Contacts | 8 | Number of Positions | 8 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm2 | 0.2-2.5mm² | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | MSTBVK | Features | Mating Flange |
| Number of Levels | 1 | ||
Documents & Media
Similar Parts

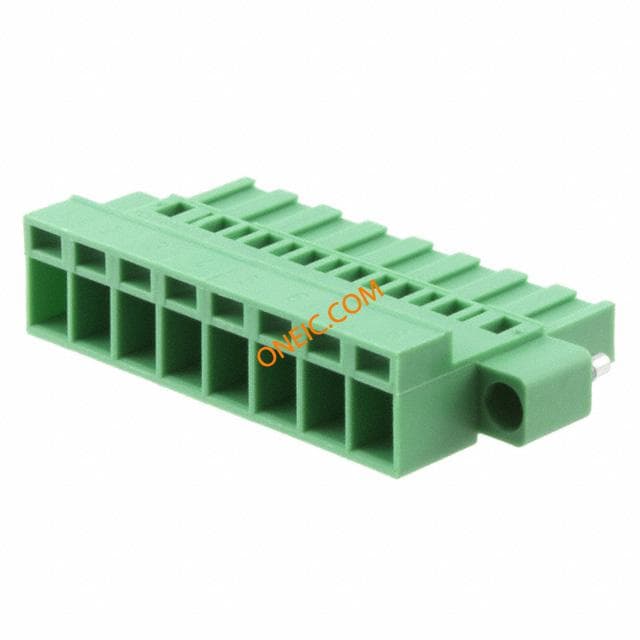

1809792
Phoenix Contact
Pluggable Terminal Blocks MSTBC 2,5/ 8STZF5,08 Conn Wire to Wire F 8 POS 5.08mm Crimp ST Panel Mount TERM BLOCK PLUG 8POS STR 5.08MM Printed-circuit board connector MSTBC 2,5/ 8-STZF-5,08 Conn;TermBlk;PCB;Plug;8;5.08mm;20-14AWG;Green;12A;320V
1734401
Phoenix Contact
Terminal Block Tools & Accessories CODING ELEMENT PRICED PER CLIP Connector Accessories Coding Element Inserted Into The Recess In The Header Or The Inverted Plug Red TERM BLOCK HEADER CODING ELEMENT CR-MSTB CODINGSECTION,REDINSULATINGMATERIAL
1733169
Phoenix Contact
Terminal Block Tools & Accessories EBP 2- 5 Conn Jumper PIN 2 POS 5mm/5.08mm ST TERM BLOCK INSERT BRIDGE 2POS Insertion bridge, fully insulated, for plug connectors with 5.0 or 5.08 mm pitch InsertionBridge;TermBlk;2;FullyInsul.;forplugs/w5.0,5.08mmpitch Phoenix Contact PCB 针座插入桥接

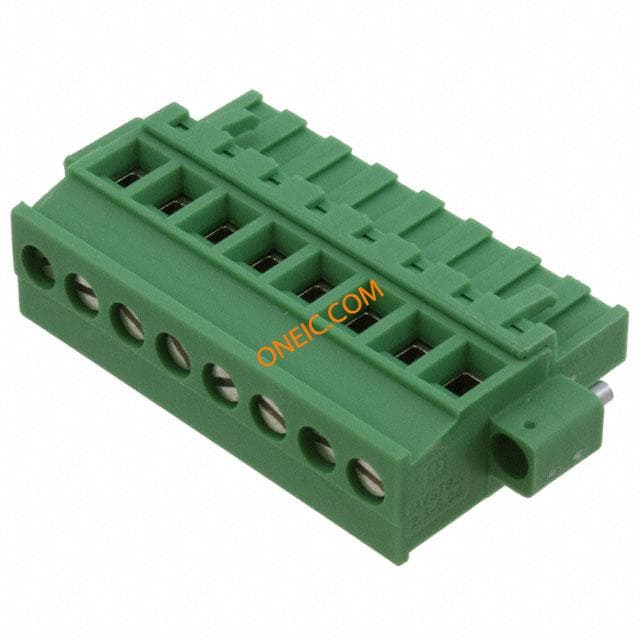

1835151
Phoenix Contact
Pluggable Terminal Blocks MVSTBR 2 5/ 8-STF-5 Conn Terminal Block F 8 POS 5.08mm Screw ST Panel Mount 12A TERM BLOCK PLUG 8POS 5.08MM Printed-circuit board connector MVSTBR 2,5/ 8-STF-5,08 Conn;TermBlk;Plug;8;5.08mm;24-12AWG;Green;12A;250V Terminal block; plug; female; angled 90°; screws; 5.08mm; ways:8

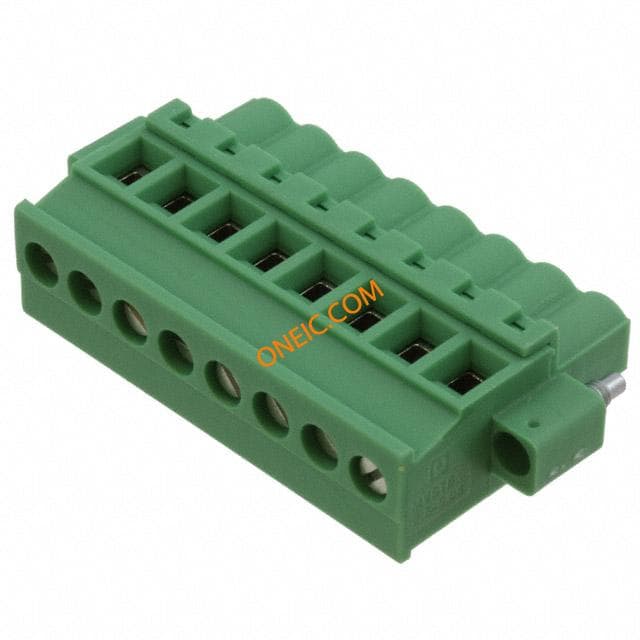

1834961
