点击放大查看
1792689
| Manufacturer | |
| Description | Pluggable Terminal Blocks MVSTBW 2 5/18-ST Conn Terminal Block F 18 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 18POS 270DEG 5MM Printed-circuit board connector MVSTBW 2,5/18-ST Plug component, nominal current: 12 A, rated voltage: 250 V, pitch: 5.0 mm, no. of positions: 18, type of conn Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 18, Connection type: Screw ... Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 18, Connection type: Screw connection, Color: green MVSTBW25/18-ST Phoenix Contact MVSTBW 系列 18路 5mm节距 印刷电路板接线端子块, 连接器 |
| Category |
Business
| Product | Pluggable Terminal Blocks | Lead Time | 17 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 12.5 |
| Pitch | 5 mm | Height | 26 |
| Length | 7 mm | Weight | 1.323 lbs |
| Packaging | Bulk | Wire Gauge | 24 |
| Termination | Screw | Mounting Type | Cable Mount |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 1 | Plug Wire Entry | 270° |
| Contact Material | 锡 | Housing Material | Polyamide |
| Length - Overall | 90 | Termination Rows | 螺钉 |
| Termination Style | Screw | Number of Contacts | 18 |
| Number of Positions | 18 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 24-12 | Wire Gauge or Range - mm2 | 12 |
Product Info
| Type | Wire to Wire | Gender | F |
| Series | MVSTBW | Features | Retention Latches (Non-Wire Side) |
| Industry Aliases | MVSTBW 2, 5/18-ST | Number of Levels | 1 |
| Positions Per Level | 18 | ||
Documents & Media
Similar Parts
1755668
Phoenix Contact
Pluggable Terminal Blocks MSTBVA 2 5/18-G Conn Shrouded Header HDR 18 POS 5mm Solder ST Thru-Hole TERM BLOCK HDR 18POS VERT 5MM Header for PCB plug connector MSTBVA 2,5/18-G MSTBVA25/18-G Phoenix Contact COMBICON MSTBVA 系列 18路 5mm节距 PCB 接线端子块 , 焊接端接, 12A
1762855
Phoenix Contact
Pluggable Terminal Blocks MDSTB 2 5/18-G1 Conn Shrouded Header HDR 36 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 36POS R/A 5MM MDSTB25/18-G1 Phoenix Contact COMBICON MDSTB 系列 18路 5mm节距 PCB 接线端子块 , 焊接端接, 10A
1769968
Phoenix Contact
Pluggable Terminal Blocks SMSTBA 2.5/18-G Conn Shrouded Header HDR 18 POS 5mm Solder Thru-Hole TERM BLOCK HDR 18POS 45DEG 5MM Header for PCB plug connector SMSTBA 2,5/18-G SMSTBA25/18-G Phoenix Contact COMBICON SMSTBA 系列 18路 5mm节距 PCB 接线端子块 , 焊接端接, 12A
1757624
Phoenix Contact
Pluggable Terminal Blocks 18P 5mm PCB TERM BLOCK HDR 18POS R/A 5MM Header for PCB plug connector MSTBA 2,5/18-G Conn Shrouded Header HDR 18 POS 5mm Solder RA Thru-Hole MSTBA25/18-G Phoenix Contact COMBICON MSTBA 系列 18路 5mm节距 PCB 接线端子块 , 焊接端接, 12A

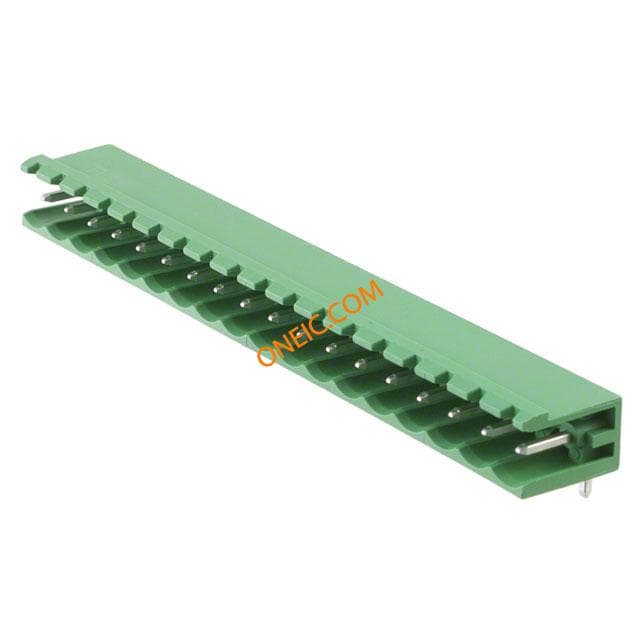

1754753
