1788978
| Manufacturer | |
| Description | Pluggable Terminal Blocks MSTBVK 2 5/4-GF-5 08 Conn Terminal Block HDR 4 POS 5.08mm Screw Cable Mount 12A CONN DIN RAIL 4POS 5.08MM Header for PCB plug connector MSTBVK 2,5/ 4-GF-5,08 MSTBVK25/4-GF-508 Phoenix Contact MSTBVK 系列 绿色 印刷电路板管座 , 12A, 630 V |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-2 | ||
Electrical
| Current - UL | 12A | Voltage - UL | 300V |
| Current - IEC | 12A | Voltage - IEC | 300V |
| Voltage Rating | 320 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | 绿色 | Depth | 30 |
| Pitch | 5.08 mm | Height | 27.2 |
| Length | 1.246" (31.64mm) | Weight | 7.442806 oz |
| Wire Gauge | 24 | Termination | Screw |
| Height (Max) | 1.181" (30.00mm) | Housing Color | Green |
| Mounting Type | Cable Mount | Number of Rows | 1 |
| Housing Material | Polyamide | Length - Overall | 21.84 |
| Stripping Length | 7mm | Terminal - Width | 27.2mm |
| Termination Rows | 螺钉 | Termination Style | Plug Receptacles, Screw |
| Number of Contacts | 4 | Number of Positions | 4 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm2 | 0.2-2.5mm² | ||
Product Info
| Type | Terminal Block | Gender | HDR |
| Series | MSTBVK | Features | Mating Flange |
| Number of Levels | 1 | ||
Documents & Media
Similar Parts

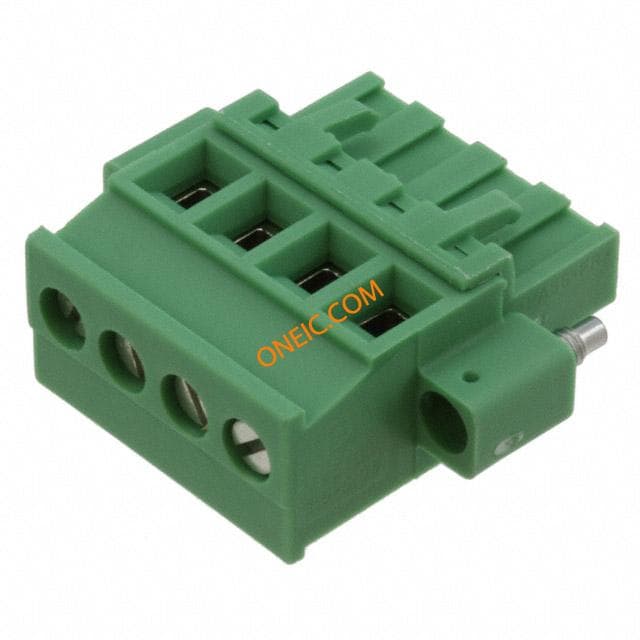

1835119
Phoenix Contact
プラグ着脱可能ターミナルブロック MVSTBR 2 5/ 4-STF-5 Conn Terminal Block F 4 POS 5.08mm Screw ST Panel Mount 12A TERM BLOCK PLUG 4POS 5.08MM Printed-circuit board connector MVSTBR 2,5/ 4-STF-5,08 Pluggable Terminal Blocks MVSTBR 2 5/ 4-STF-5 MVSTBR25/4-STF-508 Pluggable terminal block; plug; female; angled 90°; screws; 12A Phoenix Contact MVSTBR 系列 4路 5.08mm节距 印刷电路板接线端子块, 连接器

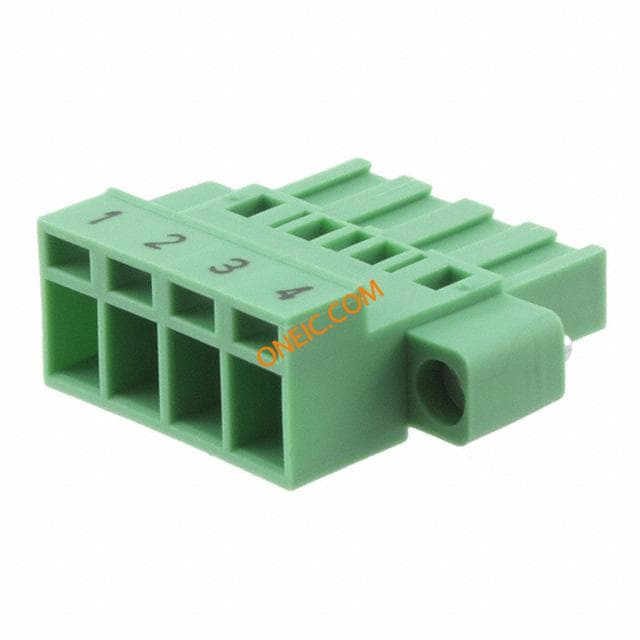

1726680
