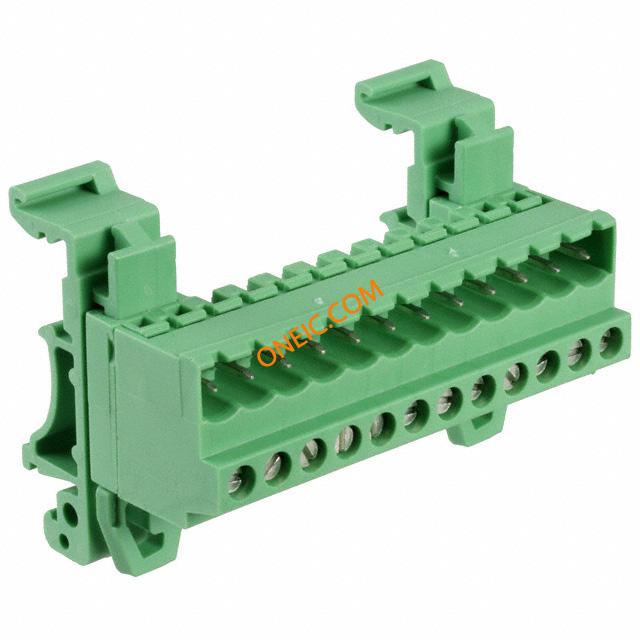

1788211
| Manufacturer | |
| Description | Pluggable Terminal Blocks UMSTBVK 2 5/12-G-5 0 Conn Terminal Block F 12 POS 5.08mm Screw Cable Mount 12A TERM BLK RAIL MNT PLUG-IN 12POS Non-Fused Terminal Block Cable Mount 12 Way, Screw Down, 320V UMSTBVK25/12-G-508 Phoenix Contact COMBICON UMSTBVK 系列 12 路 无熔丝端子块, 电缆安装, 螺钉端接, 320 V |
| Category |
Business
| Product | Plugs | Lead Time | 12 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-2 | ||
Electrical
| Current - UL | 12A | Voltage - UL | 300V |
| Current - IEC | 12A | Voltage - IEC | 300V |
| Voltage Rating | 320 V | Current Rating (Max) | 12A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 43.5 |
| Pitch | 5.08mm | Height | 42.5 |
| Length | 2.460" (62.48mm) | Weight | 7.442806 oz |
| Material | Nylon | Wire Gauge | 24 → 12 AWG |
| Termination | Screw | Height (Max) | 1.984" (50.40mm) |
| Housing Color | Green | Mounting Type | Cable Mount |
| Mounting Style | DIN Rail | Number of Rows | 1 |
| Housing Material | Polyamide | Length - Overall | 62.48 |
| Stripping Length | 7mm | Terminal - Width | 42.5mm |
| Termination Rows | 螺钉拧紧 | Termination Style | Plug Receptacles, Screw |
| Number of Contacts | 12 | Number of Positions | 12 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm2 | 0.2-2.5mm² | Number of Positions/Bay/Row | 12 |
Product Info
| Type | Terminal Block | Gender | F |
| CAD Drawing | 3D CAD 模型 | Number of Lines | 12 |
| Industry Aliases | UMSTBVK 2, 5/12-G-5, 08 | Number of Levels | 1 |
