1786404
| Manufacturer | |
| Description | Pluggable Terminal Blocks 2P 5.08mm Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 5.08MM Phoenix Contact IC Series 5.08mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 12A Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;2Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON IC 系列 5.08mm节距 2路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A , 通孔 |
| Category |
Business
| Product | Headers - Inverted | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | UL,cULRecognized | Approval Agency | UL,CUL,CSA,CB,GOST,VDE-PZI |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 10A | Voltage | 300V |
| Voltage Rating | 250 V | Number of Poles | 2Poles |
| Current - Output | 12A | Voltage - Supply | 300V |
| Voltage - Nominal | 320V | Current Rating (Max) | 12A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 19 |
| Pitch | 0.200" (5.08mm) | Height | 10.2 |
| Weight | 5.784930 oz | Packaging | Bulk |
| Orientation | 直角 | Termination | Solder |
| Housing Color | Green | Mounting Type | Right Angle |
| Contact Finish | Tin | Number of Rows | 1 |
| Housing Material | Polyamide | Length - Overall | 12.16 |
| Primary Material | PCB | Termination Rows | 焊接 |
| Pin Hole Diameter | 5.08mm | Termination Style | Through Hole |
| Header Orientation | 90°, Right Angle | Number of Contacts | 2 |
| Number of Positions | 2 | Terminal Block Type | Header, Female Sockets |
| Number of Poles per Deck | 2 | 2nd Connector Mounting Feature | 90°, Right Angle |
Product Info
| Type | Shrouded Header | Level | SingleLevel |
| Gender | HDR | Series | IC |
| Features | Retention Latches | CAD Drawing | 3D CAD Model |
| Main Purpose | Retention Latches | Manufacturer | COMBICON |
| Number of Levels | 1 | Base Product Number | IC2.5/2-G-5.08 |
| Positions Per Level | 2 | Output Configuration | Through Hole |
Documents & Media
Similar Parts
1763074
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm Conn Shrouded Header HDR 4 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 4POS VERT 5.08MM Header for PCB plug connector MDSTBV 2,5/ 2-G-5,08 Header(2position)10AMP(5.08mmpitch)
0707882
Phoenix Contact
Pluggable Terminal Blocks DFK-MSTB 2.5/ 2-G-5,08 WW(1X1) TERM BLOCK Phoenix Contact COMBICON DFK-MSTB 系列 2路 5.08mm节距 PCB 接线端子块 , 12A
1958533
Phoenix Contact
Pluggable Terminal Blocks MSTBVA 2.5/ 2-G- 5.08 LBGY Conn Shrouded Header HDR 2 POS 5.08mm TERM BLOCK HDR 2POS VERT 5.08MM MSTBVA25/2-G-508LBGY
1802430
Phoenix Contact
プラグ着脱可能ターミナルブロック MDSTBW 2.5/ 2-G-5.08 Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5.08MM Header for PCB plug connector MDSTBW 2,5/ 2-G-5,08 Pluggable Terminal Blocks MDSTBW 2.5/ 2-G-5.08 MDSTBW25/2-G-508
1872460
Phoenix Contact
プラグ着脱可能ターミナルブロック A-MSTBVA 2.5/ 2-G -5.08 Base Strip, Nominal Current 12 A, Nominal Voltage 250 V HEADER TERM BLOCK 2 POS 5.08MM Pluggable Terminal Blocks A-MSTBVA 2.5/ 2-G -5.08 A-MSTBVA25/2-G-508
1759444
Phoenix Contact
Pluggable Terminal Blocks MSTB 2 5/ 2-G-5 08 B Accessories, Mstb 2,5/ 2-G-5,08 Bk TERM BLOCK HDR 2POS R/A 5.08MM MSTB25/2-G-508BK
1757242
Phoenix Contact
Pluggable Terminal Blocks 5.08 2P HEADER 90DEG Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 5.08MM HEADER, RIGHT ANGLE, 5.08MM, 2WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;2Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 2路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A
1859519
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm 180 DEG Conn Shrouded Header HDR 2 POS 5.08mm Press Fit ST Thru-Hole TERM BLOCK HDR 2POS VERT 5.08MM Header for PCB plug connector EMSTBVA 2,5/ 2-G-5,08 Conn;TermBlk;PCB;Header;SnglLvl;Sldr;2Pole;5.08mmPitch;COMBICON
1758759
Phoenix Contact
Pluggable Terminal Blocks MSTBV 2.5/ 2-G-5,08 BK Conn Wire to Board HDR 2 POS 5.08mm TERM BLOCK HDR 2POS VERT 5.08MM MSTBV25/2-G-508BK
1762062
Phoenix Contact
Pluggable Terminal Blocks 5.08 2x2P HEADER 90D Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5.08MM Header for PCB plug connector MDSTB 2,5/ 2-G-5,08 Conn;TermBlk;PCB;Header;DblLvl;90DegAngl;Sldr;2Pole;5.08mmPitch;COMBICON
1735882
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm HDR MSTBW2 5/2-G-5 08 Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 5.08MM Header MSTBW 2,5/ 2-G-5,08 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;2Pole;5.08mmPitch;COMBICON

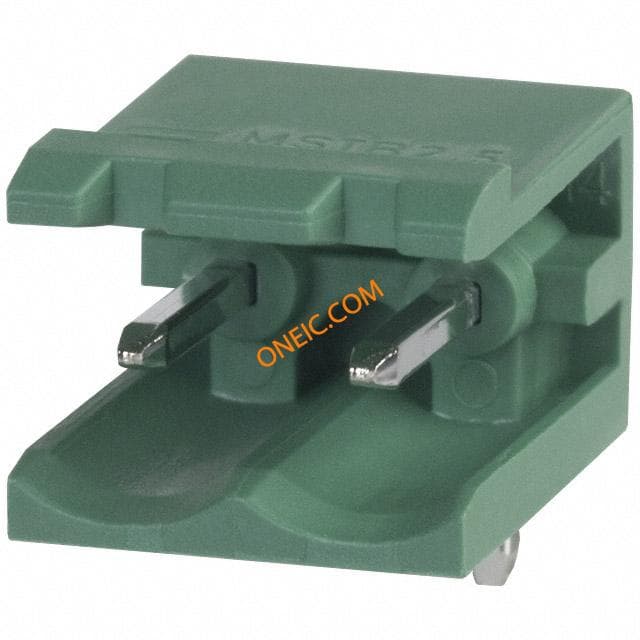

1759017
