点击放大查看

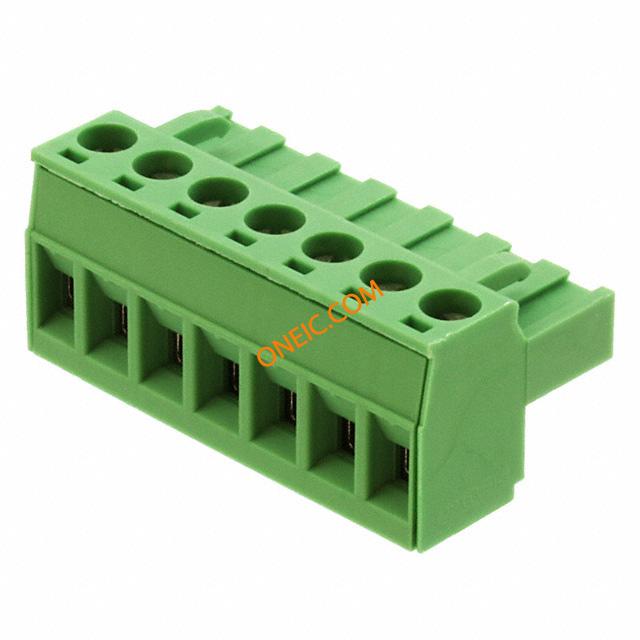

1781030
| Manufacturer | |
| Description | Pluggable Terminal Blocks MSTBT 2.5/ 7-ST-5.08 Conn Terminal Block F 7 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 7POS STR 5.08MM Printed-circuit board connector MSTBT 2,5/ 7-ST-5,08 CONNECTOR TERMINAL BLOCKS MSTBT25/7-ST-508 Phoenix Contact COMBICON MSTBT 系列 5.08mm 节距 7 路 母 绿色 插头, 螺钉端接 |
| Category |
Business
| Product | Plugs | Lead Time | 12 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Voltage - Supply | 300V |
| Current Rating (Max) | 12 A | Voltage - Input (Min) | 320V |
Mechanical
| Color | Green | Depth | 18.2 |
| Pitch | 0.200" (5.08mm) | Height | 15 |
| Weight | 4.585615 oz | Material | 聚酰胺，镀锡 |
| Packaging | Bulk | Wire Gauge | 12-30 AWG |
| Termination | Screw | Mounting Type | Cable Mount |
| Connector Type | 母座 | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 180° |
| Housing Material | Polyamide | Length - Overall | 35.56 |
| Termination Rows | 螺钉 | Cable Termination | 180° |
| Termination Style | Screw | Number of Contacts | 7 |
| Number of Positions | 7 | Terminal Block Type | Plug, Female Sockets |
| Number of Poles per Deck | 7 | Wire Gauge or Range - AWG | 24-12 |
Product Info
| Type | Terminal Block | Gender | F |
| Series | MSTBT | Features | Retention Latches (Non-Wire Side) |
| Main Purpose | Retention Latches (Non-Wire Side) | Industry Aliases | MSTBT 2, 5/ 7-ST-5, 08 |
| Number of Levels | 1 | Positions Per Level | 7 |
| Output Configuration | Free Hanging (In-Line) | ||
