点击放大查看
1779987
| Manufacturer | |
| Description | Pluggable Terminal Blocks MSTBT 2.5/2-ST-5.08 Conn Terminal Block F 2 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 2POS STR 5.08MM Printed-circuit board connector MSTBT 2,5/ 2-ST-5,08 PLUGCOMPONENT,PITCH:5.08MMPOS2 |
| Category |
Business
| Product | Plugs | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Part # Aliases | 2,5/2-ST-5.08 MSTBT | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 18.2 |
| Pitch | 0.200" (5.08mm) | Height | 15 |
| Weight | 4.585615 oz | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Termination | Screw |
| Mounting Type | Cable Mount | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 180° |
| Housing Material | Polyamide | Length - Overall | 10.16 |
| Termination Style | Screw | Number of Contacts | 2 |
| Number of Positions | 2 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 24-12 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | MSTBT | Features | Retention Latches (Non-Wire Side) |
| Industry Aliases | MSTBT 2, 5/ 2-ST-5, 08 | Number of Levels | 1 |
| Positions Per Level | 2 | ||
Documents & Media
Similar Parts
1763074
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm Conn Shrouded Header HDR 4 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 4POS VERT 5.08MM Header for PCB plug connector MDSTBV 2,5/ 2-G-5,08 Header(2position)10AMP(5.08mmpitch)
1958533
Phoenix Contact
Pluggable Terminal Blocks MSTBVA 2.5/ 2-G- 5.08 LBGY Conn Shrouded Header HDR 2 POS 5.08mm TERM BLOCK HDR 2POS VERT 5.08MM MSTBVA25/2-G-508LBGY
1802430
Phoenix Contact
プラグ着脱可能ターミナルブロック MDSTBW 2.5/ 2-G-5.08 Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5.08MM Header for PCB plug connector MDSTBW 2,5/ 2-G-5,08 Pluggable Terminal Blocks MDSTBW 2.5/ 2-G-5.08 MDSTBW25/2-G-508
1872460
Phoenix Contact
プラグ着脱可能ターミナルブロック A-MSTBVA 2.5/ 2-G -5.08 Base Strip, Nominal Current 12 A, Nominal Voltage 250 V HEADER TERM BLOCK 2 POS 5.08MM Pluggable Terminal Blocks A-MSTBVA 2.5/ 2-G -5.08 A-MSTBVA25/2-G-508

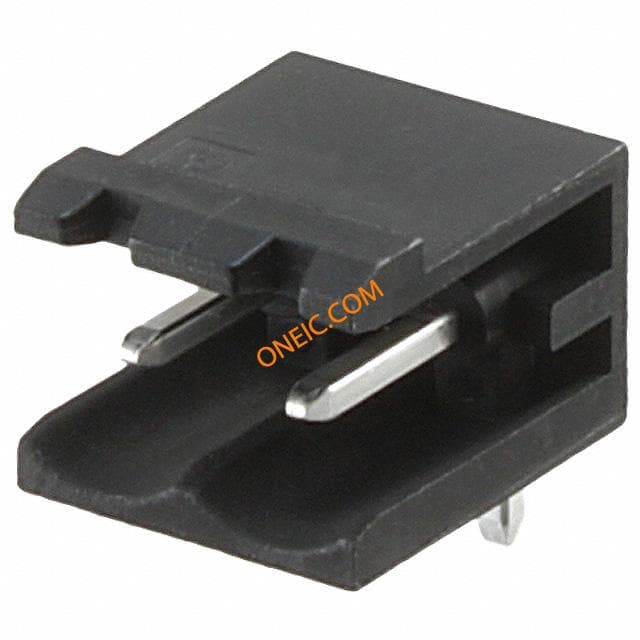

1759444
Phoenix Contact
Pluggable Terminal Blocks MSTB 2 5/ 2-G-5 08 B Accessories, Mstb 2,5/ 2-G-5,08 Bk TERM BLOCK HDR 2POS R/A 5.08MM MSTB25/2-G-508BK
1757242
Phoenix Contact
Pluggable Terminal Blocks 5.08 2P HEADER 90DEG Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 5.08MM HEADER, RIGHT ANGLE, 5.08MM, 2WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;2Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 2路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A
1859519
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm 180 DEG Conn Shrouded Header HDR 2 POS 5.08mm Press Fit ST Thru-Hole TERM BLOCK HDR 2POS VERT 5.08MM Header for PCB plug connector EMSTBVA 2,5/ 2-G-5,08 Conn;TermBlk;PCB;Header;SnglLvl;Sldr;2Pole;5.08mmPitch;COMBICON

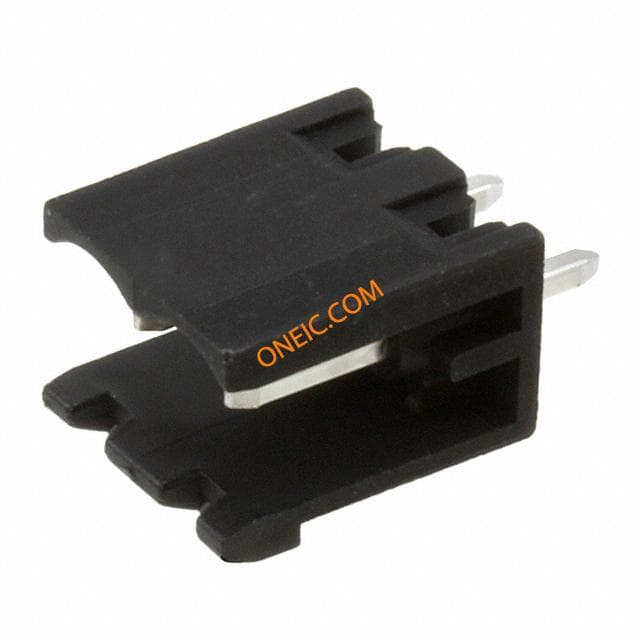

1758759
Phoenix Contact
Pluggable Terminal Blocks MSTBV 2.5/ 2-G-5,08 BK Conn Wire to Board HDR 2 POS 5.08mm TERM BLOCK HDR 2POS VERT 5.08MM MSTBV25/2-G-508BK
1767371
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm Conn Shrouded Header HDR 2 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 2POS 45DEG 5.08MM Header for PCB plug connector SMSTBA 2,5/ 2-G-5,08 SMSTBA25/2-G-508 Phoenix Contact COMBICON SMSTBA 系列 2路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A
1762062
Phoenix Contact
Pluggable Terminal Blocks 5.08 2x2P HEADER 90D Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5.08MM Header for PCB plug connector MDSTB 2,5/ 2-G-5,08 Conn;TermBlk;PCB;Header;DblLvl;90DegAngl;Sldr;2Pole;5.08mmPitch;COMBICON
1735882
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm HDR MSTBW2 5/2-G-5 08 Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 5.08MM Header MSTBW 2,5/ 2-G-5,08 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;2Pole;5.08mmPitch;COMBICON

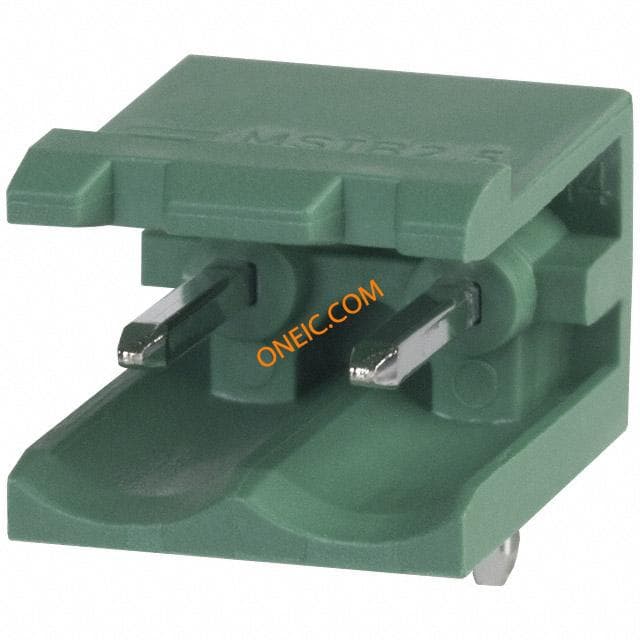

1759017
