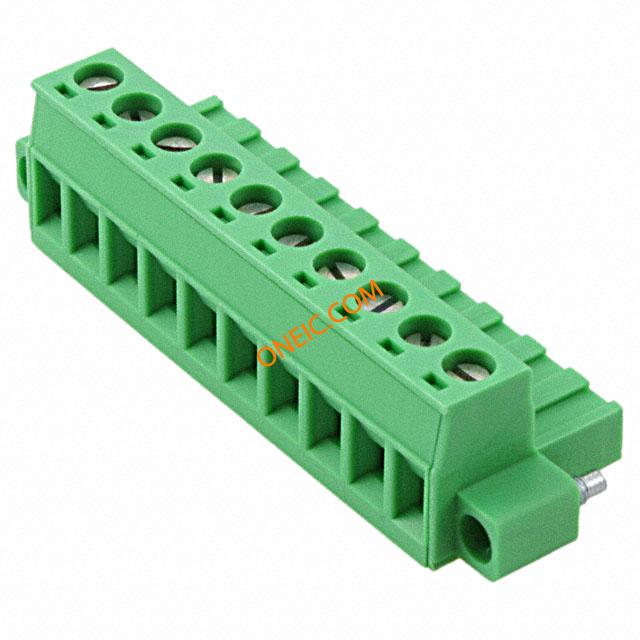

1778069
| Manufacturer | |
| Description | Pluggable Terminal Blocks 5.08mm 10P PLG W/FLG Conn Terminal Block F 10 POS 5.08mm Screw RA Panel Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTB 2,5/10-STF-5,08 Plugcomponent,Nominalcurrent:12A,10Positions MSTB 2,5/10-STF-5,08 5.08mm 10 way plug |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Plugs | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Part # Aliases | 2,5/10-STF-5.08 MSTB | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 18.2 |
| Pitch | 0.200" (5.08mm) | Height | 15 |
| Weight | 4.550341 oz | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Termination | Screw |
| Mounting Type | Panel Mount | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 180° |
| Housing Material | Polyamide | Length - Overall | 60.81 |
| Termination Style | Screw | Number of Contacts | 10 |
| Number of Positions | 10 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 24-12 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | MSTB | Features | Flange |
| Industry Aliases | MSTB 2, 5/10-STF-5, 08 | Number of Levels | 1 |
| Positions Per Level | 10 | ||
