点击放大查看

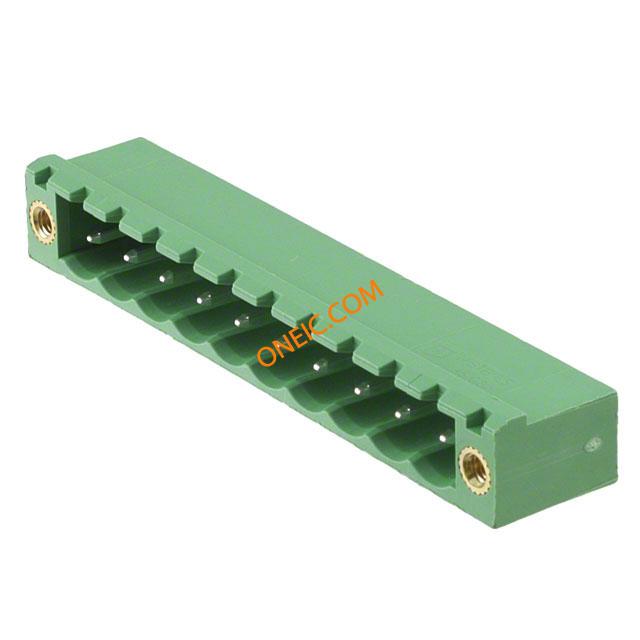

1776582
| Manufacturer | |
| Description | Pluggable Terminal Blocks 5.08mm 10P HDR W/FLG Conn Shrouded Header HDR 10 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 10POS R/A 5.08MM Header for PCB plug connector MSTB 2,5/10-GF-5,08 MSTB2,5/10-GF-5,08 |
| Category |
Business
| Product | Headers | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Product Category | Pluggable Terminal Blocks | Standard Package | 100 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Green | Depth | 12 mm |
| Pitch | 0.200" (5.08mm) | Height | 8.6 mm |
| Weight | 5.396916 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Right Angle | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 60.96 mm |
| Termination Style | Through Hole | Header Orientation | 90°, Right Angle |
| Number of Contacts | 10 | Number of Positions | 10 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | MSTB | Features | Flange |
| Industry Aliases | MSTB 2, 5/10-GF-5, 08 | Number of Levels | 1 |
| Positions Per Level | 10 | ||
Documents & Media
Similar Parts
1805372
Phoenix Contact
Pluggable Terminal Blocks MSTBT 2 5/10-STF-5 0 Conn Terminal Block F 10 POS 5.08mm Screw RA Panel Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTBT 2,5/10-STF-5,08 MSTBT25/10-STF-508

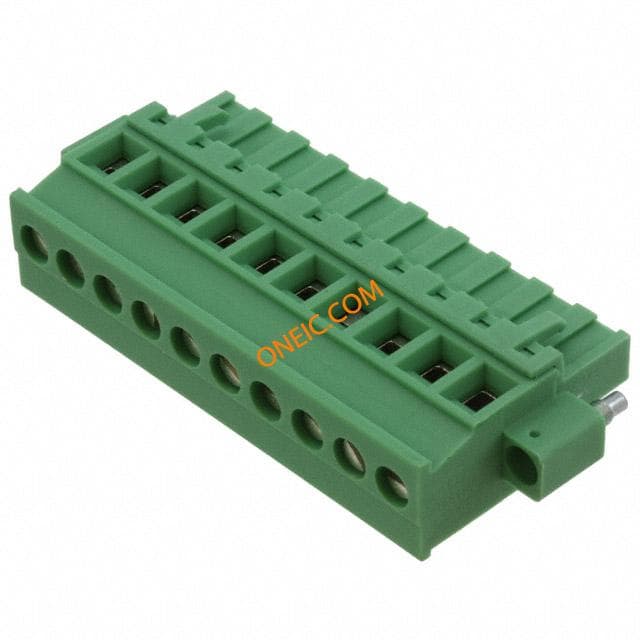

1835177
Phoenix Contact
Pluggable Terminal Blocks MVSTBR 2 5/10-STF-5 Conn Terminal Block F 10 POS 5.08mm Screw ST Panel Mount 12A TERM BLOCK PLUG 10POS 5.08MM Printed-circuit board connector MVSTBR 2,5/10-STF-5,08 MVSTBR25/10-STF-508 Phoenix Contact MVSTBR 系列 10路 5.08mm节距 印刷电路板接线端子块, 连接器

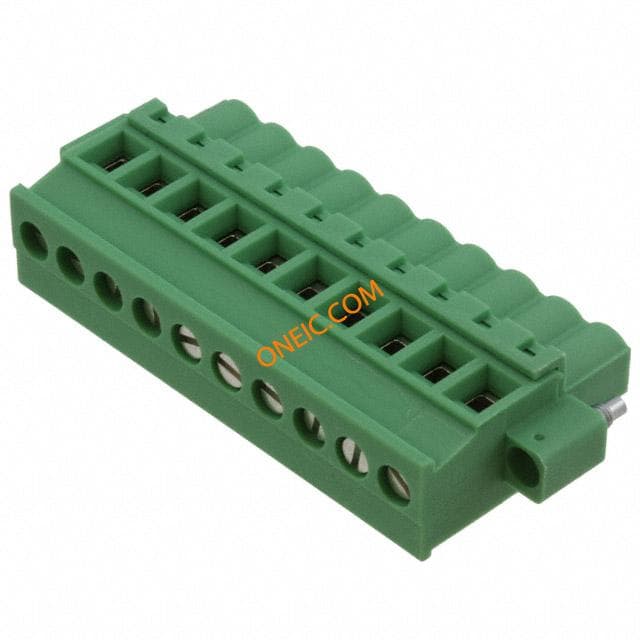

1834987
