1772890
| Manufacturer | |
| Description | Terminal Block Tools & Accessories HC-KA-B 10-ST/PER Conn HEAVYCON Adapter Insert F/F 20/20 POS Panel Mount TERMINAL ADAPT MALE INSERT 10POS Contact insert HC-KA-B 10-ST/PER HC-KA-B10-ST/PER |
| Category |
Business
| Product | Tools & Accessories | Lead Time | 40 Days |
| Subcategory | Connector Rectangular | Product Category | Terminal Block Tools & Accessories |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 10A |
| Voltage - Input (Min) | 400V | ||
Mechanical
| Size | B10 | Depth | 79 |
| Material | Polyamide / Polycarbonate | Packaging | Bulk |
| Mounting Type | Panel Mount | Connector Type | Insert |
| Contact Finish | Silver | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Polyamide/Polycarbonate |
| Length - Overall | 64 | Termination Style | Screw |
| 1st Contact Gender | F/F | Number of Contacts | 20/20 |
| Number of Positions | 10 | ||
Product Info
| Type | Terminal Adapter, male insert | Gender | Male |
| Industry Aliases | HC-KA-B 10-ST/PER | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | -40°C ~ 125°C |
Similar Parts
1690118
Phoenix Contact
Heavy Duty Power Connectors HC-B10-TMS-100/ 01STM32G-EUA HEAVYCON Advance For Increased Environmental Requirements, Sleeve Housing B10, With Screw Locking SLEEVE HOUSING B10 100 MM HC-B10-TMS-100/O1STM32G-EUA Phoenix Contact 连接器外壳
1604781
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B10-TMQ-52/01M25S HEAVYCON Sleeve Housing B10, With Double Locking Latch, Height 52 HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 10-TMQ-52/O1M25S Heavy Duty Power Connectors HC-B10-TMQ-52/01M25S HEAVYCONsleevehousingB10

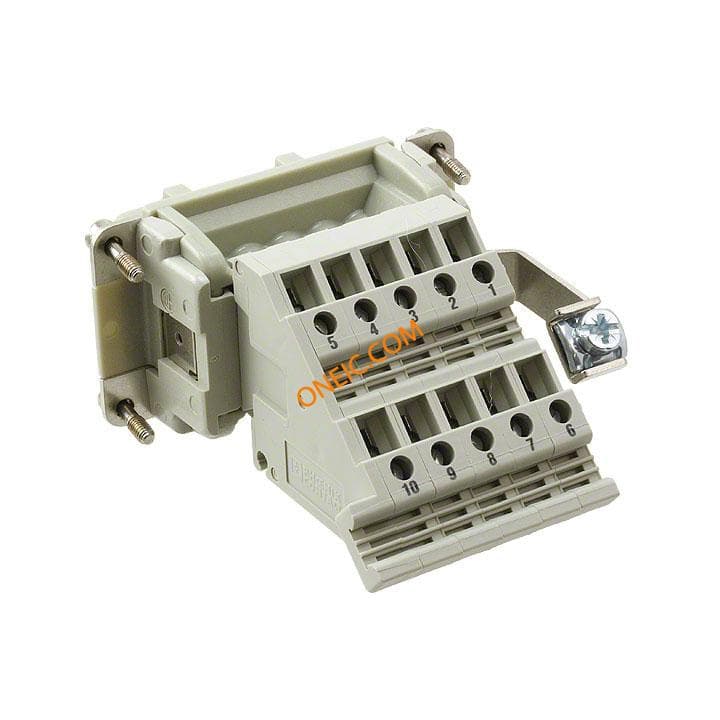

1772939
