点击放大查看
1772418
| Manufacturer | |
| Description | Heavy Duty Power Connectors HC-D 25-ESTC Conn Terminal Block F 25 POS Crimp ST Panel Mount 10A MALE INSERT D25 SERIES 25POS Contact insert HC-D 25-ESTC Conn Terminal Blocks F 25 POS Crimp ST Panel Mount 10A HEAVYCONMALEINSERT,25-POS. |
| Category |
Business
| Lead Time | 28 Days | Tradename | HEAVYCON |
| Subcategory | Connector Terminal Blocks | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 10A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Size | D25 | Depth | 22.8 mm |
| Height | 31.5 mm | Weight | 1.283972 oz |
| Packaging | Bulk | Wire Gauge | 14-26 |
| Termination | Crimp | Contact Form | CK 1.6-ED |
| Contact Type | CK 1.6-ED | Mounting Type | Panel Mount |
| Connector Type | Insert without Contacts | Contact Finish | Silver |
| Mounting Style | Panel | Number of Rows | 2 |
| Insertion Force | Male | Contact Material | Copper Alloy |
| Housing Material | Polyamide | Length - Overall | 73 mm |
| Size / Dimension | D25 | Termination Style | Crimp |
| Number of Contacts | 25 | Number of Positions | 25 |
| Wire Gauge or Range - AWG | 26-14 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | Heavycon | Product Type | Inserts |
| Industry Aliases | HC-D 25-ESTC | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
1604904
Phoenix Contact
Heavy Duty Power Connectors HC-D25-TFL-72/01M25G Heavycon Sleeve Housing D25, For Single Locking Latch, Height 72Mm, With Support 1X M25, Straight Conductor Exit SLEEVE HSNG D25 FOR SGL LOCK Housing for heavy-duty plug connectors HC-D 25-TFL-72/O1M25G HC-D25-TFL-72/O1M25G Connector Housing
1663365
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Male Diam. 0.75-1.00mm Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 18AWG Phoenix Contact 1663365 Crimp Contact Terminal Block, Series: CK Crimp contact CK1,6-ED-1,00ST AG Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 0.75-1.00mm Ag TURNED1.6CRIMPCONTACTMALE Phoenix Contact CK 系列 压接触点
1672783
Phoenix Contact
ヘビーデューティパワーコネクタ HC-D 25-SML-57/ O2PG16 Box Mounting Base, With Single Locking Latch, Height 57mm, Without Screw Connection, 2X PG16 HEAVYCON BOX MOUNTING BASE Heavy Duty Power Connectors HC-D 25-SML-57/ O2PG16 HC-D25-SML-57/O2PG16 Phoenix Contact HC-D 系列 连接器外壳 , 适用于A16，HC-D25
1674875
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 1.5mm Au Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 16AWG Crimp contact CK1,6-ED-1,50ST AU Turned 1.6 crimp contact, individual male contact, core diameter 1.5 mm², gold-plated TURNED1.6CRIMPCONTACTMALE
1884995
Phoenix Contact
Heavy Duty Power Connectors Fiber Opt Male Cont POF, for VC-D Insert Contact PIN/SKT Crimp ST Cable Mount FIBER OPTIC MALE CONTACT POF POF male contact CK1,6-ED-ST-POF CK16-ED-ST-POF
1645189
Phoenix Contact
Heavy Duty Power Connectors HC-D 25-TFL-72/ O1STM25G HEAVYCON Sleeve Housing D25, For Single Locking Latch HEAVYCON SLEEVE HOUSING HEAVYCON sleeve housing D25, for single locking latch, height 72 mm, without support 1x M25, straight conductor exit HC-D25-TFL-72/O1STM25G
1674927
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 2.5mm Au Contact PIN Crimp ST Cable Mount TURNED 1.6 CRIMP CONTACT MALE Crimp contact CK1,6-ED-2,50ST AU CK16-ED-250STAU Phoenix Contact HC-M 系列 公插 压接触点 , 额定电流 0.005A/ 5 V, 适用于HC-D、HC-DD、HC-M-12、HC-M-EMC、VC-D
1775871
Phoenix Contact
Heavy Duty Power Connectors HC-D 50-AFQD HEAVYCON Panel Mounting Base B50, For Double Locking Latch, Height 28mm, With Cover HEAVYCON PANEL MOUNTING BASE HC-D50-AFQD Phoenix Contact HC-D 系列 连接器外壳 , 适用于A16/A32，HC-D25
1674914
Phoenix Contact
ヘビーデューティパワーコネクタ CK1.6-ED-0.75ST AU Turned Male Contacts, Diameter 1.6mm, For HCM12, HCMEMV, HCD, HCDD And VCD Contact Carriers CRIMP CONTACT PIN 18AWG Crimp contact CK1,6-ED-0,75ST AU Heavy Duty Power Connectors CK1.6-ED-0.75ST AU CK16-ED-075STAU Phoenix Contact HC-M 系列 公插 压接触点 , 额定电流 5mA/ 5 V, 适用于HC-D、HC-DD、HC-M-12、HC-M-EMC、VC-D
1604913
Phoenix Contact
ヘビーデューティパワーコネクタ HC-D50-TFQ-76/O1M25S Misc Products SLEEVE HSNG D50 FOR DOUBLE LOCK Heavy Duty Power Connectors HC-D50-TFQ-76/O1M25S HC-D50-TFQ-76/O1M25S Connector Housing

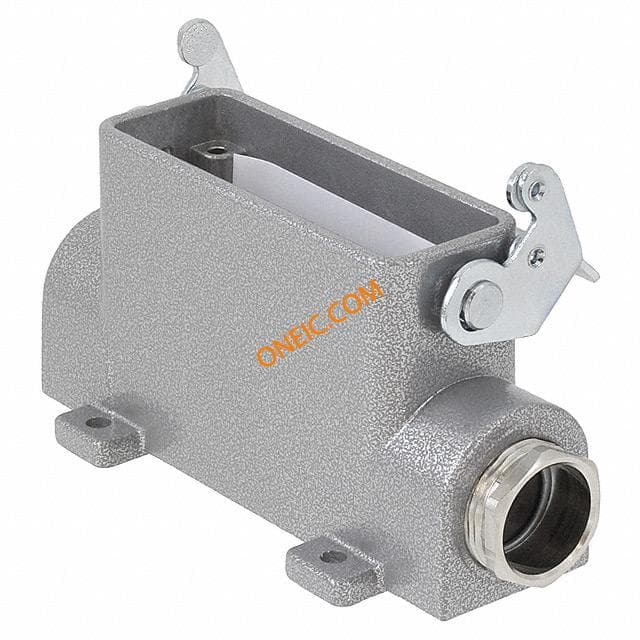

1677571
