点击放大查看
1765768
| Manufacturer | |
| Description | プラグ着脱可能ターミナルブロック UMSTBHK 2 5/10-G Conn Terminal Block HDR 10 POS 5mm Screw RA 12A DIN RAIL PLUG-IN UNIT 5.0MM GRN Header for PCB plug connector UMSTBHK 2,5/10-G Pluggable Terminal Blocks UMSTBHK 2 5/10-G Conn Terminal Blocks HDR 10 POS 5mm Screw RA 12A Conn;TermBlk;Plug;DINRail;10;5mm;24-12AWG;12A;250V |
| Category |
Business
| Product | Plugs | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 10A | Voltage - UL | 300V |
| Current - IEC | 12A | Voltage - IEC | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Depth | 42.5 mm | Pitch | 5 mm |
| Height | 33 mm | Length | 2.059" (52.30mm) |
| Weight | 12.345887 oz | Wire Gauge | 24 |
| Termination | Screw | Height (Max) | 1.496" (38.00mm) |
| Housing Color | Green | Mounting Type | Right Angle |
| Number of Rows | 1 | Housing Material | Polyamide |
| Length - Overall | 52.3 mm | Stripping Length | 7mm |
| Terminal - Width | 29.1mm | Termination Style | Plug Receptacles, Screw |
| Number of Contacts | 10 | Number of Positions | 10 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm2 | 0.2-2.5mm² | ||
Product Info
| Type | Terminal Block | Gender | HDR |
| Industry Aliases | UMSTBHK 2, 5/10-G | Number of Levels | 1 |
| Base Product Number | UMSTBHK2,5/10-G | ||
Similar Parts
1755477
Phoenix Contact
Terminal Block Tools & Accessories MSTB-BL Connector Accessories Cap TERMINAL BLOCK KEYING CAP GREEN Keying cap, for forming sections, plugs onto header pin, green insulating material Keying Cap, For Forming Sections, Plugs Onto Header Pin MSTB-BL
1765852
Phoenix Contact
Pluggable Terminal Blocks MSTBP 2.5/10-ST Conn Terminal Block F 10 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5MM Printed-circuit board connector MSTBP 2,5/10-ST Connector;PCB;12A;320V;10-Pos.;ScrewConn.;Green
1201442
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Clamp Polyamide Gray DINRAIL END BRACKET UNIVERSAL Phoenix Contact 1201442 End Clamp DIN Rail, Series: E/UK EndClamp;TermBlk;Gray;50.8mmLx9.5mmWx35.3mmH Holder; grey; Width:9.5mm; TS32,TS35; Ht:35.3mm; L:50.5mm Phoenix Contact E/UK 系列 端夹
1754601
Phoenix Contact
Pluggable Terminal Blocks 5.00 10P PLUG 180DEG Conn Terminal Block F 10 POS 5mm Screw RA 12A TERM BLOCK PLUG 10POS STR 5MM Printed-circuit board connector MSTB 2,5/10-ST Conn;TermBlk;Plug;Screw;10;5mm;30-12AWG;10A;300V;PA Phoenix Contact COMBICON MSTB 系列 5mm 节距 10 路 母 绿色 直 插头, 插入式, 螺钉端接
1734401
Phoenix Contact
Terminal Block Tools & Accessories CODING ELEMENT PRICED PER CLIP Connector Accessories Coding Element Inserted Into The Recess In The Header Or The Inverted Plug Red TERM BLOCK HEADER CODING ELEMENT CR-MSTB CODINGSECTION,REDINSULATINGMATERIAL
1733198
Phoenix Contact
Terminal Block Tools & Accessories EBP 5- 5 Conn Jumper M 5 POS ST TERM BLOCK INSERT BRIDGE 5POS Jumper EBP 5- 5 EBP5-5
1733172
Phoenix Contact
Terminal Block Tools & Accessories EBP 3- 5 Insertion Bridge Fully Insulated For Plug Connectors TERM BLOCK INSERT BRIDGE 3POS Insertion bridge, fully insulated, for plug connectors with 5.0 or 5.08 mm pitch EBP3-5 Phoenix Contact PCB 针座插入桥接
1765250
Phoenix Contact
Pluggable Terminal Blocks 5mm 10P PRE-PRINTED 1-10 LEFT TO RIGHT Conn Terminal Block 10 POS 5mm 12A TERM BLOCK PLUG 10POS STR 5MM Conn;TermBlk;Plug;Screw;10;5mm;Green;12A;250V;Pre-Printed
1733169
Phoenix Contact
Terminal Block Tools & Accessories EBP 2- 5 Conn Jumper PIN 2 POS 5mm/5.08mm ST TERM BLOCK INSERT BRIDGE 2POS Insertion bridge, fully insulated, for plug connectors with 5.0 or 5.08 mm pitch InsertionBridge;TermBlk;2;FullyInsul.;forplugs/w5.0,5.08mmpitch Phoenix Contact PCB 针座插入桥接
1862548
Phoenix Contact
Pluggable Terminal Blocks MSTB 2.5/10-ST BK BD:1-10 Plug PL 10 POS 5mm TERM BLOCK PLUG 10POS STR 5MM MSTB25/10-STBKBD:1-10

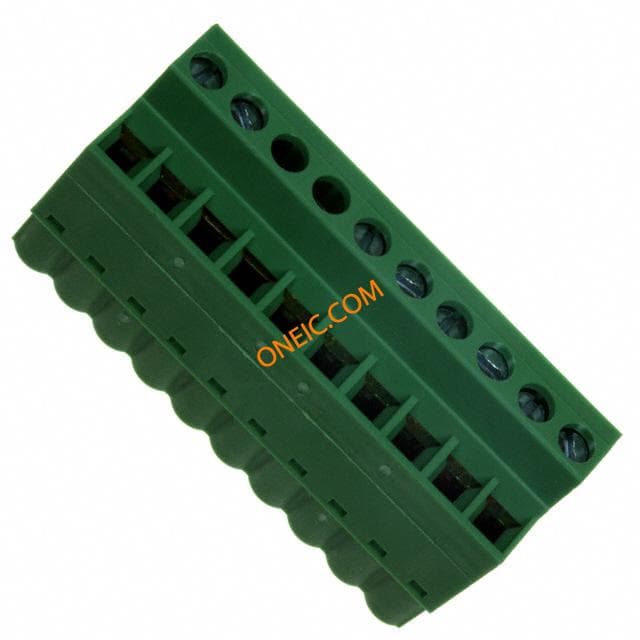

1779495
