点击放大查看
1765085
| Manufacturer | |
| Description | Pluggable Terminal Blocks 10P 5mm Conn Terminal Block HDR 10 POS 5mm RA 12A TERM BLK PLUG-IN 10POS 5.0MM GRN Header MSTBHK 2,5/10-G MSTBHK25/10-G |
| Category |
Business
| Product | Headers | Lead Time | 28 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 10A | Voltage - UL | 300V |
| Current - IEC | 12A | Voltage - IEC | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 250V | ||
Mechanical
| Color | Gray | Pitch | 5 mm |
| Height | 24.2 | Length | 2.059" (52.30mm) |
| Weight | 2 lbs | Height (Max) | 1.091" (27.70mm) |
| Housing Color | Green | Mounting Type | Right Angle |
| Contact Finish | Tin | Number of Rows | 1 |
| Housing Material | Polyamide | Length - Overall | 52 |
| Stripping Length | 7mm | Terminal - Width | 29.1mm |
| Termination Style | Plug Receptacles, Screw | Number of Contacts | 10 |
| Number of Positions | 10 | Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 12-30 AWG | Wire Gauge or Range - mm2 | 0.2-2.5mm² |
Product Info
| Type | Terminal Block | Gender | HDR |
| Series | MSTB | Industry Aliases | MSTBHK 2, 5/10-G |
| Number of Levels | 1 | ||
Documents & Media
Similar Parts
1755477
Phoenix Contact
Terminal Block Tools & Accessories MSTB-BL Connector Accessories Cap TERMINAL BLOCK KEYING CAP GREEN Keying cap, for forming sections, plugs onto header pin, green insulating material Keying Cap, For Forming Sections, Plugs Onto Header Pin MSTB-BL
1765852
Phoenix Contact
Pluggable Terminal Blocks MSTBP 2.5/10-ST Conn Terminal Block F 10 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5MM Printed-circuit board connector MSTBP 2,5/10-ST Connector;PCB;12A;320V;10-Pos.;ScrewConn.;Green
1759004
Phoenix Contact
プラグ着脱可能ターミナルブロック MSTB 2 5/10-STZ Conn Terminal Block F 10 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5MM Printed-circuit board connector MSTB 2,5/10-STZ Pluggable Terminal Blocks MSTB 2 5/10-STZ MSTB2,5/10-STZ
1401637
Phoenix Contact
ターミナルブロック・ツールとアクセサリ E/MBK END BRACKET Connector Accessories End Clamp Straight Polyamide Gray TERMINAL BLOCK END BRACKET End bracket E/MBK Terminal Block Tools & Accessories E/MBK END BRACKET Mn35 Digital Multimeter Ac/Dc Volts, Dc Amps, Resistance, Temp EndClamp;TermBlk;Gray;22mmLx6.2mmWx11.4mmH Phoenix Contact E/MBK 系列 端夹
1754601
Phoenix Contact
Pluggable Terminal Blocks 5.00 10P PLUG 180DEG Conn Terminal Block F 10 POS 5mm Screw RA 12A TERM BLOCK PLUG 10POS STR 5MM Printed-circuit board connector MSTB 2,5/10-ST Conn;TermBlk;Plug;Screw;10;5mm;30-12AWG;10A;300V;PA Phoenix Contact COMBICON MSTB 系列 5mm 节距 10 路 母 绿色 直 插头, 插入式, 螺钉端接
1734401
Phoenix Contact
Terminal Block Tools & Accessories CODING ELEMENT PRICED PER CLIP Connector Accessories Coding Element Inserted Into The Recess In The Header Or The Inverted Plug Red TERM BLOCK HEADER CODING ELEMENT CR-MSTB CODINGSECTION,REDINSULATINGMATERIAL
1792090
Phoenix Contact
Pluggable Terminal Blocks 5.00 10P PLUG 90DEG Conn Terminal Block F 10 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 10POS 90DEG 5MM COMBICON PCB plugs MVSTBR 2,5/10-ST Conn Terminal Blocks F 10 POS 5mm Screw ST Cable Mount 12A Conn;TermBlk;Plug;Screw;10;5mm;30-12AWG;10A;300V;PA
1768833
Phoenix Contact
Pluggable Terminal Blocks 5.00 10P PLUG 45DEG Conn Terminal Block F 10 POS 5mm Screw Cable Mount 12A TERM BLOCK PLUG 10POS 225DEG 5MM Printed-circuit board connector SMSTB 2,5/10-ST Conn;TermBlk;Plug;Screw;10;5mm;30-12AWG;10A;300V;PA
1765250
Phoenix Contact
Pluggable Terminal Blocks 5mm 10P PRE-PRINTED 1-10 LEFT TO RIGHT Conn Terminal Block 10 POS 5mm 12A TERM BLOCK PLUG 10POS STR 5MM Conn;TermBlk;Plug;Screw;10;5mm;Green;12A;250V;Pre-Printed
1862548
Phoenix Contact
Pluggable Terminal Blocks MSTB 2.5/10-ST BK BD:1-10 Plug PL 10 POS 5mm TERM BLOCK PLUG 10POS STR 5MM MSTB25/10-STBKBD:1-10

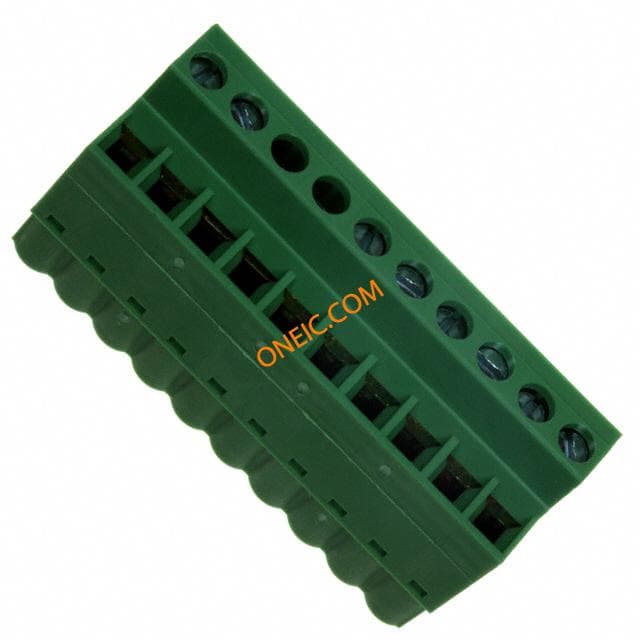

1779495
