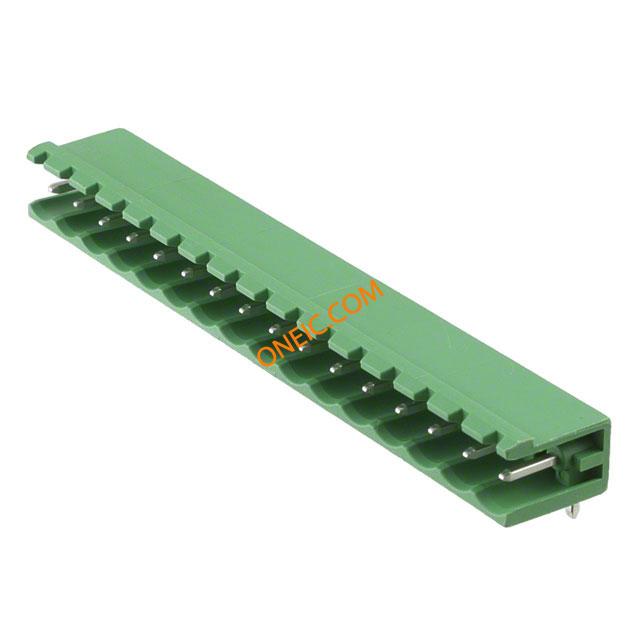

1759156
| Manufacturer | |
| Description | プラグ着脱可能ターミナルブロック MSTB 2 5/16-G-5 08 Conn Shrouded Header HDR 16 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 16POS R/A 5.08MM Header for PCB plug connector MSTB 2,5/16-G-5,08 Pluggable Terminal Blocks MSTB 2 5/16-G-5 08 MSTB25/16-G-508 Phoenix Contact COMBICON MSTB 系列 16路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A |
| Category |
Business
| Product | Headers | Lead Time | 28 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Green | Depth | 12 mm |
| Pitch | 0.200" (5.08mm) | Height | 8.6 mm |
| Weight | 5.361642 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Right Angle | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | 锡 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 81.28 mm | Termination Rows | 焊接 |
| Termination Style | Through Hole | Header Orientation | 90°, Right Angle |
| Number of Contacts | 16 | Number of Positions | 16 |
| Terminal Block Type | Header, Male Pins, Shrouded (2 Side) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | MSTB | Industry Aliases | MSTB 2, 5/16-G-5, 08 |
| Number of Levels | 1 | Positions Per Level | 16 |
