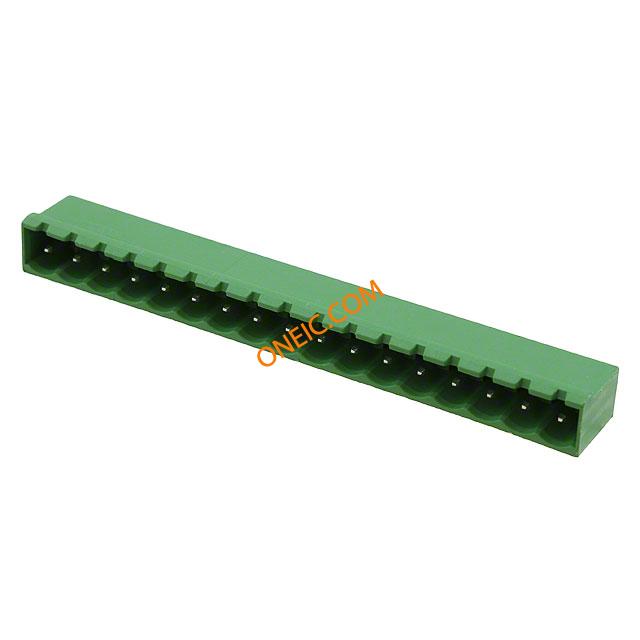

1757394
| Manufacturer | |
| Description | Pluggable Terminal Blocks 12A 250V 17-pos. GRN HEADER Conn Shrouded Header HDR 17 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 17POS R/A 5.08MM Header for PCB plug connector MSTBA 2,5/17-G-5,08 MSTBA25/17-G-508 Phoenix Contact COMBICON MSTBA 系列 17路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A |
| Category |
Business
| Product | Headers | Lead Time | 17 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 12 |
| Pitch | 0.200" (5.08mm) | Height | 8.6 |
| Packaging | Bulk | Termination | Solder |
| Housing Color | Green | Mounting Type | Right Angle |
| Contact Finish | Tin | Number of Rows | 1 |
| Contact Material | 锡 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 86.56 | Termination Rows | 焊接 |
| Termination Style | Through Hole | Header Orientation | 90°, Right Angle |
| Number of Contacts | 17 | Number of Positions | 17 |
| Terminal Block Type | Header, Male Pins, Shrouded (4 Side) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | MSTBA | Industry Aliases | MSTBA 2, 5/17-G-5, 08 |
| Number of Levels | 1 | Positions Per Level | 17 |
