点击放大查看
1757239
| Manufacturer | |
| Description | Pluggable Terminal Blocks MSTB 2.5/24-ST-5.08 Conn Terminal Block F 24 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 24POS STR 5.08MM Printed-circuit board connector MSTB 2,5/24-ST-5,08 Conn Terminal Blocks F 24 POS 5.08mm Screw RA Cable Mount 12A MSTB25/24-ST-508 Phoenix Contact COMBICON MSTB 系列 24路 5.08mm节距 插头外壳 , 螺钉端接, 12A |
| Category |
Business
| Product | Plugs | Lead Time | 22 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Green | Depth | 18.2 mm |
| Pitch | 0.200" (5.08mm) | Height | 15 mm |
| Weight | 4.515067 oz | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Termination | Screw |
| Mounting Type | Cable Mount | Contact Finish | Tin |
| Mounting Style | Cable | Number of Rows | 1 |
| Plug Wire Entry | 180° | Housing Material | Polyamide |
| Length - Overall | 121.92 mm | Termination Rows | 螺钉 |
| Termination Style | Screw | Number of Contacts | 24 |
| Number of Positions | 24 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 24-12 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | MSTB | Features | Retention Latches (Non-Wire Side) |
| Industry Aliases | MSTB 2, 5/24-ST-5, 08 | Number of Levels | 1 |
| Positions Per Level | 24 | ||
Documents & Media
Similar Parts
1758238
Phoenix Contact
プラグ着脱可能ターミナルブロック MSTBV 2 5/24-G-5 08 Conn Shrouded Header HDR 24 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 24POS VERT 5.08MM MSTBV 2,5/24-G-5,08 Pluggable Terminal Blocks MSTBV 2 5/24-G-5 08 HEADER,PITCH:5.08MM,POS24

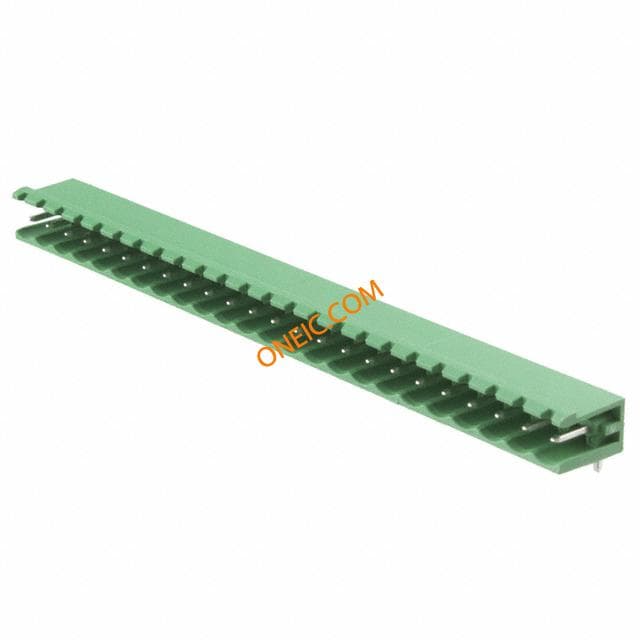

1759237
