点击放大查看
1757019
| Manufacturer | |
| Description | Pluggable Terminal Blocks 5.08 2P PLUG 180DEG Conn Terminal Block F 2 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 2POS STR 5.08MM Conn;TermBlk;Plug;Screw;2;5.08mm;30-12AWG;10A;300V;PA Pluggable terminal block; female; straight; 5.08mm; ways:2; 12A Phoenix Contact 2 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V |
| Category |
Business
| Product | Plugs | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Part # Aliases | 2.5/2-ST-5.08 MSTB | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Number of Poles | 2 |
| Current Rating (Max) | 12 A | Voltage - Input (Min) | 320V |
Mechanical
| Color | Green | Depth | 18.2 |
| Pitch | 0.200" (5.08mm) | Height | 15 |
| Weight | 4.515067 oz | Material | 尼龙 |
| Packaging | Bulk | Wire Gauge | 12-30 AWG |
| Orientation | straight | Termination | Screw |
| Pitch - Post | 5.08mm | Mounting Type | Cable Mount |
| Connector Type | female | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 180° |
| Housing Material | Polyamide | Length - Overall | 10.16 |
| Package Quantity | 50 | Termination Rows | 螺钉拧紧 |
| Termination Style | Screw | Number of Contacts | 2 |
| Number of Positions | 2 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 24-12 | Wire Gauge or Range - mm2 | 30 → 12 AWG |
Product Info
| Spg | 50 | Type | Terminal Block |
| Gender | F | Series | MSTB |
| Features | Retention Latches (Non-Wire Side) | CAD Drawing | 3D CAD 模型 |
| Number of Lines | 2 | Number of Units | 1 |
| Industry Aliases | MSTB 2, 5/ 2-ST-5, 08 | Number of Levels | 1 |
| Positions Per Level | 2 | ||
Documents & Media
Similar Parts
1763074
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm Conn Shrouded Header HDR 4 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 4POS VERT 5.08MM Header for PCB plug connector MDSTBV 2,5/ 2-G-5,08 Header(2position)10AMP(5.08mmpitch)
1802430
Phoenix Contact
プラグ着脱可能ターミナルブロック MDSTBW 2.5/ 2-G-5.08 Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5.08MM Header for PCB plug connector MDSTBW 2,5/ 2-G-5,08 Pluggable Terminal Blocks MDSTBW 2.5/ 2-G-5.08 MDSTBW25/2-G-508
1872460
Phoenix Contact
プラグ着脱可能ターミナルブロック A-MSTBVA 2.5/ 2-G -5.08 Base Strip, Nominal Current 12 A, Nominal Voltage 250 V HEADER TERM BLOCK 2 POS 5.08MM Pluggable Terminal Blocks A-MSTBVA 2.5/ 2-G -5.08 A-MSTBVA25/2-G-508
1788538
Phoenix Contact
Pluggable Terminal Blocks MVSTBU 2 5/ 2-GB-5 0 Conn Terminal Block F 2 POS 5.08mm Screw Panel Mount 12A TERM BLOCK RCPT 2POS 5.08MM Header for PCB plug connector MVSTBU 2,5/ 2-GB-5,08 Conn;TermBlk;Plug;Screw;2;5.08mm;Front;24-12AWG;Green;12A;320V
1757242
Phoenix Contact
Pluggable Terminal Blocks 5.08 2P HEADER 90DEG Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 5.08MM HEADER, RIGHT ANGLE, 5.08MM, 2WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;2Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 2路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A
1859519
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm 180 DEG Conn Shrouded Header HDR 2 POS 5.08mm Press Fit ST Thru-Hole TERM BLOCK HDR 2POS VERT 5.08MM Header for PCB plug connector EMSTBVA 2,5/ 2-G-5,08 Conn;TermBlk;PCB;Header;SnglLvl;Sldr;2Pole;5.08mmPitch;COMBICON
1767371
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm Conn Shrouded Header HDR 2 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 2POS 45DEG 5.08MM Header for PCB plug connector SMSTBA 2,5/ 2-G-5,08 SMSTBA25/2-G-508 Phoenix Contact COMBICON SMSTBA 系列 2路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A
1762062
Phoenix Contact
Pluggable Terminal Blocks 5.08 2x2P HEADER 90D Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5.08MM Header for PCB plug connector MDSTB 2,5/ 2-G-5,08 Conn;TermBlk;PCB;Header;DblLvl;90DegAngl;Sldr;2Pole;5.08mmPitch;COMBICON
1735882
Phoenix Contact
Pluggable Terminal Blocks 2P 5.08mm HDR MSTBW2 5/2-G-5 08 Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 5.08MM Header MSTBW 2,5/ 2-G-5,08 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;2Pole;5.08mmPitch;COMBICON
1755736
Phoenix Contact
Pluggable Terminal Blocks 5.08 2P HEADER 180DG TERM BLOCK HDR 2POS VERT 5.08MM Conn Shrouded Header HDR 2 POS 5.08mm Solder ST Thru-Hole HEADER, VERTICAL, 5.08MM, 2WAY Conn;TermBlk;PCB;Header;SnglLvl;Sldr;2Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBVA 系列 5.08mm节距 2路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A
1902819
Phoenix Contact
Pluggable Terminal Blocks 5.08mm 2P VERT. BLK Conn Shrouded Header HDR 2 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 2POS VERT 5.08MM Header for PCB plug connector MSTBVA 2,5/ 2-G-5,08 THT MSTBVA25/2-G-508THT COMBICON MSTBVA 系列 2路 5.08mm节距 PCB 接线端子块, 焊接端接, 12A
1902741
Phoenix Contact
Pluggable Terminal Blocks 5.08mm 2P R/A BLK Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 5.08MM Header for PCB plug connector MSTBA 2,5/ 2-G-5,08 THT MSTBA25/2-G-508THT COMBICON MSTBA 系列 2路 5.08mm节距 PCB 接线端子块, 焊接端接, 12A
1796930000
weidmuller
Conn Shrouded Header M 2 POS 5mm Solder RA Thru-Hole Box TERM BLOCK HDR 2POS R/A 5MM

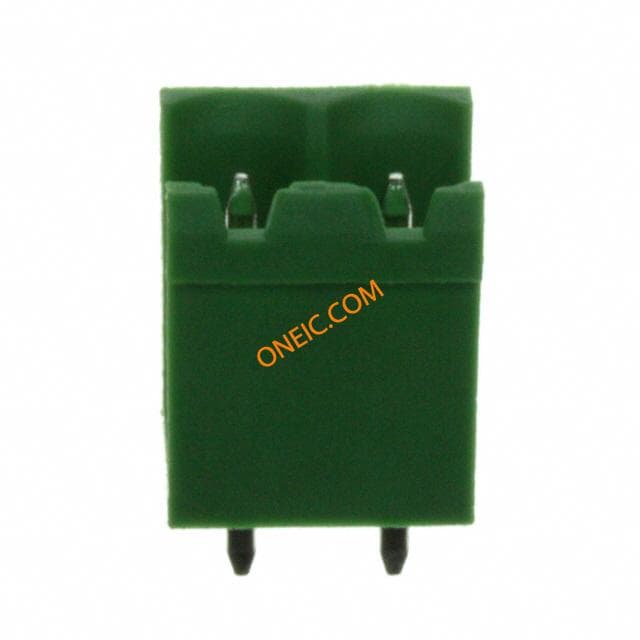

691311500002
