点击放大查看

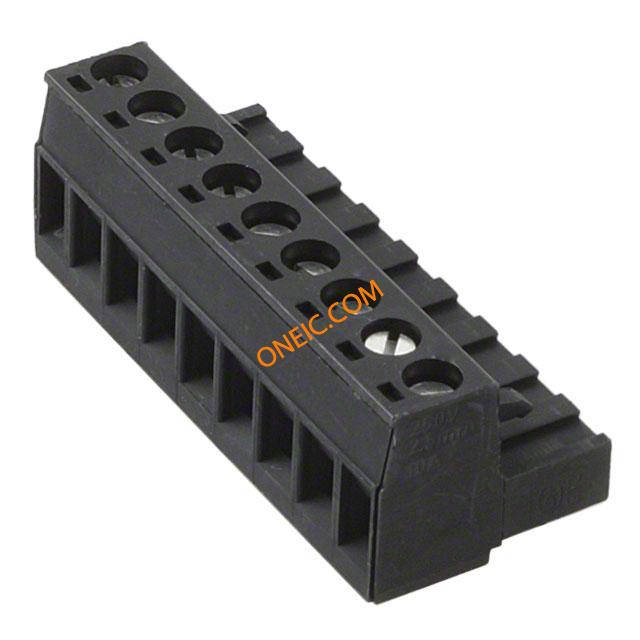

1756395
| Manufacturer | |
| Description | Pluggable Terminal Blocks MSTB 2.5/ 9-ST BK CONNECTOR TERMINAL BLOCKS TERM BLOCK PLUG 9POS STR 5MM Conn Terminal Block M 9 POS 5mm Screw 12A MSTB25/9-STBK |
| Category |
Business
| Product | Plugs | Lead Time | 22 Days |
| Tradename | COMBICON Control | Subcategory | Misc Products |
| Standard Pack | 50 | Product Category | Pluggable Terminal Blocks |
| Standard Package | 1 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
Mechanical
| Color | Black | Pitch | 0.197" (5.00mm) |
| Weight | 1.323 lbs | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Termination | Screw |
| Mounting Type | Free Hanging (In-Line) | Contact Finish | Tin |
| Plug Wire Entry | 180° | Termination Style | Screw |
| Number of Contacts | 9 | Number of Positions | 9 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 24-12 |
Product Info
| Type | PCB Connector | Series | MSTB |
| Features | Retention Latches (Non-Wire Side) | Industry Aliases | MSTB 2, 5/ 9-ST BK |
| Number of Levels | 1 | Positions Per Level | 9 |
