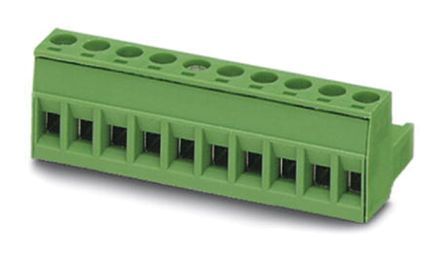

点击放大查看
1754740
| Manufacturer | |
| Description | プラグ着脱可能ターミナルブロック MSTB 2 5/17-ST Conn Terminal Block F 17 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 17POS STR 5MM Printed-circuit board connector MSTB 2,5/17-ST Pluggable Terminal Blocks MSTB 2 5/17-ST MSTB25/17-ST Phoenix Contact COMBICON MSTB 系列 5mm节距 17路 插头外壳, 螺钉端接, 12A |
| Category |
Business
| Product | Plugs | Lead Time | 64 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Standard Pack | 50 | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 18.2 |
| Pitch | 0.197" (5.00mm) | Height | 15 |
| Weight | 12.345887 oz | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Termination | Screw |
| Mounting Type | Cable Mount | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 180° |
| Housing Material | Polyamide | Length - Overall | 85 |
| Termination Rows | 螺钉 | Termination Style | Screw |
| Number of Contacts | 17 | Number of Positions | 17 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 24-12 |
Product Info
| Type | Terminal Block | Gender | F |
| Series | MSTB | Features | Retention Latches (Non-Wire Side) |
| Industry Aliases | MSTB 2, 5/17-ST | Number of Levels | 1 |
| Positions Per Level | 17 | ||
