点击放大查看
1754465
| Manufacturer | |
| Description | Pluggable Terminal Blocks 5.00 3P PLUG 180DEG Conn Terminal Block F 3 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 3POS STR 5MM Printed-circuit board connector MSTB 2,5/ 3-ST Conn Terminal Blocks F 3 POS 5mm Screw RA Cable Mount 12A Conn;TermBlk;Plug;Screw;3;5mm;30-12AWG;10A;300V;PA Phoenix Contact COMBICON MSTB 系列 5mm 节距 3 路 母 绿色 直 插头, 插入式, 螺钉端接 |
| Category |
Business
| Product | Plugs | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Part # Aliases | MSTB2.5/3-ST | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Voltage - Supply | 300V |
| Current Rating (Max) | 12 A | Voltage - Input (Min) | 250V@IEC|300V@UL |
| Voltage - Supply (Min) | 250V | ||
Mechanical
| Color | Green | Depth | 18.2 mm |
| Pitch | 0.197" (5.00mm) | Width | 10mm |
| Height | 15 mm | Weight | 4.409 lbs |
| Material | 聚酰胺 | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Orientation | 直 |
| Termination | Screw | Mounting Type | Cable Mount |
| Connector Type | 母座 | Contact Finish | Tin |
| Mounting Style | Cable | Number of Rows | 1 |
| Plug Wire Entry | 180° | Housing Material | Polyamide |
| Length - Overall | 15 mm | Termination Rows | 螺钉 |
| Cable Termination | 180° | Termination Style | Screw |
| Number of Contacts | 3 | Number of Positions | 3 |
| Terminal Block Type | Plug, Female Sockets | Number of Poles per Deck | 3 |
| Wire Gauge or Range - AWG | 24-12 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | MSTB | Features | Retention Latches (Non-Wire Side) |
| Main Purpose | Retention Latches (Non-Wire Side) | Industry Aliases | MSTB 2, 5/ 3-ST |
| Number of Levels | 1 | Positions Per Level | 3 |
| Output Configuration | Free Hanging (In-Line) | ||
Documents & Media
Similar Parts
0708124
Phoenix Contact
Pluggable Terminal Blocks DFK-MSTB 2 5/ 3-G WW TERM BLOCK
1738999
Phoenix Contact
Pluggable Terminal Blocks MSTB 2.5/ 3-G (13) Conn Wire to Board HDR 3 POS 5mm TERM BLOCK HDR 3POS R/A 5MM MSTB25/3-G(13)
1763045
Phoenix Contact
プラグ着脱可能ターミナルブロック MDSTBV 2 5/ 3-G Conn Shrouded Header HDR 3 POS 5mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 5MM Header for PCB plug connector MDSTBV 2,5/ 3-G Pluggable Terminal Blocks MDSTBV 2 5/ 3-G MDSTBV25/3-G
1754452
Phoenix Contact
Pluggable Terminal Blocks 5.00 3P HEADER 90DEG Conn Shrouded Header HDR 3 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 5MM Header for PCB plug connector MSTB 2,5/ 3-G Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;3Pole;5mmPitch;COMBICON
1762059
Phoenix Contact
Pluggable Terminal Blocks 2X3P 5MM HEADER DBL LEVEL Conn Shrouded Header HDR 6 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5MM Header for PCB plug connector MDSTB 2,5/ 3-G Conn;TermBlk;PCB;Header;DblLvl;90DegAngl;Sldr;3Pole;5mmPitch;COMBICON
1757488
Phoenix Contact
Pluggable Terminal Blocks 5.00 3P HEADER 90DEG Conn Shrouded Header HDR 3 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 5MM Header for PCB plug connector MSTBA 2,5/ 3-G Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;3Pole;5mmPitch;COMBICON

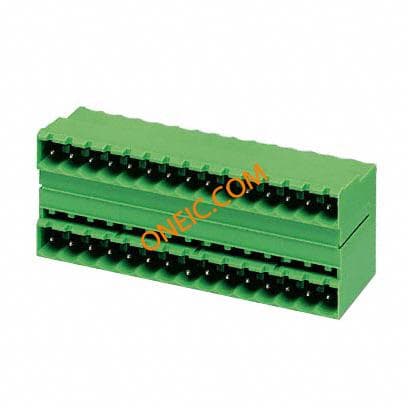

1736687
