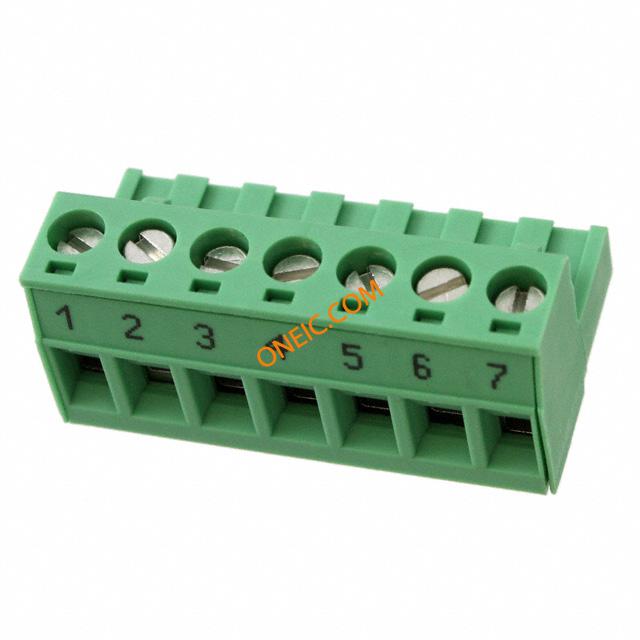

1746583
| Manufacturer | |
| Description | Pluggable Terminal Blocks 5.08mm PRE-PRINTED 7P 1-7 LEFT TO RIGHT Conn Terminal Block 7 POS 5.08mm 12A TERM BLOCK PLUG 7POS STR 5.08MM Plug,TerminalBlock;12A;250V;5.08mm;7position,screw,Pre-Printed |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Pitch | 0.200" (5.08mm) |
| Weight | 0.428226 oz | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Termination | Screw |
| Mounting Type | Free Hanging (In-Line) | Contact Finish | Tin |
| Plug Wire Entry | 180° | Housing Material | Polyamide |
| Termination Style | Screw | Number of Contacts | 7 |
| Number of Positions | 7 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 24-12 | ||
Product Info
| Type | Terminal Block | Series | MSTB |
| Features | Positions Stamped, Retention Latches (Non-Wire Side) | Number of Levels | 1 |
| Positions Per Level | 7 | ||
