1734207
| Manufacturer | |
| Description | Pluggable Terminal Blocks MSTBT 2.5/ 9-ST-5,08 Conn Terminal Block F 9 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 9POS STR 5.08MM Plug MSTBT 2,5/ 9-ST-5,08 MSTBT25/9-ST-508 Phoenix Contact COMBICON MSTBT 系列 9路 5.08mm节距 插头外壳 , 螺钉端接, 12A |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 18.2 |
| Pitch | 0.200" (5.08mm) | Height | 15 |
| Weight | 4.585615 oz | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Termination | Screw |
| Mounting Type | Cable Mount | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 180° |
| Housing Material | Polyamide | Length - Overall | 45.72 |
| Termination Rows | 螺钉 | Termination Style | Screw |
| Number of Contacts | 9 | Number of Positions | 9 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 24-12 |
Product Info
| Type | Terminal Block | Gender | F |
| Series | MSTBT | Features | Retention Latches (Non-Wire Side) |
| Number of Levels | 1 | Positions Per Level | 9 |
Documents & Media
Similar Parts
1755804
Phoenix Contact
Pluggable Terminal Blocks 5.08 9P HEADER 180DG Conn Shrouded Header HDR 9 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 9POS VERT 5.08MM Conn Shrouded Header HDR 9 POS 5.08mm Solder ST Th Conn;TermBlk;PCB;Header;SnglLvl;Sldr;9Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBVA 系列 5.08mm节距 9路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A
1741847
Phoenix Contact
Pluggable Terminal Blocks MSTBVA 2.5/ 9-G-5.08 BK Conn Wire to Board HDR 9 POS 5.08mm TERM BLOCK HDR 9POS VERT 5.08MM Printed-circuit board connector MSTBVA 2,5/ 9-G-5,08 BK MSTBVA25/9-G-508BK
1758089
Phoenix Contact
プラグ着脱可能ターミナルブロック 5.08 9P HEADER 180DG Conn Shrouded Header HDR 9 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 9POS VERT 5.08MM Header for PCB plug connector MSTBV 2,5/ 9-G-5,08 Pluggable Terminal Blocks 5.08 9P HEADER 180DG Conn;TermBlk;PCB;Header;SnglLvl;Sldr;9Pole;5.08mmPitch;COMBICON
1859580
Phoenix Contact
プラグ着脱可能ターミナルブロック 9P 5.08mm 180 DEG Conn Shrouded Header HDR 9 POS 5.08mm Press Fit ST Thru-Hole TERM BLOCK HDR 9POS VERT 5.08MM Header for PCB plug connector EMSTBVA 2,5/ 9-G-5,08 Pluggable Terminal Blocks 9P 5.08mm 180 DEG Conn;TermBlk;PCB;Header;SnglLvl;Sldr;9Pole;5.08mmPitch;COMBICON
1757310
Phoenix Contact
Pluggable Terminal Blocks 5.08 9P HEADER 90DEG Conn Shrouded Header HDR 9 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 9POS R/A 5.08MM Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;9Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 9路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A

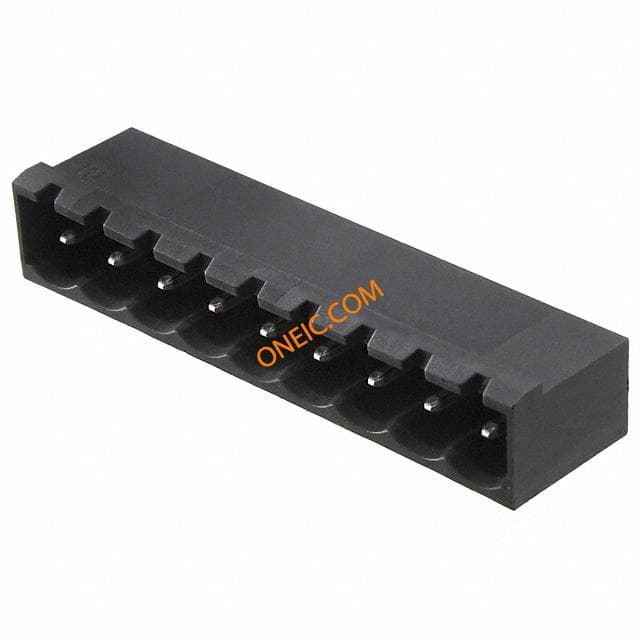

1746952
Phoenix Contact
Pluggable Terminal Blocks MSTBA 2.5/ 9-G-5.0 Conn Wire to Board HDR 9 POS 5.08mm TERM BLOCK HDR 9POS R/A 5.08MM Accessories, MSTBVA 2,5/13-G-5,08 AU MSTBA25/9-G-508BK
1759088
Phoenix Contact
Pluggable Terminal Blocks 5.08 9P HEADER 90DEG Conn Shrouded Header HDR 9 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 9POS R/A 5.08MM Header for PCB plug connector MSTB 2,5/ 9-G-5,08 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;9Pole;5.08mmPitch;COMBICON
1762444
Phoenix Contact
Pluggable Terminal Blocks MDSTB 2 5/ 9-G1-5 08 Conn Shrouded Header HDR 18 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 18POS R/A 5.08MM Header for PCB plug connector MDSTB 2,5/ 9-G1-5,08 MDSTB25/9-G1-508 Phoenix Contact COMBICON MDSTB 系列 9路 5.08mm节距 PCB 接线端子块 , 焊接端接, 10A

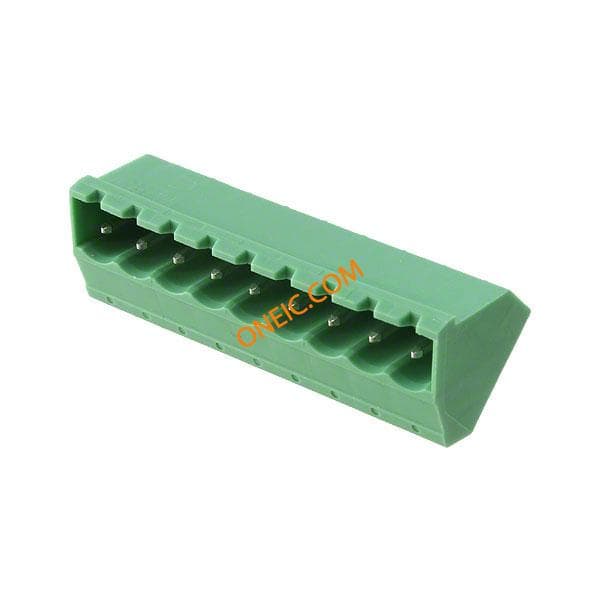

1767449
