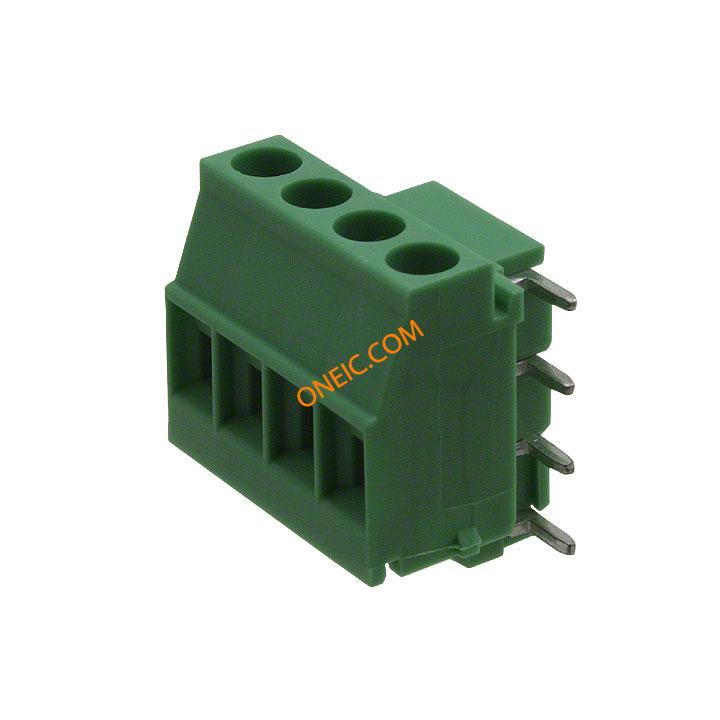

1707247
| Manufacturer | |
| Description | Fixed Terminal Blocks MKDSO 2 5/ 4-R CONN TERM BLOCK 4POS 5MM Basic terminal block MKDSO 2,5/ 4-R MKDSO25/4-R Phoenix Contact COMBICON MKDSO 系列 5mm 节距 4 路 印刷电路板接线端子块, 通孔, 螺钉端接 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Fixed Terminal Blocks | Standard Pack | 250 |
| Product Category | Fixed Terminal Blocks | Standard Package | 250 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Not Applicable | ||
Electrical
| Current | 20A | Voltage | 300V |
| Voltage Rating | 300 V | Current Rating (Max) | 10 A |
Mechanical
| Color | Green | Pitch | 0.197" (5.00mm) |
| Length | 15.3mm | Weight | 0.291927 oz |
| Material | 聚酰胺 | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Screw Thread | M3 |
| Mounting Type | Through Hole | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Housing Material | Polyamide (PA), Nylon | Termination Rows | 螺钉 |
| Wire Termination | Screw - Rising Cage Clamp | Mating Orientation | Horizontal with Board |
| Number of Contacts | 4 | Wire Gauge or Range - AWG | 28-12 |
| Wire Gauge or Range - mm2 | 12 | ||
Product Info
| Type | Wire to Board | Series | COMBICON MKDSO |
| Number of Levels | 1 | Positions Per Level | 4 |
