点击放大查看
1648377
| Manufacturer | |
| Description | Heavy Duty Power Connectors HC-B 6-A-DT-PER-F Conn HEAVYCON Adapter Insert F/F 6/6 POS Panel Mount TERM ADAPTER FMALE 6POS PUSHIN INSERT FEMALE 6POS TERM BLOCK HC-B6-A-DT-PER-F |
| Category |
Business
| Tradename | HEAVYCON | Other Names | HC-B 6-A-DT-PER-F |
| Product Category | Heavy Duty Power Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 13A |
| Voltage - Input (Min) | 500V | ||
Mechanical
| Size | B6 | Height | 59 |
| Weight | 2.587345 oz | Packaging | Bulk |
| Mounting Type | Panel Mount | Connector Type | Insert |
| Contact Finish | Silver | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Polyamide |
| Termination Style | Terminal Block, Straight - Push In | 1st Contact Gender | F/F |
| Number of Contacts | 6/6 | Number of Positions | 6 |
Product Info
| Type | HEAVYCON Adapter Insert | Gender | Female |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
1644326
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B-3PE Misc Products HEAVYCON HOUSING/ACCESSORY Heavy Duty Power Connectors HC-B-3PE HC-B-3PE Phoenix Contact PE Multiplier
1686478
Phoenix Contact
ターミナルブロック・ツールとアクセサリ CP-HC Misc Products KEYING PROFILE 4SECTION Terminal Block Tools & Accessories CP-HC CP-HC
1678156
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B6-SMLD-74/O1PG21 Box Mounting Base, With Single Locking Latch, Height 74 Mm, Without Screw Connection, 1X Pg21, With Protective Covers BOX MOUNTING BASE 74 MM Heavy Duty Power Connectors HC-B6-SMLD-74/O1PG21 HC-B6-SMLD-74/O1PG21 Phoenix Contact HC-B 系列 连接器外壳 , 适用于BB10，DD24，HC-B6
1775240
Phoenix Contact
Terminal Block Tools & Accessories HC-KA-FE Foot Element, For Mounting On Mounting Rail NS 32, Mounting Rail NS 35/7.5 Or Mounting Rail FOOT ELEMENT DIN RAIL Foot element for mounting terminal adapters on DIN rails HC-KA-FE FOOTELEMENT
1771147
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 6-AMLD Heavycon Panel Mounting Base B6, With Single Locking Latch, Height HEAVYCON PANEL MOUNTING BASE Heavy Duty Power Connectors HC-B 6-AMLD HEAVYCONpanelmountingbaseB6,withsinglelockinglatch,27mmwithlatch

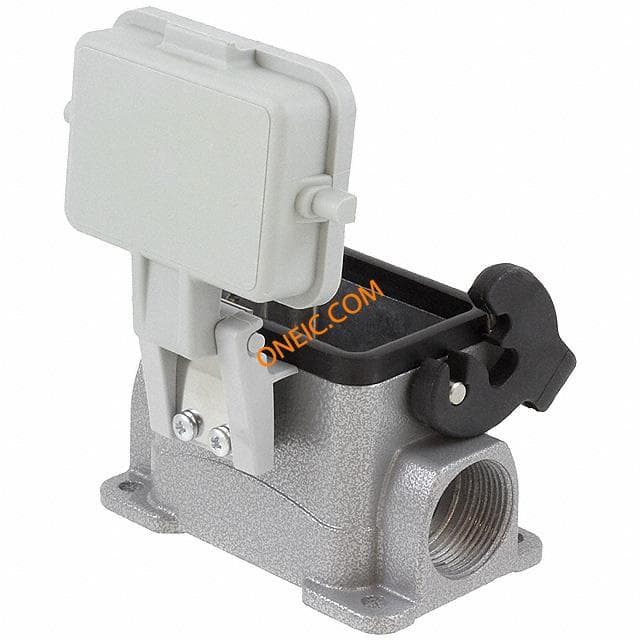

1604728
Phoenix Contact
Heavy Duty Power Connectors HC-B 6-SMLD-52/01M25 HEAVYCON Box Mounting Base B6, With Single Locking Latch HEAVYCON MOUNTING BASE B6 Housing for heavy-duty plug connectors HC-B6-SMLD-52/O1M25 HEAVYCON box mounting base B6, with single locking latch and cover. Height 52 mm, with support 1xM25 HC-B6-SMLD-52/O1M25
1676860
Phoenix Contact
Heavy Duty Power Connectors HC-CBU Keying Socket For Coding Up To 16 Plug Connectors KEYING SOCKET FOR CODING 16 PLUG Keying element HC-CBU KEYINGPEGFORCODING16PLUGCONNECTORS
1771176
Phoenix Contact
Heavy Duty Power Connectors HC-B6-SMLD-52/M1PG16 Box Mounting Base, With Single Locking Latch BOX MOUNTING BASE LOCKING LATCH Housing for heavy-duty plug connectors HC-B 6-SMLD-52/M1PG16 HC-B6-SMLD-52/M1PG16 Phoenix Contact HC-B 系列 连接器外壳 , PG16螺纹
1604175
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 6-TMB-100/01STM 20G-STA Connector Accessories Sleeve Housing Straight Aluminum Die Cast Powder Finish Gray HEAVYCON SLEEVE HOUSING Housing HC-B6-TMB-100/O1STM20G-STA Heavy Duty Power Connectors HC-B 6-TMB-100/01STM 20G-STA HC-B6-TMB-100/O1STM20G-STA
1648380
Phoenix Contact
Heavy Duty Power Connectors HC-B 6-A-DT-PER-M Conn HEAVYCON Adapter Insert F/F 6/6 POS Panel Mount TERM ADAPTER MALE 6POS PUSHIN INSERT MALE 6POS TERMINAL BLOCK HC-B6-A-DT-PER-M
1660083
Phoenix Contact
Heavy Duty Power Connectors HC-VSH Locking Screw Barrel To Firmly Connect Contact Inserts And Railmountable Terminal Adapters LOCKING SCREW BARREL Locking screw barrel HC-VSH HC-VSH Phoenix Contact 锁紧螺钉
1771163
Phoenix Contact
Heavy Duty Power Connectors HC-B 6-SML-52/ M2PG16 Box Mounting Base, With Single Locking Latch, Height 52 Mm, With Screw Connection, 2X Pg16 BOX MOUNTING BASE 52MM Housing for heavy-duty plug connectors HC-B 6-SML-52/M2PG16 HC-B6-SML-52/M2PG16
1604081
Phoenix Contact
Heavy Duty Power Connectors HC-B 6-TMS-100/ 01STM20S-STA Connector Accessories Sleeve Housing Aluminum Gray HEAVYCON SLEEVE HOUSING Housing HC-B6-TMS-100/O1STM20S-STA HEAVYCON ADVANCE standard powder-coated sleeve housing B6, with screw locking, height 100 mm, with 1xM20 thread, lateral cable outlet HEAVYCONPOWDER-COATEDSLEEVEHOUSINGB6

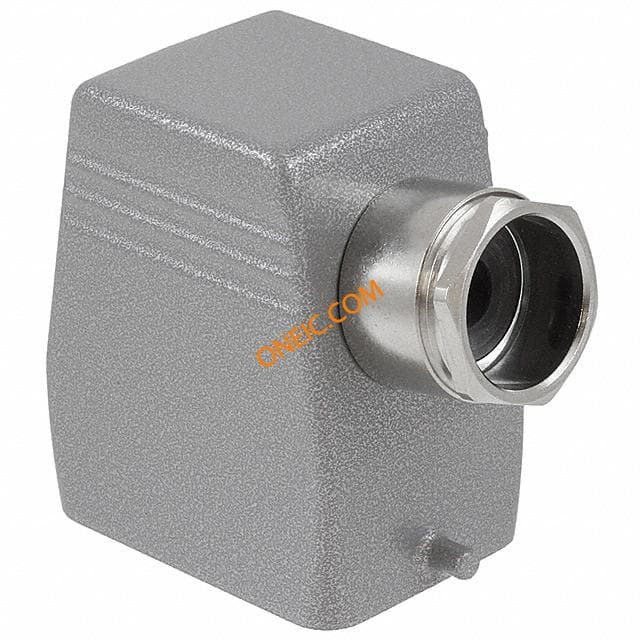

1679634
