点击放大查看
1645969
| Manufacturer | |
| Description | ヘビーデューティパワーコネクタ Insert Male 3P Crimp W/O Crimp Cont Conn Housing F 3 POS Crimp ST Cable Mount HEAVYCON CONTACT INSERT MODULE Heavy Duty Power Connectors Insert Male 3P Crimp W/O Crimp Cont HC-M-03-MOD-STC |
| Category |
Business
| Tradename | HEAVYCON | Standard Pack | 2 |
| Product Category | Heavy Duty Power Connectors | Standard Package | 2 |
| Factory Pack Quantity | 2 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 40 A |
Mechanical
| Weight | 10.582189 oz | Packaging | Bulk |
| Contact Type | CK 4.0-ED | Mounting Type | Straight |
| Connector Type | Module without Contacts | Contact Material | Copper Alloy |
| Housing Material | Polycarbonate (PC) | Termination Style | Crimp |
| Number of Contacts | 3 | Number of Positions | 3 |
| Wire Gauge or Range - AWG | 16-8 | ||
Product Info
| Type | Housing | Gender | F |
| Series | HC-M-03 | Product Type | Inserts |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Similar Parts
1679304
Phoenix Contact
Heavy Duty Power Connectors HC-M-MHR-A4-N HEAVYCON Hinged Retaining Frame, For Supporting Base Element HCB 16, For 4 Modules HEAVYCON HINGED RETAINING FRAME Hinged retaining frame HC-M-MHR-A4-N Heavy Duty Power Connectors Hinged Frame for B16 Housing, 4 Modules HINGEDRETAININGFRAMEFOR4MODULES
1663255
Phoenix Contact
Heavy Duty Power Connectors CK4.0-ED-4.00ST AG Contact PIN Crimp ST Cable Mount TURNED 4.0 CRIMP CONTACT Crimp contact CK4,0-ED-4,00ST AG Heavy Duty Power Connectors Turn 4.0 Crimp Male Diam. 4.00mm, Ag CK40-ED-400STAG
1663268
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 4.0 Crimp Male Diam. 6.00mm, Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 10AWG Crimp contact CK4,0-ED-6,00ST AG Heavy Duty Power Connectors Turn 4.0 Crimp Male Diam. 6.00mm, Ag CK40-ED-600STAG
1663242
Phoenix Contact
Heavy Duty Power Connectors Turn 4.0 Crimp Male Diam. 2.50mm, Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 14AWG Crimp contact CK4,0-ED-2,50ST AG CK40-ED-250STAG
1679281
Phoenix Contact
Heavy Duty Power Connectors Hinged Frame for B6 Housing, 2 Modules HEAVYCON Hinged Retaining Frame, For Supporting Base Element HCB 6, For 2 Modules HEAVYCON HINGED RETAINING FRAME Hinged retaining frame HC-M-MHR-A2-N HC-M-MHR-A2-N

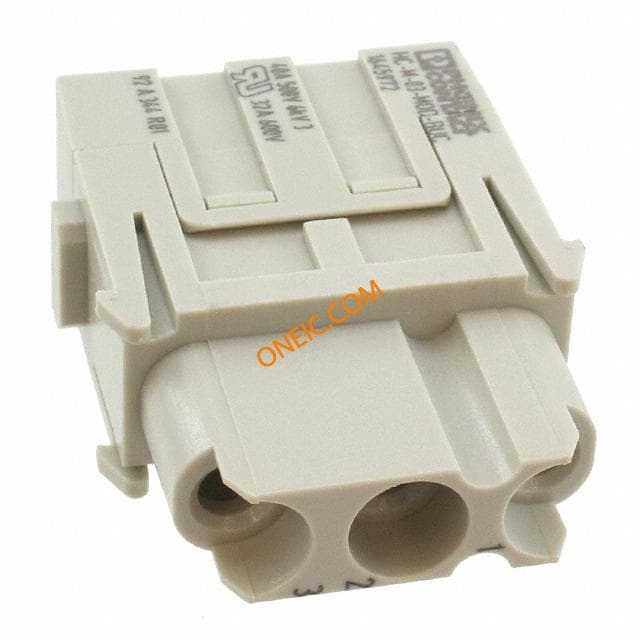

1645972
