1636334
| Manufacturer | |
| Description | Heavy Duty Power Connectors Male K12/2 12 Power, 2 Control, Crimp Conn HEAVYCON Insert F 12Power/2Signal POS Crimp ST Panel Mount HEAVYCON INSERT MODULE INSERT MALE 12+2POS+1GND CRIMP HC-K12/2-ESTC |
| Category |
Business
| Tradename | HEAVYCON | Other Names | HC-K12/ 2-ESTC |
| Product Category | Heavy Duty Power Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 40/10 |
| Voltage - Input (Min) | 690V/250V | ||
Mechanical
| Size | B16 | Depth | 39.6 |
| Height | 34 | Weight | 2.656129 oz |
| Packaging | Bulk | Termination | Crimp |
| Contact Type | CK 1.6-ED, CK 4.0-ED | Mounting Type | Straight |
| Connector Type | Insert without Contacts | Contact Finish | Silver |
| Number of Rows | 3/2 | Contact Material | Copper Alloy |
| Housing Material | Polycarbonate | Length - Overall | 84.5 |
| Termination Style | Crimp | 1st Contact Gender | F |
| Number of Contacts | 12Power/2Signal | Number of Positions | 12+2+Ground |
Product Info
| Type | HEAVYCON Insert | Gender | Male |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Similar Parts
1673850
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-TFL-76/ O1PG29S Sleeve Housing, For Single Locking Latch, Height 76mm, Without Screw Connection, 1X PG29, Lateral Cable Entry HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 16-TFL-76/O1PG29S HC-B16-TFL-76/O1PG29S
1636347
Phoenix Contact
ヘビーデューティパワーコネクタ Female K12/2 12 Pwr 2 Control, Crimp Conn HEAVYCON Insert F 14 POS Crimp ST Panel Mount HEAVYCON INSERT MODULE Heavy Duty Power Connectors Female K12/2 12 Pwr 2 Control, Crimp INSERT FEMALE 12+2POS+1GND CRIMP HC-K12/2-EBUC
1674875
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 1.5mm Au Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 16AWG Crimp contact CK1,6-ED-1,50ST AU Turned 1.6 crimp contact, individual male contact, core diameter 1.5 mm², gold-plated TURNED1.6CRIMPCONTACTMALE

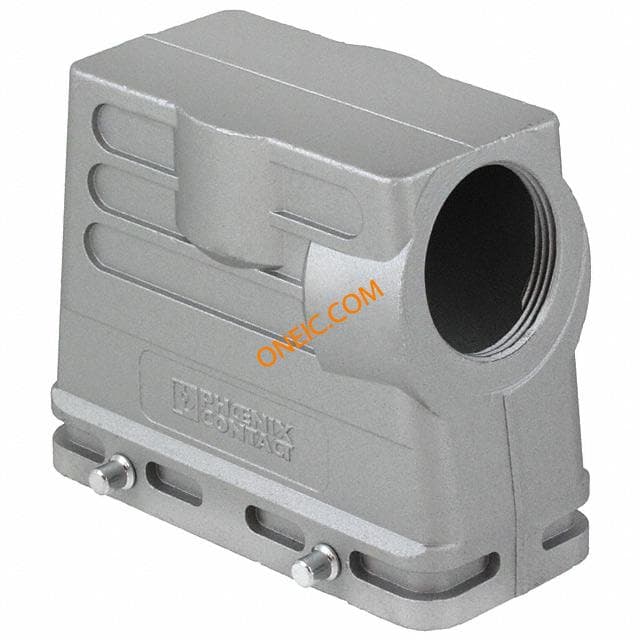

1642593
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-TFQ-76/O1 STM32S-EMV HEAVYCON B16 Sleeve Housing, For Double Locking Latch HEAVYCON SLEEVE HOUSING HC-B16-TFQ-76/O1STM32S-EMV
1604806
Phoenix Contact
Heavy Duty Power Connectors HC-B16-TFQ-45/O1M25G Misc Products SLEEVE HSNG B16 FOR DOUBLE LOCK Housing for heavy-duty plug connectors HC-B 16-TFQ-45/O1M25G HC-B16-TFQ-45/O1M25G
1674927
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 2.5mm Au Contact PIN Crimp ST Cable Mount TURNED 1.6 CRIMP CONTACT MALE Crimp contact CK1,6-ED-2,50ST AU CK16-ED-250STAU Phoenix Contact HC-M 系列 公插 压接触点 , 额定电流 0.005A/ 5 V, 适用于HC-D、HC-DD、HC-M-12、HC-M-EMC、VC-D

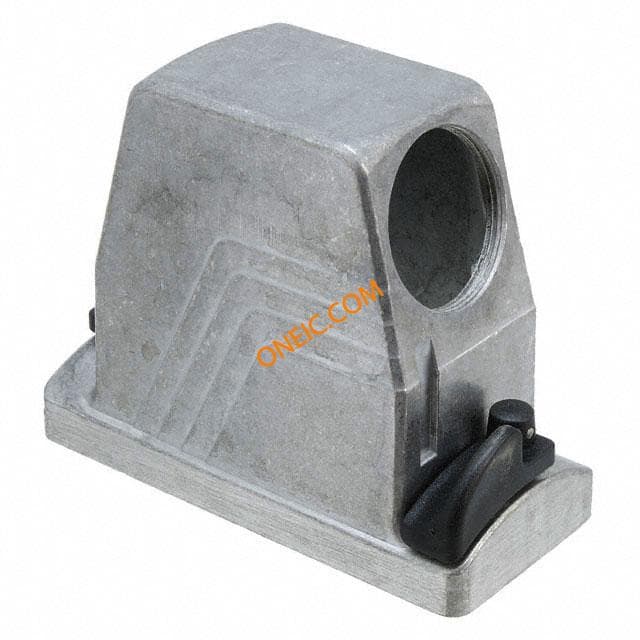

1460372
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-TMB-100/ O1STM40S-EEE HEAVYCON SLEEVE HOUSING HC-B16-TMB-100/O1STM40S-EEE

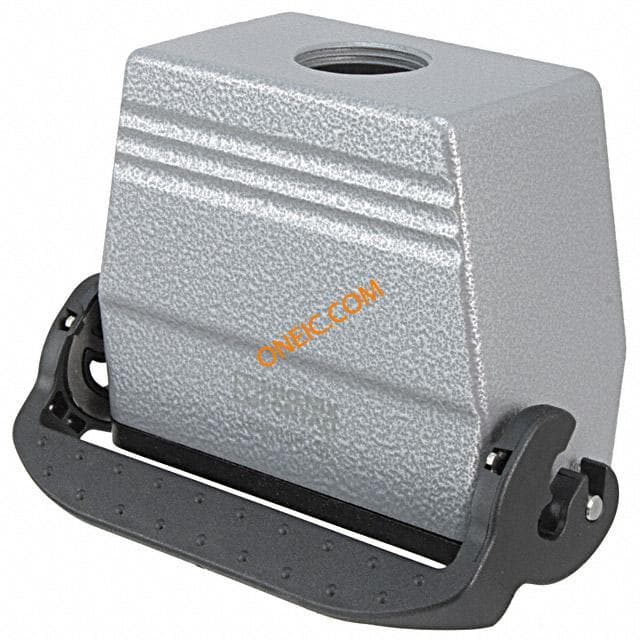

1646890
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B16-KML-80/ 01STM25 Heavycon Coupling Housing B16, With Single Locking Latch, Height 80Mm, With Thread 1Xm25 HEAVYCON COUPLING HOUSING B16 Heavy Duty Power Connectors HC-B16-KML-80/ 01STM25 HC-B16-KML-80/O1STM25
1775570
Phoenix Contact
Heavy Duty Power Connectors HC-B16TMQ-76/M1PG29S Connector Accessories Sleeve Housing Aluminum Gray SLEEVE HOUSING DBL LOCKING LATCH Housing for heavy-duty plug connectors HC-B 16-TMQ-76/M1PG29S HC-B16-TMQ-76/M1PG29S
1663239
Phoenix Contact
Heavy Duty Power Connectors Turn 4.0 Crimp Male Diam. 1.5mm, Ag Contact PIN Crimp ST Cable Mount TURNED 4 CRIMP CONTACT MALE Crimp contact CK4,0-ED-1,50ST AG CK40-ED-150STAG

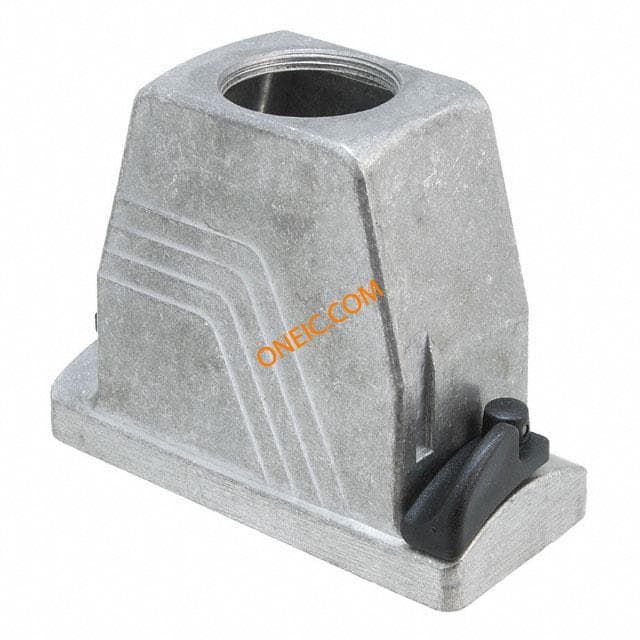

1460371
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 16-TMB-100/ O1STM40G-EEE HC-B 16-TMB-100/O1STM40G-EEE HEAVYCON SLEEVE HOUSING Heavy Duty Power Connectors HC-B 16-TMB-100/ O1STM40G-EEE HC-B16-TMB-100/O1STM40G-EEE

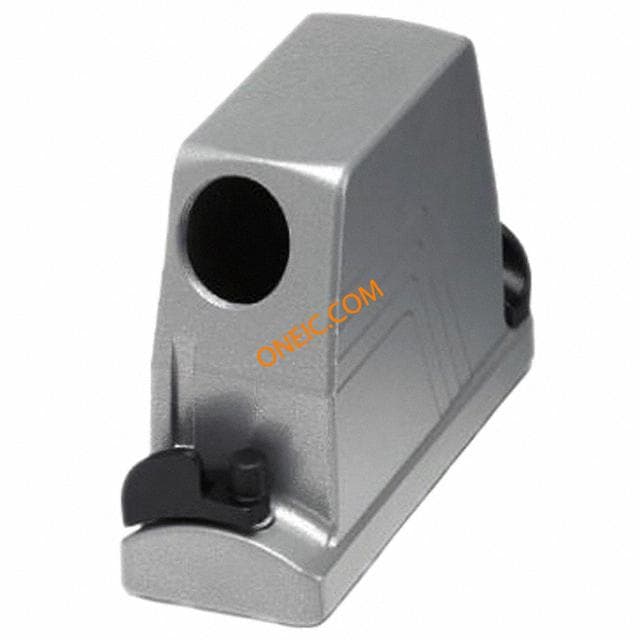

1690244
Phoenix Contact
Heavy Duty Power Connectors HC-B16-TMS-100/ 01STM32S-STA Misc Products HEAVYCON SLEEVE HOUSING HC-B16-TMS-100/O1STM32S-STA
1771545
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B16-TMQ76/M1PG21G Connector Accessories Sleeve Housing SLEEVE HOUSING DBL LOCKING LATCH Housing for heavy-duty plug connectors HC-B 16-TMQ-76/M1PG21G Heavy Duty Power Connectors HC-B16-TMQ76/M1PG21G HC-B16-TMQ-76/M1PG21G
1673711
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-SMLD-67/ O1PG21 Box Mounting Base, With Single Locking Latch, Height 67 Mm, With A Support 1X Pg21, With A Protective Cover BOX MOUNTING BASE 67 MM HC-B16-SMLD-67/O1PG21 Phoenix Contact HC-B 系列 连接器外壳
1663352
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 0.75mm Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 18AWG Crimp contact CK1,6-ED-0,75ST AG TURNED1.6CRIMPCONTACTMALE
1580498
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 16-TMSO1 STM25G/M20G-EEE HEAVYCON ADVANCE SLEEVE HOUSING B16 WITH HIGH-GRADE STEEL HEAVYCON SLEEVE HOUSING Heavy Duty Power Connectors HC-B 16-TMSO1 STM25G/M20G-EEE Connector Accessories Sleeve Housing HC-B16-TMSO1STM25G/M20G-EEE

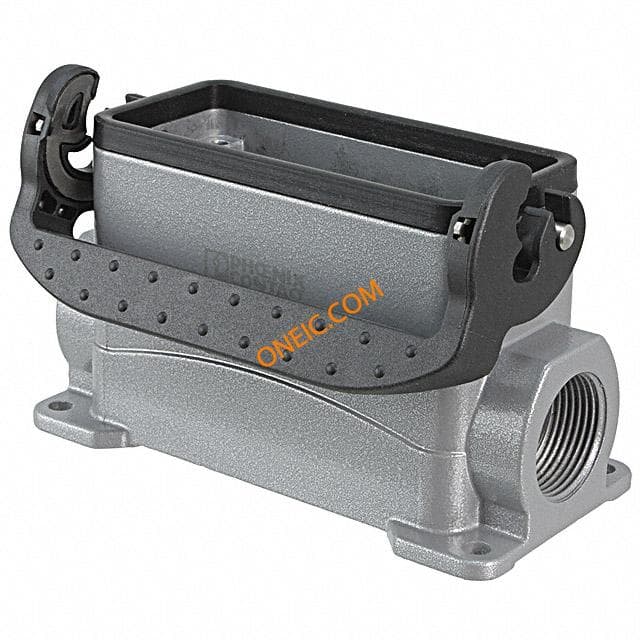

1604785
