| Description | Heavy Duty Power Connectors Insert Male 3 Pwr /4 Control, Crimp Conn HEAVYCON Contact Insert Module PIN 3Power/4Control POS Crimp ST MODULE MALE 3+4POS CRIMP HC-M-03/04-MOD-STC Phoenix Contact 触点模块 |
| Category |
Business
| Tradename | HEAVYCON | Other Names | HC-M-03/04-MOD-STC |
| Product Category | Heavy Duty Power Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 10 A, 40 A |
| Voltage - Input (Min) | 830V | ||
Mechanical
| Depth | 44.3 | Height | 14.6 |
| Weight | 0.515705 oz | Packaging | Bulk |
| Termination | Crimp | Contact Type | CK 1.6-ED, CK 4.0-ED |
| Mounting Type | Straight | Connector Type | Module without Contacts |
| Insertion Force | Male | Contact Material | Copper Alloy |
| Housing Material | Polycarbonate (PC) | Length - Overall | 34.2 |
| Termination Style | Crimp | 1st Contact Gender | PIN |
| Number of Contacts | 3Power/4Control | Number of Positions | 3+4 |
| Wire Gauge or Range - AWG | 16-10, 26-14 | ||
Product Info
| Type | HEAVYCON Contact Insert Module | Gender | Male |
| Series | Heavycon | CAD Drawing | 3D CAD 模型 |
| Product Type | Inserts | Accessory Type | 触点插件 |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
1663255
Phoenix Contact
Heavy Duty Power Connectors CK4.0-ED-4.00ST AG Contact PIN Crimp ST Cable Mount TURNED 4.0 CRIMP CONTACT Crimp contact CK4,0-ED-4,00ST AG Heavy Duty Power Connectors Turn 4.0 Crimp Male Diam. 4.00mm, Ag CK40-ED-400STAG
1663349
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Male Diam. 0.5mm Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 20AWG Crimp contact CK1,6-ED-0,50ST AG Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 0.5mm Ag TURNED1.6CRIMPCONTACTMALE TURNED 1.6 CRIMP CONTACT MALE
1663365
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Male Diam. 0.75-1.00mm Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 18AWG Phoenix Contact 1663365 Crimp Contact Terminal Block, Series: CK Crimp contact CK1,6-ED-1,00ST AG Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 0.75-1.00mm Ag TURNED1.6CRIMPCONTACTMALE Phoenix Contact CK 系列 压接触点
1663268
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 4.0 Crimp Male Diam. 6.00mm, Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 10AWG Crimp contact CK4,0-ED-6,00ST AG Heavy Duty Power Connectors Turn 4.0 Crimp Male Diam. 6.00mm, Ag CK40-ED-600STAG
1674901
Phoenix Contact

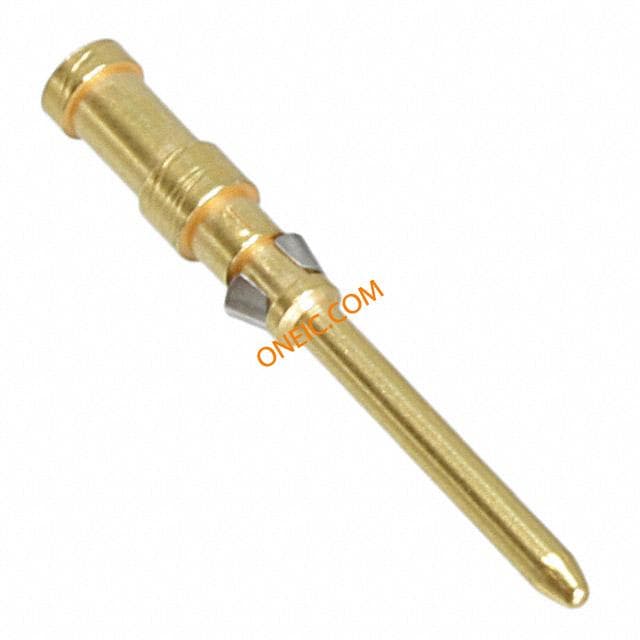

ヘビーデューティパワーコネクタ CK1.6-ED-0.37ST AU Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 24-22AWG Crimp contact CK1,6-ED-0,37ST AU Heavy Duty Power Connectors CK1.6-ED-0.37ST AU TURNED1.6CRIMPCONTACTMALE
1674875
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 1.5mm Au Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 16AWG Crimp contact CK1,6-ED-1,50ST AU Turned 1.6 crimp contact, individual male contact, core diameter 1.5 mm², gold-plated TURNED1.6CRIMPCONTACTMALE
1663242
Phoenix Contact
Heavy Duty Power Connectors Turn 4.0 Crimp Male Diam. 2.50mm, Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 14AWG Crimp contact CK4,0-ED-2,50ST AG CK40-ED-250STAG
1884995
Phoenix Contact
Heavy Duty Power Connectors Fiber Opt Male Cont POF, for VC-D Insert Contact PIN/SKT Crimp ST Cable Mount FIBER OPTIC MALE CONTACT POF POF male contact CK1,6-ED-ST-POF CK16-ED-ST-POF
1679281
Phoenix Contact

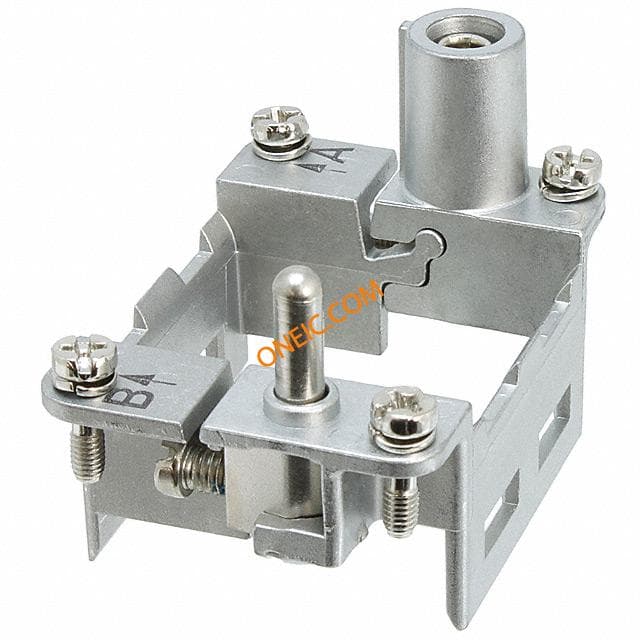

Heavy Duty Power Connectors Hinged Frame for B6 Housing, 2 Modules HEAVYCON Hinged Retaining Frame, For Supporting Base Element HCB 6, For 2 Modules HEAVYCON HINGED RETAINING FRAME Hinged retaining frame HC-M-MHR-A2-N HC-M-MHR-A2-N
1674927
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 2.5mm Au Contact PIN Crimp ST Cable Mount TURNED 1.6 CRIMP CONTACT MALE Crimp contact CK1,6-ED-2,50ST AU CK16-ED-250STAU Phoenix Contact HC-M 系列 公插 压接触点 , 额定电流 0.005A/ 5 V, 适用于HC-D、HC-DD、HC-M-12、HC-M-EMC、VC-D
1674914
Phoenix Contact
ヘビーデューティパワーコネクタ CK1.6-ED-0.75ST AU Turned Male Contacts, Diameter 1.6mm, For HCM12, HCMEMV, HCD, HCDD And VCD Contact Carriers CRIMP CONTACT PIN 18AWG Crimp contact CK1,6-ED-0,75ST AU Heavy Duty Power Connectors CK1.6-ED-0.75ST AU CK16-ED-075STAU Phoenix Contact HC-M 系列 公插 压接触点 , 额定电流 5mA/ 5 V, 适用于HC-D、HC-DD、HC-M-12、HC-M-EMC、VC-D
1679317
Phoenix Contact

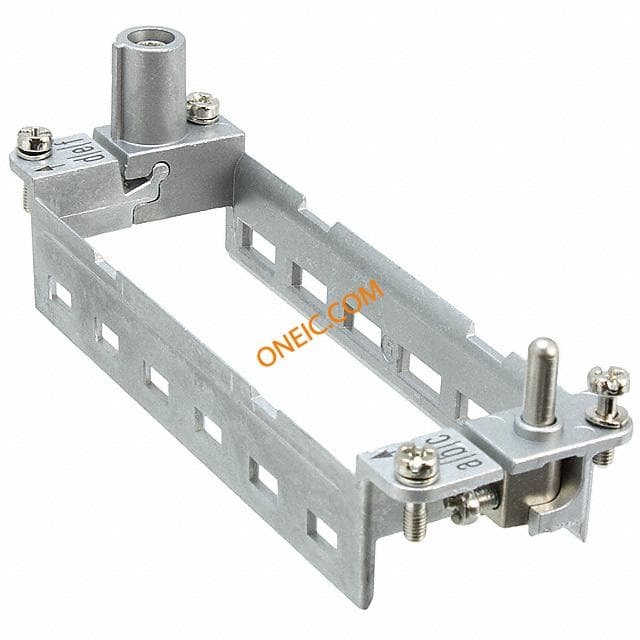

Heavy Duty Power Connectors Hinged Frame for B24 Housing, 6 Modules HEAVYCON Hinged Retaining Frame, For Panel Mounting Base HC-B 24, For 6 Modules HEAVYCON HINGED RETAINING FRAME Hinged retaining frame HC-M-MHR-A6-N HINGEDRETAININGFRAMEFOR6MODULES
