1550698
| Manufacturer | |

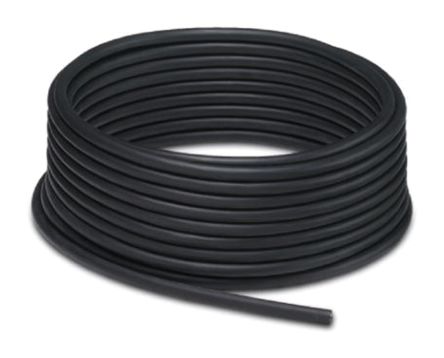

| Description | Multi-Conductor Cables SAC-8P-100.0- PVC/0,25 Cable Ring, Pvc, Black, 8-Pos., Conductor Colors White / Brown /Green / Yellow / Gray / Pink / Blue / Red, Cable Length 100 M CABLE 8POS SAC-8P-1000-PVC/025 Phoenix Contact 100m长 8 芯 24 AWG 聚氯乙烯 PVC护套 执行器/传感器电缆 |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | PLUSCON Field | Other Names | SAC-8P-100 0-PVC/0 25 |
| Product Category | Multi-Conductor Cables | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage | 300V | Voltage Rating | 300 V |
| Conductor Strand | 32 | Number of Conductors | 8 |
| DC Resistance (DCR) (Max) | 78 Ω/km | ||
Mechanical
| Color | Black | Length | 100 m |
| Cable Type | Multi-Conductor | Wire Gauge | 24 |
| Insulation Color | 黑色 | Conductor Material | Copper, Bare |
| Cross Section Shape | 0.25 mm² | Insulation Material | PVC |
| Number of Positions | 8 | Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Diameter | 0.232" (5.89mm) | Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.030" (0.76mm) | Diameter - Inside, Non-Expanded | 0.1 mm |
Environmental
| Ratings | UL Style 2464 | Fluid Type | 是 |
| Operating Temperature | -40°C ~ 80°C | ||
