1517589
| Manufacturer | |

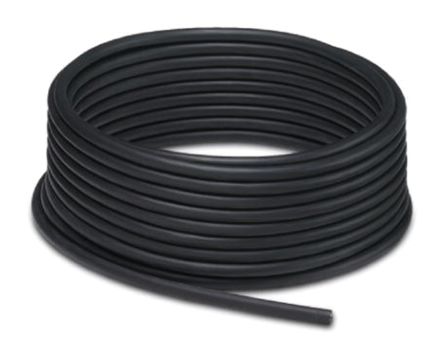

| Description | Multi-Conductor Cables SACB- 6X0.34/2XO. 75-50 PUR Sensor/Actuator Cable 8Conductors 22AWG 50m 8.2mm 300V SENSOR ACTUATOR BOX Master cable ring SACB- 6X0,34/2X0,75-50 PUR SACB-6X034/2X075-50PUR Phoenix Contact 50m长 8 芯 22 AWG 聚氨酯 PUR护套 执行器/传感器电缆 |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | PLUSCON Field | Other Names | SACB- 6X0 34/2X0 75-50 PUR |
| Product Category | Multi-Conductor Cables | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 300 V | Conductor Strand | 19, 42 |
| Number of Conductors | 8 | Voltage - Input (Min) | 300V |
Mechanical
| Length | 50 m | Weight | 5.326368 oz |
| Wire Gauge | 22 | Cable Length | 50 |
| Cable Diameter | 8.2 | Insulation Color | 黑色 |
| Size / Dimension | 22 | Conductor Material | 裸铜 |
| Cross Section Shape | 0.34 mm², 0.75 mm² | Insulation Material | PVC |
| Minimum Bend Radius | 76 mm | Number of Positions | 8 |
| Diameter - Inside, Non-Expanded | 0.1 mm, 0.15 mm | ||
Product Info
| Type | Sensor/Actuator Cable | Series | * |
Environmental
| Fluid Type | 是 | Operating Temperature | +90°C |
Documents & Media
PDF Document
