1424009
| Manufacturer | |
| Description | Modular Connectors / Ethernet Connectors VS-08-BU-RJ45/10G-F Conn RJ-45 F 8 POS IDT ST Cable Mount 8 Terminal 1 Port Cat 6 CONN MOD JACK 8P8C SHIELDED VS-08-BU-RJ45/10G-F Phoenix Contact RJ45 屏蔽 直 插座插件 |
| Category |
Business
| Tradename | PLUSCON Data | Other Names | VS-08-BU-RJ45/10G-F |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Interface | RJ45 | Voltage Rating | 50 V |
| Current Rating (Max) | 1 A | Voltage - Input (Min) | 50V |
Mechanical
| Color | Silver | Depth | 15.9mm |
| Width | 22.97mm | Height | 15.9 |
| Length | 43.95mm | LED Color | Does Not Contain LED |
| Packaging | Bulk | Shielding | Shielded |
| Orientation | Straight | Shield Type | 屏蔽 |
| Termination | IDT | Mounting Type | Cable Mount |
| Tab Direction | User Selectable | Connector Type | Jack |
| Mounting Style | Cable | Number of Rows | 1 |
| Contact Material | Bronze | Housing Material | Polycarbonate |
| Length - Overall | 22.97 | Termination Style | IDC |
| Number of Contacts | 8 | ||
Product Info
| Type | RJ-45 | Gender | F |
| Direction | 直 | USOC Codes | RJ45 |
| Category Number | Cat 6 | Number of Ports | 1 |
| Performance Category | Cat 6 | Number of Positions Loaded | 8 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | ||
Environmental
| Ratings | Cat6a | Seal Rating | IP 20 |
| Ingress Protection | IP20 | Operating Temperature | -10°C ~ 60°C |
Documents & Media
Similar Parts
1653003
Phoenix Contact
Modular Connectors / Ethernet Connectors VS-TO-OW-2-F-9010 Conn Telephone/Telecom F 16 POS SMD 16 Terminal 2 Port CONN ACCY TERMINAL OUTLET WHITE Terminal outlet VS-TO-OW-2-F-9010 VS-TO-OW-2-F-9010
1405222
Phoenix Contact
Modular Connectors / Ethernet Connectors VS-PPC-F1-RJ45- MNNA-1C-F RJ45 Panel Mounting Frame IP67 For Push-Pull Interlocking Metalwith Free Net System CONN ACCY PANEL MOUNT FRAME VS-PPC-F1-RJ45-MNNA-1C-F Phoenix Contact 面板安装框架 电缆组件 IP65, IP67
1608197
Phoenix Contact
Heavy Duty Power Connectors VS-PPC-F1-RJ45-POBK RJ45 PANEL MNT FRAME Connector Accessories Panel Mounting Frame Polyamide Black CONN ACCY PAN MOUNT FRAME BLACK VS-PPC-F1-RJ45-POBK-1R-F Phoenix Contact RJ45 面板安装框架, 使用于推挽式内部锁定，方形面板开孔

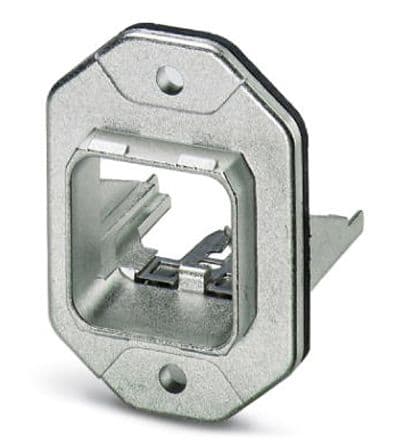

1405358
