1417074
| Manufacturer | |
| Description | DIN Rail Terminal Blocks MBK 5/E-FS/FS Conn Feed-Through Modular Terminal Blocks F 2 POS Screw 16A CONN TERM BLOCK Feed-through modular terminal block MBK5/E-FS/FS MBK5/E-FS/FS |
| Category |
Business
| Product | DIN Rail Terminal Blocks | Tradename | CLIPLINE MBK |
| Other Names | MBK 5/E-FS/FS | Product Category | DIN Rail Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 HB | ||
Electrical
| Current - UL | 5A | Voltage - UL | 300V |
| Current - IEC | 16A | Voltage - IEC | 500V |
| Voltage Rating | 500 V | Current Rating (Max) | 16 A |
| Voltage - Input (Min) | 500V | ||
Mechanical
| Color | Gray | Depth | 6.2 |
| Width | 6.2 mm | Length | 28 mm |
| Weight | 0.139685 oz | Termination | Screw |
| Number of Rows | 2 | Housing Material | Polyamide |
| Length - Overall | 28 | Terminal - Width | 6.2mm |
| Termination Style | Tab | Number of Contacts | 2 |
| Number of Positions | 4 | Material - Insulation | Polyamide (PA), Nylon, Glass Filled |
| Wire Gauge or Range - AWG | 18-20 AWG | Wire Gauge or Range - mm2 | 0.5-1mm² |
Product Info
| Type | Wire to Wire | Gender | F |
| Series | MBK | Number of Levels | 1 |
Documents & Media
Similar Parts
1204096
Phoenix Contact
Terminal Block Tools & Accessories NS 15 PERFORATED WH DIN Rail, Material Steel, Perforated, Height 5.5mm, Width 15mm DIN RAIL 15X5MM SLOTTED STEEL 2M DINRail;NS15Perforated;1=2M

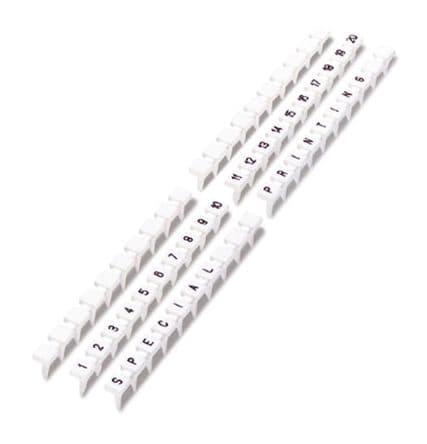

0824276
