1414129
| Manufacturer | |
| Description | DIN Rail Terminal Blocks 4.2mm MINI DBL BLOCK Conn Terminal Block F 4 POS Screw ST 17.5A CONN TERM BLK FEED THRU 4.2MM Non-Fuse DIN Rail Terminal, 17.5A, 400V, Grey ,Screw Down Termination TERMINAL BLOCK, DIN, GREY Conn;TermBlk;FeedThru;DblLevel;Screw;4;26-16AWG;4.2mm;Gray;17.5A; Phoenix Contact MTTB 系列 灰色 双层接线端子块 , 17.5A, 400 V |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Terminal Blocks |
| Product Category | DIN Rail Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | UL,CSA | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 15A | Voltage - UL | 300V |
| Current - IEC | 17.5A | Voltage - IEC | 400V |
| Voltage Rating | 400 V | Number of Poles | :2 |
| Conductor Strand | :1.5mm² | Voltage - Working | :400V |
| Current Rating (Max) | 17.5A | Voltage - Input (Min) | 400V |
Mechanical
| Color | Gray | Depth | 4.2 |
| Pitch | 1.5 mm | Width | 4.2 mm |
| Height | 41 mm | Length | 44 mm |
| Weight | 0.198769 oz | Wire Gauge | 26 → 16 AWG |
| Termination | Screw | Mounting Type | Straight |
| Terminal Type | :Screw | Connector Type | :Terminal Block, DIN Rail |
| Contact Finish | :- | Mounting Style | DIN Rail |
| Number of Rows | 4 | Contact Material | :- |
| Housing Material | Polyamide | Length - Overall | 44 |
| Primary Material | MiniDINRail | Stripping Length | 6mm |
| Terminal - Width | 4.2mm | Pin Hole Diameter | 4.2mm |
| Termination Style | Screw | Color - Connectors | Grey |
| Number of Contacts | 4 | Number of Positions | 4 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm2 | 0.14-1.5mm² | 1st Connector Mounting Type | :DIN Rail |
Product Info
| Type | Terminal Block | Level | DoubleLevel |
| Gender | F | Series | MTTB |
| Industry Aliases | MTTB 1, 5 | Number of Levels | 2 |
| Base Product Number | MTTB1,5 | Compatible Sensor Size (Max) | :1.5mm² |
Documents & Media
Similar Parts
0801733
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Perforated, Height 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINRail;Steel;Silver;7.50mm;35mm;2m
1205037
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers SM. SCREWDRIVER Hardware Tools, ScrewDriver, Bladed, Matches All Screw Terminal Blocks Up To 1.5mm Sqaure SCREWDRIVER SLOT 0.4X2.5MM 6.34" Tool, Driver ScrewDriver;160mm;0.4mm;2.5mm;80mm;30g
3002681
Phoenix Contact
ターミナルブロック・ツールとアクセサリ SPACER PLATE GRY Cover, Width 1.5mm, Color Blue CONN TERM BLK SPACER PLATE 4.2MM Phoenix Contact 3002681 Spacer Plate Terminal Block, Series: DP-MTTB Terminal Block Tools & Accessories SPACER PLATE GRY SpacerPlate;TermBlk;Gray;44mmL;2mmW
0803579
Phoenix Contact
Terminal Block Tools & Accessories 4.2mm 10x10 STRIPS CONN ACC MARKER STRIP UNPRINTED Phoenix Contact 0803579 Marker Card Terminal Block, Series: ZBFM Connector Accessories Flat Zack Marker Sheet Polyamide White Zackmarkersheet,flat,unprinted:100-section,10strips Phoenix Contact ZBFM 系列 标记卡
0800886
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Bracket Polyamide Gray CONN TERM BLK END BRACKET 9.5MM EndClamp;TermBlk;Gray;48.6mmL;9.5mmW;32.8mmH Holder; grey; Width:9.5mm; TS35; Ht:32.8mm; L:48.6mm Phoenix Contact E/NS 35 N 系列 端夹
3001624
Phoenix Contact
Terminal Block Tools & Accessories 10POS. FIXED BRIDGE Conn Jumper M 10 POS ST CONN TERM BLK FIXED BRIDGE Phoenix Contact 3001624 Fixed Bridge Terminal Block, Series: FBRN CONNECTION BAR, FBRN-10-4N FixedBridgeBar;TermBlk;Universal;10;Silver Phoenix Contact FBRN 系列 固定桥接
0800268
Phoenix Contact
Terminal Block Tools & Accessories ZBFM 4/WH CONN ACC MARKER STRIP PREPRINT Zack Strip, Flat, 100-Section, Labeled Horizontally With Consecutive Numbers From 1-100, For All Terminal Blocks, Pitch 4.2mm, Color White
1421659
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET FOR NS15 Connector Accessories End Clamp Polyamide Gray CONN TERM BLK END BRACKET 5.2MM Phoenix Contact 1421659 End Clamp Terminal Block, Series: E/MK EndClamp;TermBlk;Gray;21.2mmL;6mmW;18mmH

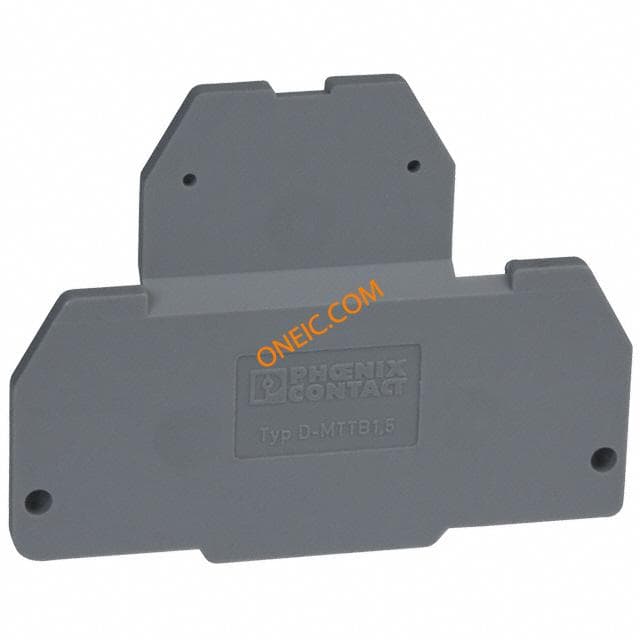

3002665
