0719016
| Manufacturer | |
| Description | DIN Rail Terminal Blocks UK 1.5N OG FEED THROUGH MOD TERM BLOCK Conn Universal Terminal Blocks 2 POS Screw Conn;TermBlk;FeedThru;Screw;2;0.14-1.5sq.mm;26-16AWG;4.2mmW;Orange |
| Category |
Business
| Tradename | CLIPLINE UK | Product Category | DIN Rail Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94 V-2 |
Electrical
| Current - UL | 15A | Voltage - UL | 300V |
| Current - IEC | 17.5A | Voltage - IEC | 500V |
| Voltage Rating | 500 V | Current Rating (Max) | 17.5 A |
Mechanical
| Color | Orange | Width | 4.2 mm |
| Height | 47 mm | Length | 42.5 mm |
| Weight | 0.203531 oz | Wire Gauge | 26 |
| Stripping Length | 7mm | Terminal - Width | 4.2mm |
| Termination Style | Screw | Number of Contacts | 2 |
| Number of Positions | 2 | Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 14-30 AWG | Wire Gauge or Range - mm2 | 0.14-1.5mm² |
Product Info
| Type | Feed Through | Series | UK |
| Number of Levels | 1 | ||
Documents & Media
Similar Parts
3001572
Phoenix Contact
Terminal Block Tools & Accessories FBRN 5-4 N Fixed Bridge, 5-Pos. CROSS CONNECTOR/JUMPER 5POS Cross connector/jumper for modular terminal block, Number of positions: 5, Color: aluminum FBRN5-4N
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
1201442
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Clamp Polyamide Gray DINRAIL END BRACKET UNIVERSAL Phoenix Contact 1201442 End Clamp DIN Rail, Series: E/UK EndClamp;TermBlk;Gray;50.8mmLx9.5mmWx35.3mmH Holder; grey; Width:9.5mm; TS32,TS35; Ht:35.3mm; L:50.5mm Phoenix Contact E/UK 系列 端夹
0805001
Phoenix Contact
Terminal Block Tools & Accessories 4.2mm BLANK STRIPS ZB-4 Connector Accessories Zack Strip Polyamide White CONN ACC MARKER STRIP UNPRINTED ZBMarkingStrip;TermBlk;4mmpitch;Blank Marker; Width:4mm; for labelling by user Zack Marker Strip
3001569
Phoenix Contact
Terminal Block Tools & Accessories FBRN 4-4 N Conn Jumper M 4 POS ST BRIDGE TERM BLOCK 4POS FBRN 4-4 N Fixedbridge,Numberofpositions:4,Color:aluminum Fixed bridge, Number of positions 4
3001585
Phoenix Contact
Terminal Block Tools & Accessories Cross conn/jumper for MOD TERM block Conn Jumper M 6 POS ST CROSS CONNECTOR/JUMPER 6POS Fixedbridge,Numberofpositions:6,Color:aluminum
3001624
Phoenix Contact
Terminal Block Tools & Accessories 10POS. FIXED BRIDGE Conn Jumper M 10 POS ST CONN TERM BLK FIXED BRIDGE Phoenix Contact 3001624 Fixed Bridge Terminal Block, Series: FBRN CONNECTION BAR, FBRN-10-4N FixedBridgeBar;TermBlk;Universal;10;Silver Phoenix Contact FBRN 系列 固定桥接
3022218
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories Snap-on End Bracket Polyamide Gray END BRACKET FOR 35 MM DIN RAIL Phoenix Contact 3022218 End Bracket Terminal Block, Series: CLIPFIX End bracket CLIPFIX 35 EndBracket;TermBlk;SnapOn;57mmL;9.5mmW
3022276
Phoenix Contact
Terminal Block Tools & Accessories CLIPFIX 35-5 Connector Accessories End Clamp Polyamide Gray END BRACKET TERM BLOCK SNAP ON Phoenix Contact 3022276 End Bracket Terminal Block, Series: CLIPFIX END CLAMP, DIN RAIL MOUNT EndBracket;TermBlk;SnapOn;35mmH;48.5mmL;5.5mmW Holder Phoenix Contact CLIPFIX 系列 端子架
1201714
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Unperforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M DIN rail,unperforated,steel,35x15x2000mm DINRail;Steel;Chromated;15mm;35mm;2Meterlength
0801704
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN RAIL 35X7.5MM UNSLOT ALUM 2M Din Rail, Material Aluminum, Unperforated, Height 7.5mm, Width 35mm, Length 2 M DINRail,Aluminum,unperforated,height7.5mm,width35mm,2meterslength
0801681
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Unperforated, HeIGHt 7.5mm, Width 35mm, Length 2M DIN RAIL 35MMX7.5MM UNSLOT 2M DIN rail,unperforated,steel,35x7.5x2000 DINRail;Steel;Chromated;7.50mm;35mm;2meterlength
1201002
Phoenix Contact
Mounting Hardware NS32 PERF 2 METER PRICED PER METER G-Profile DIN Rail, Material Steel, Perforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32MMX15MM SLOTTED 2M Accessories, Zack strip, unprinted, strips with 10 labels for individual labeling with M-PEN or CMS system, for terminal block width: 6.2 mm, color: white G-profileDINrail,Steel,perforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 多孔型, 2000mm x 32mm x 15mm
3001608
Phoenix Contact
Terminal Block Tools & Accessories FBRN 8-4 N Conn Jumper M 8 POS ST CROSS CONNECTOR/JUMPER 8POS Cross connector/jumper for modular terminal block, Number of positions: 8, Color: aluminum Fixedbridge,Numberofpositions:8,Color:aluminum

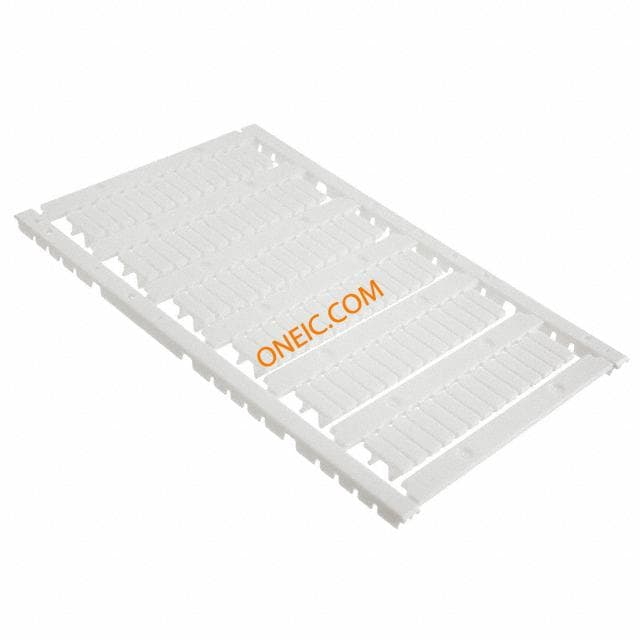

0828732
