0707280
| Manufacturer | |
| Description | Pluggable Terminal Blocks DFK-MSTB 2 5/ 6-G-5 Conn Wire to Wire HDR 6 POS 5.08mm Solder Lug ST Wall Mount TERM BLK HEADER FEED-THRU 5.08MM Non-Fused Terminal Block Panel Mount 6 Way, Solder, 320V Phoenix Contact 6 路 无熔丝端子块, 面板安装, 焊接端接, 320 V |
| Category |
Business
| Product | Headers | Lead Time | 12 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current - UL | 10A | Voltage - UL | 300V |
| Voltage Rating | 320 V | Current Rating (Max) | 12A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 29.5 |
| Pitch | 0.200" (5.08mm) | Width | 2.000" (50.80mm) |
| Height | 17.5 | Weight | 0.245154 oz |
| Material | Nylon | Termination | Solder Lug |
| Housing Color | Green | Mounting Type | Straight |
| Contact Finish | Tin | Mounting Style | Panel / Box - Feed Through |
| Number of Rows | 1 | Panel Thickness | 0.020 ~ 0.158" (0.5 ~ 4.0mm) |
| Housing Material | Polyamide | Length - Overall | 50.8 |
| Panel Mount Type | Screw Mount - Front Flange | Termination Rows | 焊接 |
| Number of Contacts | 6 | Rear Panel Wire Connection | Quick Connect - 0.110" (2.80mm), Solder Eyelet |
| Front Panel Wire Connection | Header, Male Pins | Number of Positions/Bay/Row | 6 |
Product Info
| Type | Wire to Wire | Gender | HDR |
| Series | DFK-MSTB | Features | Lock Opening |
| CAD Drawing | 3D CAD Model | Number of Lines | 6 |
| Industry Aliases | DFK-MSTB 2, 5/ 6-G-5, 08 | Number of Levels | 1 |
| Positions Per Level | 6 | ||
Documents & Media
Similar Parts
1755477
Phoenix Contact
Terminal Block Tools & Accessories MSTB-BL Connector Accessories Cap TERMINAL BLOCK KEYING CAP GREEN Keying cap, for forming sections, plugs onto header pin, green insulating material Keying Cap, For Forming Sections, Plugs Onto Header Pin MSTB-BL

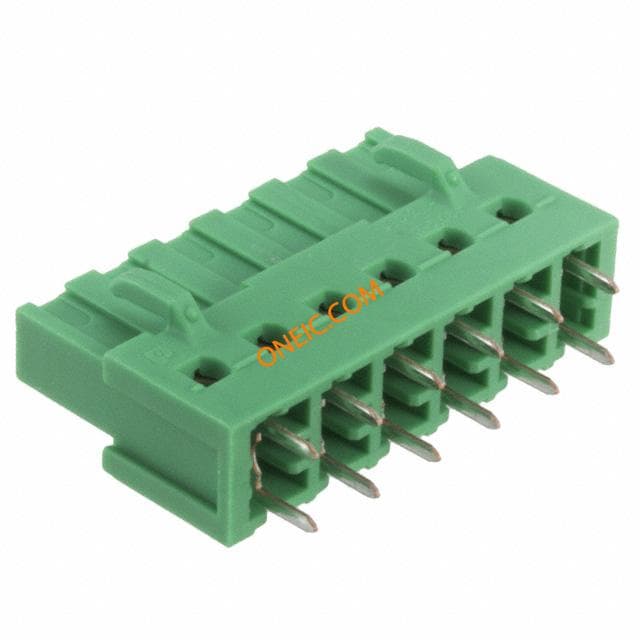

1785984
Phoenix Contact
Pluggable Terminal Blocks 6P 5.08MM VERTICAL Conn Wire to Board HDR 6 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Inverted hdr,5.08mm pitch,vertical,6way ICV25/6-G-508 Phoenix Contact COMBICON ICV 系列 5.08mm节距 6路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A , 通孔

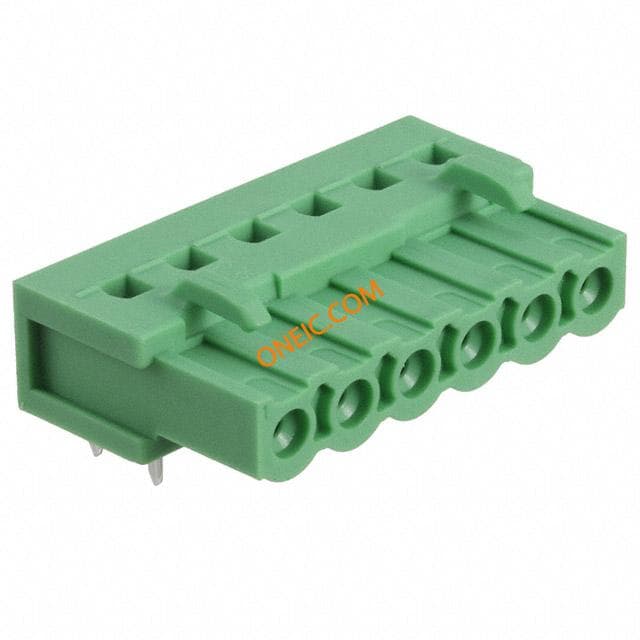

1786446
Phoenix Contact
Pluggable Terminal Blocks IC 2.5/ 6-G-5.08 Conn Socket Strip SKT 6 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM Phoenix Contact 5.08mm 6 Way 1 Row Right Angle PCB Socket Through Hole Socket Strip Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;6Pole;5.08mmPitch;COMBICON Phoenix Contact 6路 直角 5.08mm节距 通孔 印刷电路板插座, 插座板
1734401
Phoenix Contact
Terminal Block Tools & Accessories CODING ELEMENT PRICED PER CLIP Connector Accessories Coding Element Inserted Into The Recess In The Header Or The Inverted Plug Red TERM BLOCK HEADER CODING ELEMENT CR-MSTB CODINGSECTION,REDINSULATINGMATERIAL
0708263
Phoenix Contact
Terminal Block Tools & Accessories HDR HDWR FOR 5.08mm ORDER QTY 2 PER HDR Connector Accessories Screw Set HDWR SET 3X10 SCREW/WASHER/NUT
5030172
Phoenix Contact
Terminal Block Tools & Accessories LOCKING LATCH Connector Accessories Locking Latch Red LOCKING LATCH RED MSTB PCB terminal stop notches DFK-MSTB-R

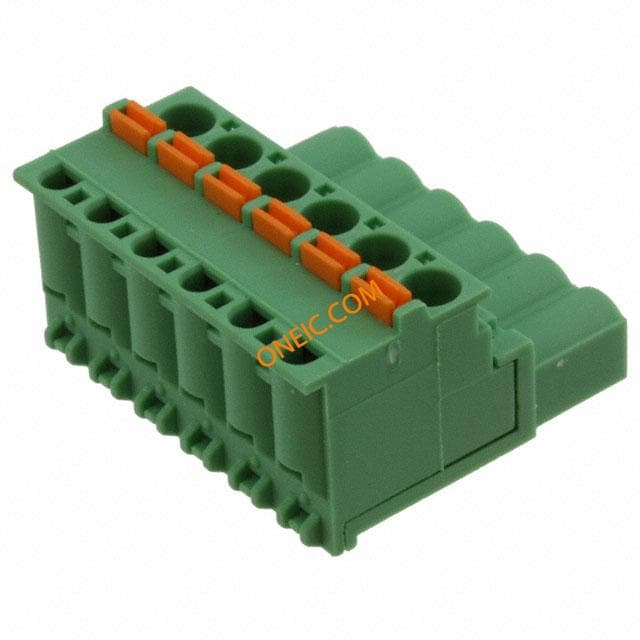

1873692
