0442079
| Manufacturer | |
| Description | DIN Rail Terminal Blocks 8.2mm UNIV. GRND Conn Terminal Block F 2 POS Screw ST CONN TERM BLK GROUNDING 8.2MM Earth terminal,6sq.mm 57A TERMINAL BLOCK, DIN, 6MM, GRN/YEL Conn;TermBlk;DINRail;Grd;Screw;.2-10sq.mm;24-AWG;8.2mmW;Green-YL Splice terminal: rail; ways:1; terminals:2; yellow-green Phoenix Contact 绿色/黄色 2 路 接地端子块 USLKG 6 N, 螺钉拧紧端接 24 → 8 AWG, 长 42.5mm |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Terminal Blocks |
| Product Category | DIN Rail Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 750 V | Number of Poles | :1 |
| Conductor Strand | :6mm² | Connector Impedance | rail |
| Current Rating (Max) | 57A | ||
Mechanical
| Color | Green, Yellow | Depth | 8.2 |
| Pitch | :8.2mm | Width | 8.2mm |
| Height | 54.5mm | Length | 42.5mm |
| Weight | 1 oz | Wire Gauge | 24 → 8 AWG |
| Termination | Screw | Mounting Type | Straight |
| Terminal Type | :Screw | Connector Type | :Terminal Block, DIN Rail |
| Contact Finish | :- | Mounting Rails | TS32, TS35 |
| Mounting Style | DIN Rail | Number of Rows | 1 |
| Contact Material | :- | Housing Material | Polyamide |
| Length - Overall | 42.5 | Package Quantity | 50 |
| Stripping Length | 10mm | Terminal - Width | 8.2mm |
| Termination Style | Screw | Color - Connectors | :Yellow / Green |
| Number of Contacts | 2 | Number of Positions | 2 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 8-26 AWG |
| Wire Gauge or Range - mm2 | 0.2-10mm² | 1st Connector Mounting Type | :DIN Rail |
| Number of Positions/Bay/Row | 2 | ||
Product Info
| Spg | 50 | Type | Terminal Block |
| Gender | F | Series | :USLKG 6 |
| Number of Units | 1 | Industry Aliases | USLKG 6 N |
| Number of Levels | 1 | ||
Documents & Media
Similar Parts
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
1052002
Phoenix Contact
Unspecified Tools & Accessories 8.2mm BLANK STRIPS Terminal Block Tools & Accessories 8.2mm BLANK STRIPS Connector Accessories Zack Marker Strip 10 Section Unprinted For Individual Labeling With M-PEN White Polyamide CONN ACC MARKER STRIP UNPRINTED Phoenix Contact 1052002 Marker Strip Terminal Block, Series: ZB ZACK STRIP, UNPRINTED ZBMarkingStrip;TermBlk;8.2mmpitch;Blank Marker; Width:8mm; for labelling by user Phoenix Contact ZB 系列 标记条
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
0825011
Phoenix Contact
Terminal Block Tools & Accessories ZB 8 CUS TERM BLOCK MARKING LABEL Terminal Block Tools & Accessories ZB 8 CUS 1 strip is 1 piece ZB8CUS
0818072
Phoenix Contact
Unspecified Tools & Accessories UC-TM 8 UNICARD 56 SECTION Connector Accessories Terminal Block Marker Polyamide White UNICARD SHEETS 1 ROLL=56 LABELS Terminal Block Tools & Accessories UC-TM 8 UNICARD 56 SECTION MarkerCard;TermBlk;8.2mm;56labelspercard;white MarkerforTerminalBlocks;Sheet;White;Unlabeled;UC-TM8 Phoenix Contact UC-TM 8 系列 端子标记
1206586
Phoenix Contact
取り付け用金具類 NS 35/15 ZN UNPERF 2000MM DIN Rail, Material Galvanized, Un-Perforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware NS 35/15 ZN UNPERF 2000MM DINrail,material:Galvanized,unperforated,2MeterLength DIN 导轨 顶帽式, NS35 无孔型, 2000mm x 35mm x 15mm
1007235
Phoenix Contact
Terminal Block Tools & Accessories SBS 8: UNBEDRUCKT Connector Accessories Marker Card Cellulose Acetate White MARKER CARDS TERM BLOCK WHITE MARKERCARDSFORTERMINALBLOCKSWHITE
1201895
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Copper, Unperforated, 1.5mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35MMX15MM UNSLOT 2M NS35/15CUUNPERF2000MM
1201714
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Unperforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M DIN rail,unperforated,steel,35x15x2000mm DINRail;Steel;Chromated;15mm;35mm;2Meterlength
0801704
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN RAIL 35X7.5MM UNSLOT ALUM 2M Din Rail, Material Aluminum, Unperforated, Height 7.5mm, Width 35mm, Length 2 M DINRail,Aluminum,unperforated,height7.5mm,width35mm,2meterslength
0801762
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN RAIL 35MMX7.5MM UNSLOT 2M Din Rail, Material Copper, Unperforated, HeIGHt 7.5mm, Width 35mm, Length 2 M DINrail,Copper,unperforated,height7.5mm,width35mm,eachpiece2MTR
1206421
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Galvanized, Perforated, HeIGHt 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINrail,Galvanized,perforated,height7.5mm,width35mm,eachpiece2MTRS
1201730
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Perforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35MMX15MM SLOTTED 2M MountingRail,Perforated,35x15mm,eachpieceis2meters
0801681
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Unperforated, HeIGHt 7.5mm, Width 35mm, Length 2M DIN RAIL 35MMX7.5MM UNSLOT 2M DIN rail,unperforated,steel,35x7.5x2000 DINRail;Steel;Chromated;7.50mm;35mm;2meterlength
1201002
Phoenix Contact
Mounting Hardware NS32 PERF 2 METER PRICED PER METER G-Profile DIN Rail, Material Steel, Perforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32MMX15MM SLOTTED 2M Accessories, Zack strip, unprinted, strips with 10 labels for individual labeling with M-PEN or CMS system, for terminal block width: 6.2 mm, color: white G-profileDINrail,Steel,perforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 多孔型, 2000mm x 32mm x 15mm
1206434
Phoenix Contact
Mounting Hardware NS 35/ 7,5 ZN UNPERF 2000MM DIN Rail, Material Galvanized, Un-Perforated, Height 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM UNSLOT 2M NS35/75ZNUNPERF2000MM

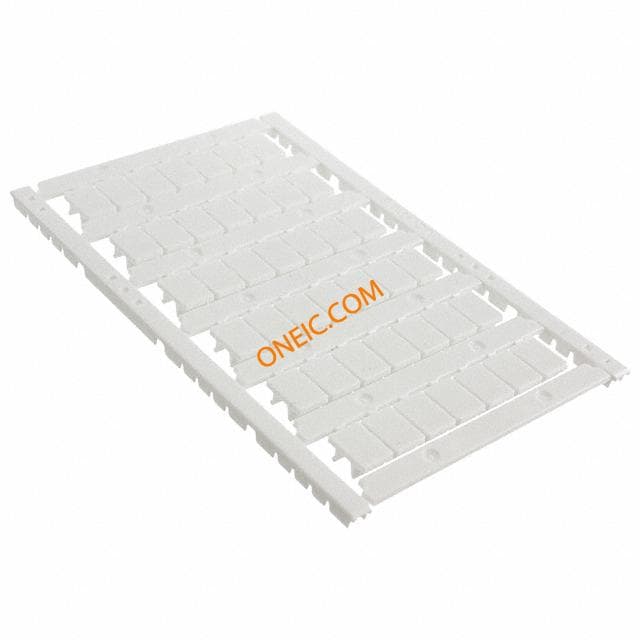

0828740
