PF2000 11026109000
| Manufacturer | |

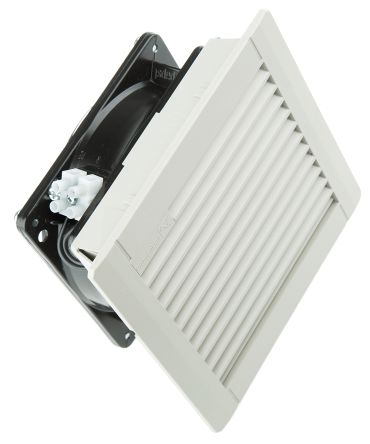

| Description | IP55 snap fit filter fan,36cu.m/h 230Vac Pfannenberg IP55 过滤器风扇 , 150 x 150mm, 36m³/h, 230 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Noise | 43dB | Noise Figure | 43dB |
| Power - Input | 19W | Voltage - Supply | 230 V ac |
| Voltage - Supply (Min) | AC | Power - Average Forward | 19W |
| Current - Input Bias (Max) | 720mA | Voltage - Supply, Dual (V+/-) | 交流 |
Mechanical
| Width | 150mm | Flow Rate | 36m³/h |
| Depth - Overall | 73mm | Height (Inches) | 150mm |
| Width - Overall | 150 x 150mm | Dimensions - Overall | 150 x 150mm |
| Height - Seated (Max) | 73mm | ||
Environmental
| Air Flow - Medium | 36m³/h | Ingress Protection | IP55 |
