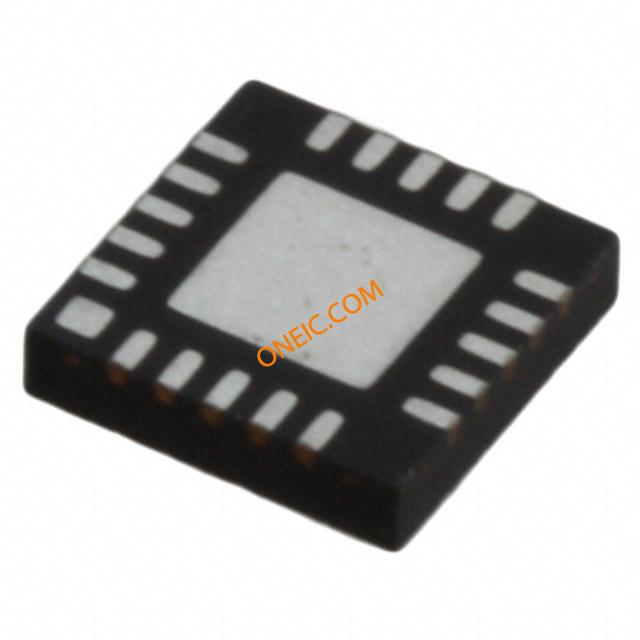

4257-52
| Manufacturer | |
| Description | IC RF SWITCH SPDT 50 OHM 20-QFN RF Switch SPDT 0MHz to 3GHz 64dB 20-Pin QFN EP T/R |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 1046-1010-1 | Standard Package | 3,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
Electrical
| IIP3 | 55dBm (typ) | P1dB | 31dBm (typ) IP1dB |
| Circuit | SPDT | Frequency | 3000 MHz |
| Impedance | 50 Ohm | Isolation | 44dB @ 3GHz |
| Insertion Loss | 1.4 dB | Frequency - Max | 3GHz |
| Voltage - Supply | 2.7 V ~ 3.3 V | Frequency - Output 2 | DC |
| Insertion Loss (Max) | 1.2dB @ 3GHz | ||
Mechanical
| Packaging | Tape & Reel (TR) | Package / Case | 20-VFQFN Exposed Pad |
| Package Cooled | QFN EP | Number of Positions | 20 |
| Supplier Device Package | 20-QFN (4x4) | ||
Product Info
| RF Type | General Purpose | Topology | Absorptive |
| Number of Switches | 5 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
