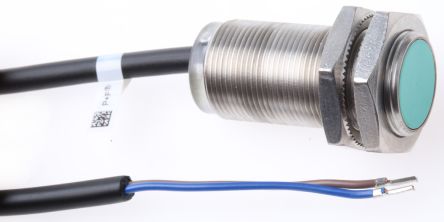

NCB5-18GM40-Z0
| Manufacturer | |
| Description | 5mm Barrel Inductive Proximity Sensor, M18 x 1, 100mA, 5 to 60V dc, IP67 M182WIREN/O Pepperl + Fuchs 常开 电感式传感器 5 mm Detection Range, 柱体 40mm length, 5 → 60 V 直流, IP67 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Protection Features | Yes | ||
Electrical
| Output Type | 常开 | Voltage Rating | 60V |
| Voltage - Supply | 5 → 60 V dc | Current - Switching | 100 mA |
| Overload Protection | 是 | Reverse Polarity Protection | 是 |
| Voltage - DC Spark Over (Nom) | 60V | Current - Short Circuit Rating (SCCR) | Yes |
Mechanical
| Length | 40mm | Thread Size | M18 x 1 |
| Mounting Type | Flush | Terminal Type | Wire Lead |
| Connector Type | 导线 | Housing Material | Stainless Steel |
| Size / Dimension | 40 x 18 mm | Supplier Device Package | Barrel |
Product Info
| Style | 柱体 | ||
Environmental
| Seal Rating | IP67 | Operating Range | 5 mm |
| Ingress Protection | IP67 | Detection Capability | 5 mm |
| Operating Temperature | +70°C | ||
