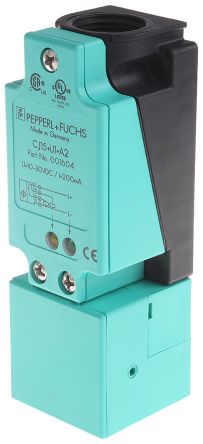

CJ15+U1+A2
| Manufacturer | |
| Description | 15mm Capacitive Proximity Sensor, PNP, 200mA, IP65 VARIKONTDCPOWERED Pepperl + Fuchs 电容式传感器 15mm length 118mm PNP supply voltage 10 → 30 V 直流 IP65 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Protection Features | Yes | ||
Electrical
| Output Type | PNP | Voltage Rating | 30V |
| Voltage - Supply | 10 → 30 V dc | Current - Switching | 200 mA |
| Overload Protection | 是 | Frequency - Switching | 0 → 10 Hz |
| Reverse Polarity Protection | 是 | Voltage - DC Spark Over (Nom) | 30V |
| Current - Short Circuit Rating (SCCR) | Yes | ||
Mechanical
| Depth | 40mm | Width | 40mm |
| Length | 118mm | Terminal Type | Screw |
| Connector Type | 螺钉 | Housing Material | PBT |
| Size / Dimension | 118 x 40 x 40 mm | Supplier Device Package | Block |
Product Info
| Style | 块状 | ||
Environmental
| Seal Rating | IP65 | Operating Range | 15mm |
| Ingress Protection | IP65 | Detection Capability | 15 mm |
| Operating Temperature | +70°C | ||
