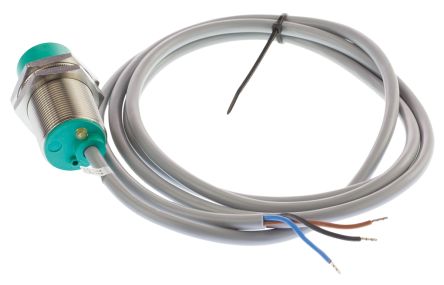

CCN15-30GS60-E2
| Manufacturer | |
| Description | Sensor, capacitive, M30, 15mm PNP NO SS Sensor,Capacitive,15mmRange,10-60VDC,PNP,NO,4Pin,2mCable,PVC,189960 Capacitive sensor 0...15 mm 10...60 VDC Make contact (NO), CCN15-30GS60-E2, Pepperl+Fuchs Pepperl + Fuchs 电容式传感器 15mm length 60mm PNP supply voltage 10 → 60 V 直流 IP67 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | Protection Features | Yes |
Electrical
| Output | Make contact (NO) | Output Type | PNP |
| Load Current | 200 mA | Voltage Rating | 60V |
| Voltage - Supply | 10 → 60 V dc | Current - Switching | 200 mA |
| Overload Protection | 是 | Frequency - Switching | 0 → 10 Hz |
| Voltage - Supply (Min) | 10...60 VDC | Reverse Polarity Protection | 是 |
| Voltage - DC Spark Over (Nom) | 60V | Current - Short Circuit Rating (SCCR) | Yes |
| Voltage - Protection Level (VP) (2416) | IP 67 | ||
Mechanical
| Depth | 60mm | Length | 60mm |
| Thread Size | M30 x 1.5 | Terminal Type | Pre-Wired |
| Connector Type | Pre-Wired | Mounting Style | Non Flush |
| Housing Material | Stainless Steel | Panel Mount Type | not flush |
| Size / Dimension | 30 (Dia.) x 60 mm | Supplier Device Package | Barrel |
| Diameter - Outside, Non-Expanded | M30 x 60 | ||
Product Info
| Form | M30 | Style | 柱体 |
| Connection Method | Cable 2 m, PVC | ||
Environmental
| Seal Rating | IP67 | Operating Range | 15 mm |
| Switching Cycles | 0...15 mm | Ingress Protection | IP67 |
| Detection Capability | 15 mm | Operating Temperature | +70°C |
