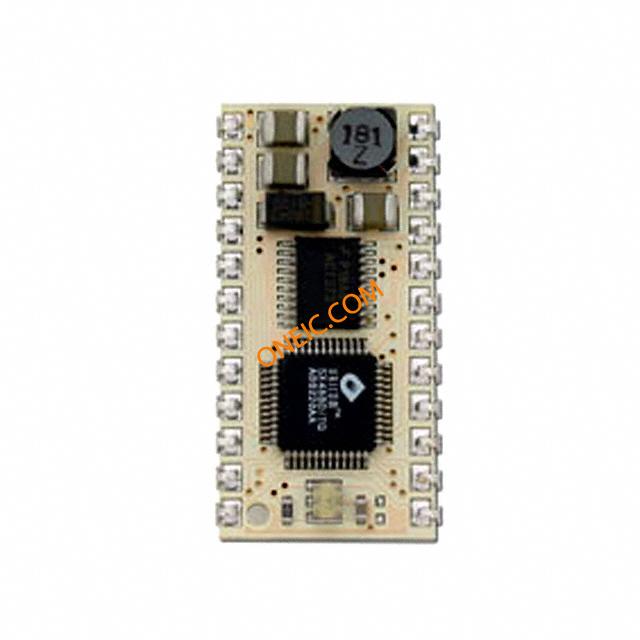

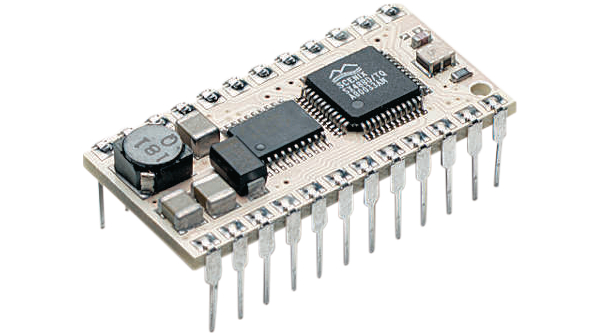

JS1-IC
| Manufacturer | |
| Description | Single Board Computers Javelin Stamp Module MODULE BASIC STAMP JAVELIN Microcontroller module 8 Bit DIL-24, JS1-IC, Parallax |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | Q1349003 | Product Category | Single Board Computers |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| RAM Size | 32KB | Frequency | 25 MHz |
| Interface | Serial | Memory Size | 32 kB |
| Memory Type | RAM | Number of I/O | 16 + 2×RS232 |
| Power - Input | 5...15 VDC | Clock Frequency | 25 MHz |
| Voltage - Supply | 5 V to 24 V | Power - Average Forward | 400 mW |
Mechanical
| Size | 1.2" x 0.6" (30mm x 15mm) | Weight | 0.191890 oz |
| Connector Type | 24-DIP | Package / Case | DIL-24 |
| Size / Dimension | 31.5 mm x 15.24 mm x 11.43 mm | Number of Cores/Bus Width | 8 Bit |
Product Info
| Type | Ubicom SX48AC | Series | Javelin |
| Flash Size | 32KB EEPROM | Form Factor | Javelin Stamps |
| Battery Series | No | Core Processor | SX48AC |
| Module/Board Type | MPU Core | ||
Environmental
| Operating Temperature | + 70 C | ||
