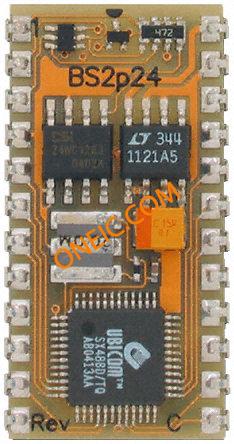

BS2P24-IC
| Manufacturer | |
| Description | Single Board Computers BASIC STAMP 2P24 BS2P24-IC, Microcontroller BASIC Stamp 2 20MHz 16kb EEPROM, 128B RAM, 24-Pin PDIP Basic Stamp 2P24 8 Bit 24-pin module, BS2P24-IC, Parallax |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Single Board Computers | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| RAM Size | 128 B | Core Type | BASIC Stamp 2 |
| Frequency | 20 MHz | Interface | Serial |
| Memory Size | 128 B | Memory Type | RAM |
| Number of I/O | 0 | Power - Input | 5...12 VDC |
| Voltage Rating | 5.5 → 12 V | Frequency - Max | 20MHz |
| Voltage - Supply | 5 V to 12 V | Number of Channels | 0 |
| Program Memory Size | 16 kB | Program Memory Type | EEPROM |
| Power - Average Forward | 200 mW | ||
Mechanical
| Width | 16mm | Height | 3.81mm |
| Length | 30mm | Weight | 0.015873 oz |
| Mounting Type | Through Hole | Package / Case | 24-pin module |
| Package Cooled | PDIP | Size / Dimension | 31 mm x 16 mm x 9 mm |
| Number of Positions | 24 | Number of Cores/Bus Width | 8 Bit |
Product Info
| USB | 0 | Type | Ubicom SX48AC |
| Form Factor | BASIC Stamps | Battery Series | No |
| RF Family/Standard | BASIC Stamp 2 | ||
Environmental
| Operating Temperature | + 70 C | ||
